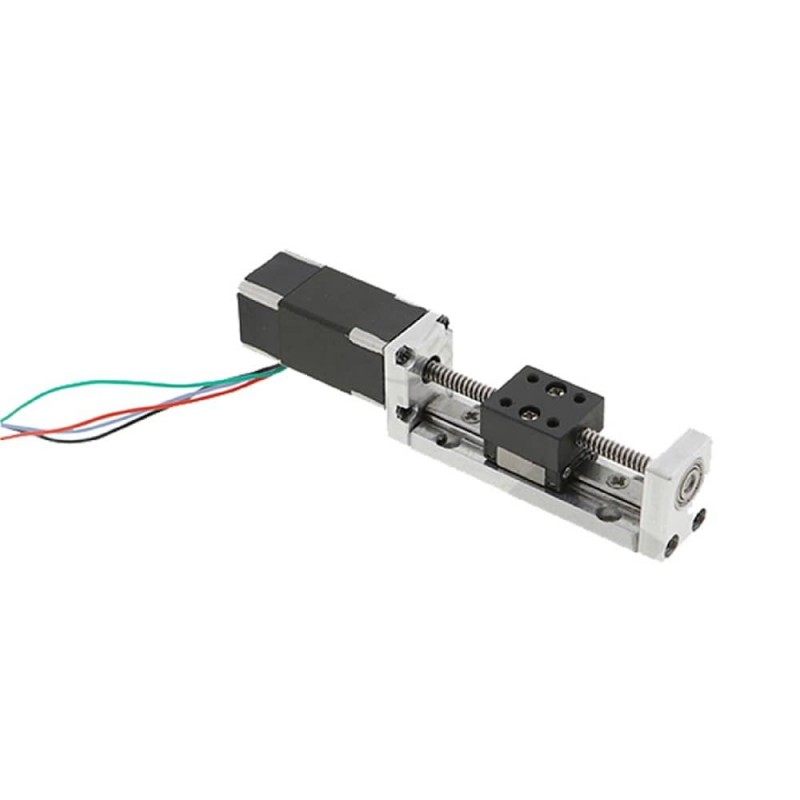

Size 14mm NEMA 6 Linear Actuator Stepper Motor 32mm Stack Lead 1mm Slide Guide Rail Travel 30mm
- Part Number: 14LS32-0304HT-30L1
- Lead Time: In Stock
- Unit Price: US $185.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
Size 14mm NEMA 6 Linear Actuator Stepper Motor 32mm Stack Lead 1mm Slide Guide Rail Travel 30mm
Electrical Specification
- Manufacturer Part Number: 14LS32-0304HT-30L1
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Rated Current/phase: 0.3A
- Phase Resistance: 22ohms
- Inductance: 4.2mH
- Driving Voltage: 12-24V

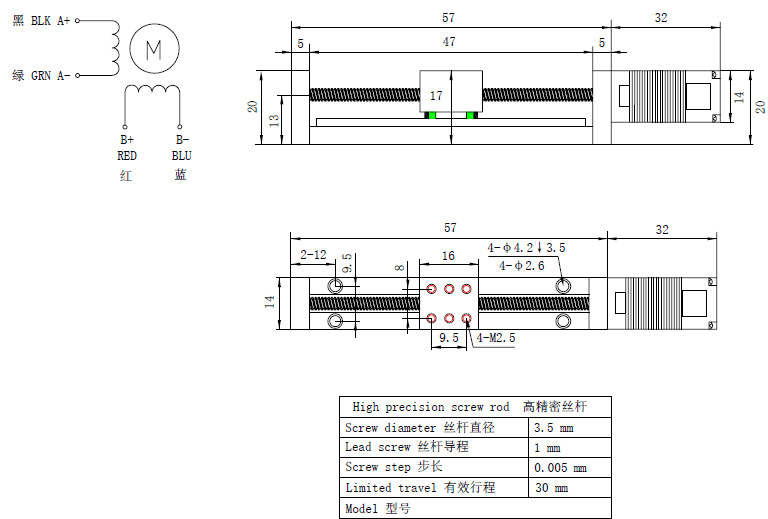

Physical Specification
- Frame Size: 14x14mm
- Body Length: 32mm
- Travel Distance: 30mm
- Lead Screw Diameter: Φ3.5mm
- Lead/Revolution: 0.005mm
- Lead/Step: 1.0mm
- Number of Leads: 4
- Lead Length: 300mm
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 14LS32-0304HT-30L1 |
| Product Type | Linear Actuator Module |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.005 |
| Rated Current(A) | 0.3 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 14x14 |
| Stack Length(mm) | 32 |
| Lead Screw Specification | |
| Stroke(Travel) Distance(mm) | 30 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Travel/Revolution(mm) | 1.0 |
| Lead Travel/Step(mm) | 0.005 |
