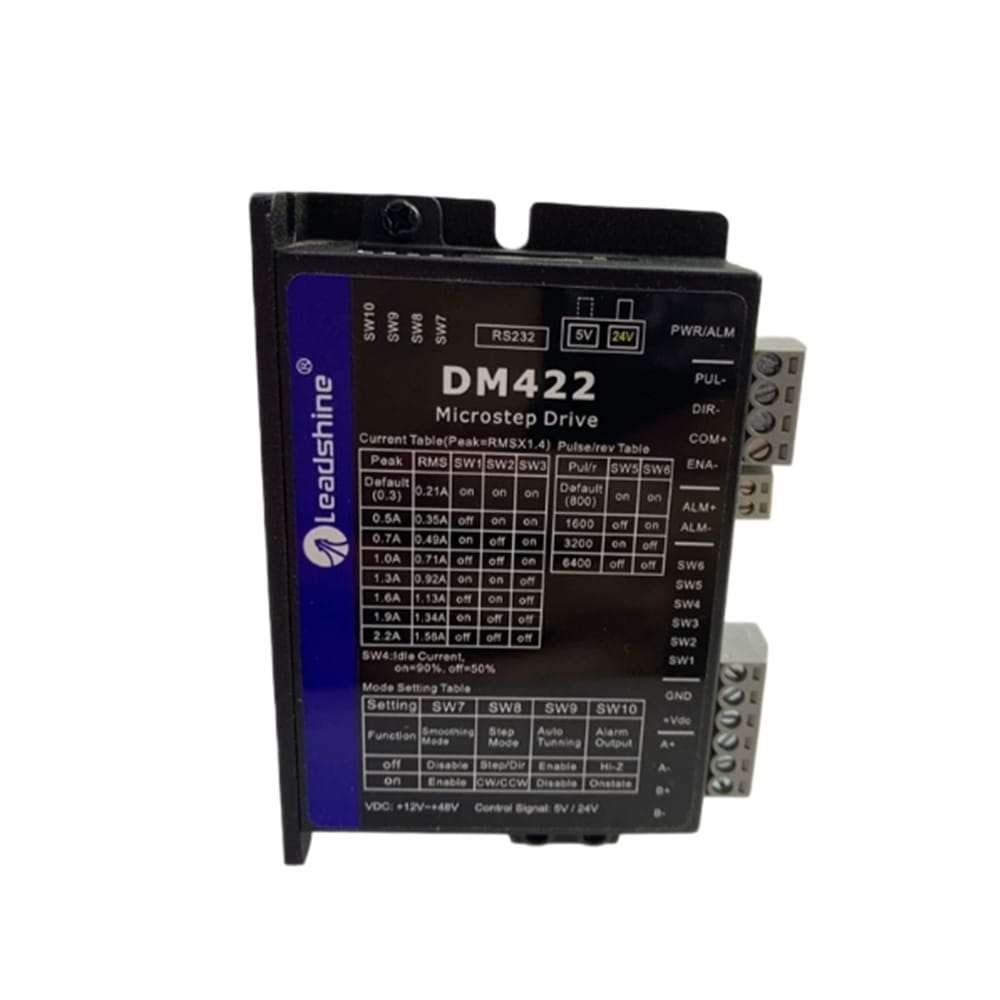

LEADSHINE DM422 Digital Stepper Motor Drive 0.3-2.2A 20-50VDC RS232 Port
- Part Number: DM422
- Lead Time: In Stock
- Unit Price: $45.00
- Sales: 16
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive DM422 is definitely capable of powering 2 phase hybrid stepper motors of NEMA 6, 8, 10, 11, 14, 16 and 17. It provdes a input voltage 20-50VDC and output current 0.3-2.2A.
Electrical Specifications:
- Brake Port Interface
- RS232 debugging interface
- Pulse & Direction or CW/CCW(double pulse) control
- Protections for over voltage, over current, etc
- Logic Input Voltage: 5V/24V
- Output Current: 0.3-2.2A(1.57RMS)
- Input Voltage: 20-50VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃

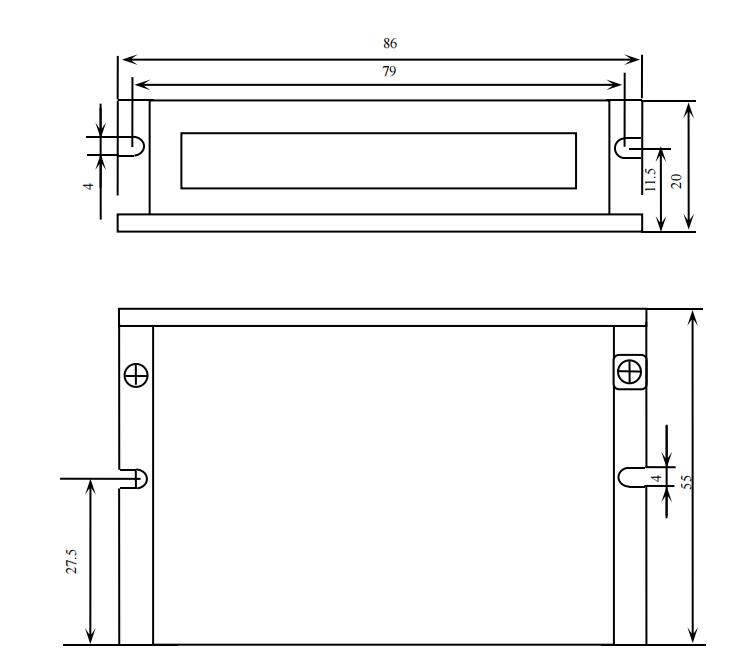

- Dimension: 86x55x20mm
- Weight: 0.23kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5/24 |
| Input Voltage(VDC) | 20-50 |
| Output Current(A) | 0.2-2.2 |
| Micro-step Resolutions | 200-25600 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 86x55x20 |
| Weight(KG) | 0.23 |
