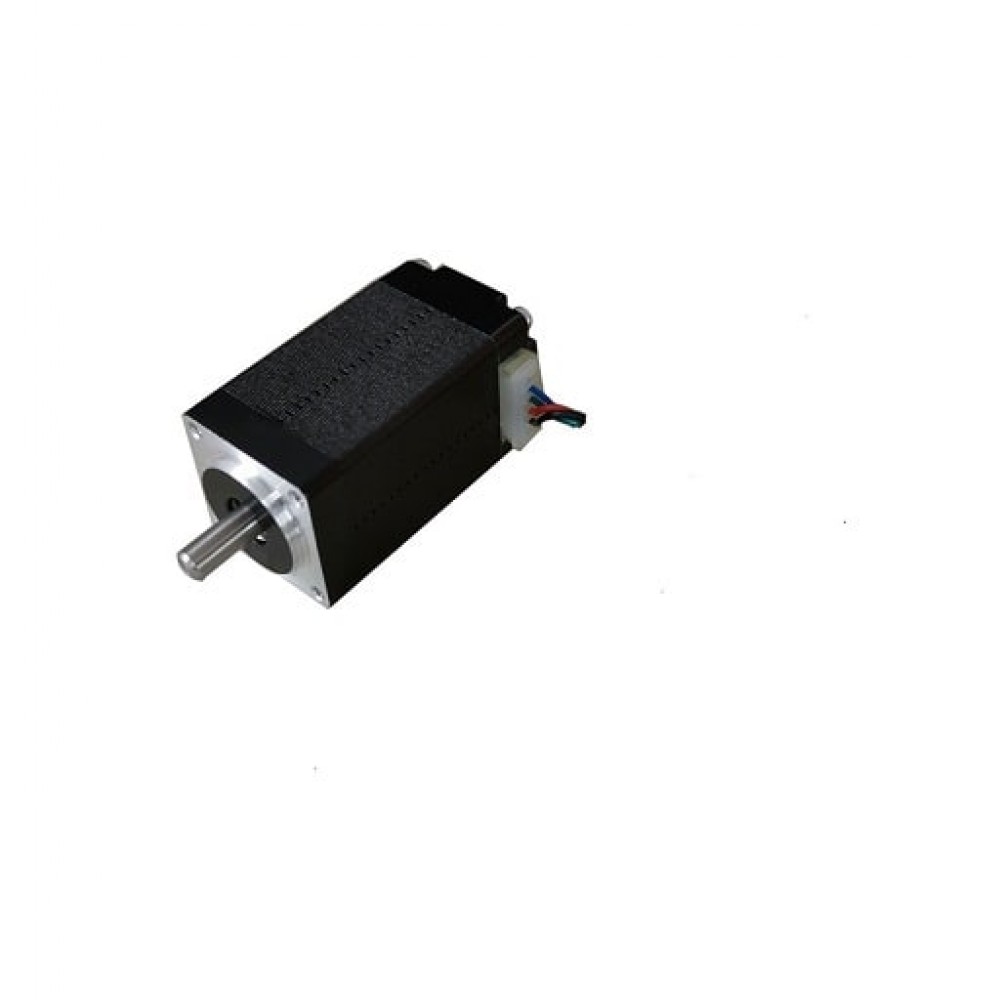

NEMA 8 Stepper Motor Bipolar 1.8deg 0.6A 0.04Nm/5.68oz.in 20x38mm 4 Wires Round Shaft
- Part Number: 20HS38-0604S
- Lead Time: In Stock
- Unit Price: US $15.00
- Sales: 23
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is the most popular NEMA 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A rated current with holding torque 0.04Nm/ 5.68oz.in. Please note the mounting frame is 16x16mm, not 15.4x15.4mm.
Electrical Specification
- Manufacturer Part Number: 20HS38-0604S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.04Nm/5.68oz.in
- Rated Current/phase: 0.6A
- Phase Resistance: 12.5ohms
- Inductance: 5.5mH
- Drving Voltage: 12-24VDC

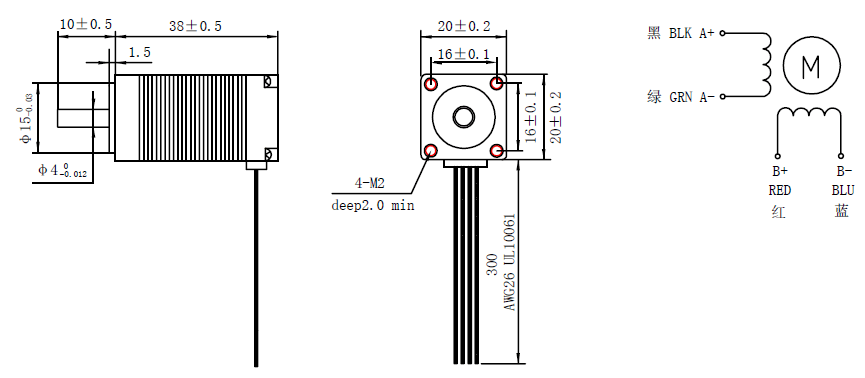

Physical Specification
- Frame Size: 20x20mm
- Body Length: 38mm
- Shaft Type: Round
- Shaft Diameter: Φ4mm
- Shaft Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.08kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 20HB38-0604S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Holding Torque(oz.in) | 5.68 |
| Rated Current(A) | 0.6 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Output Shaft Type | Round |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.08 |
