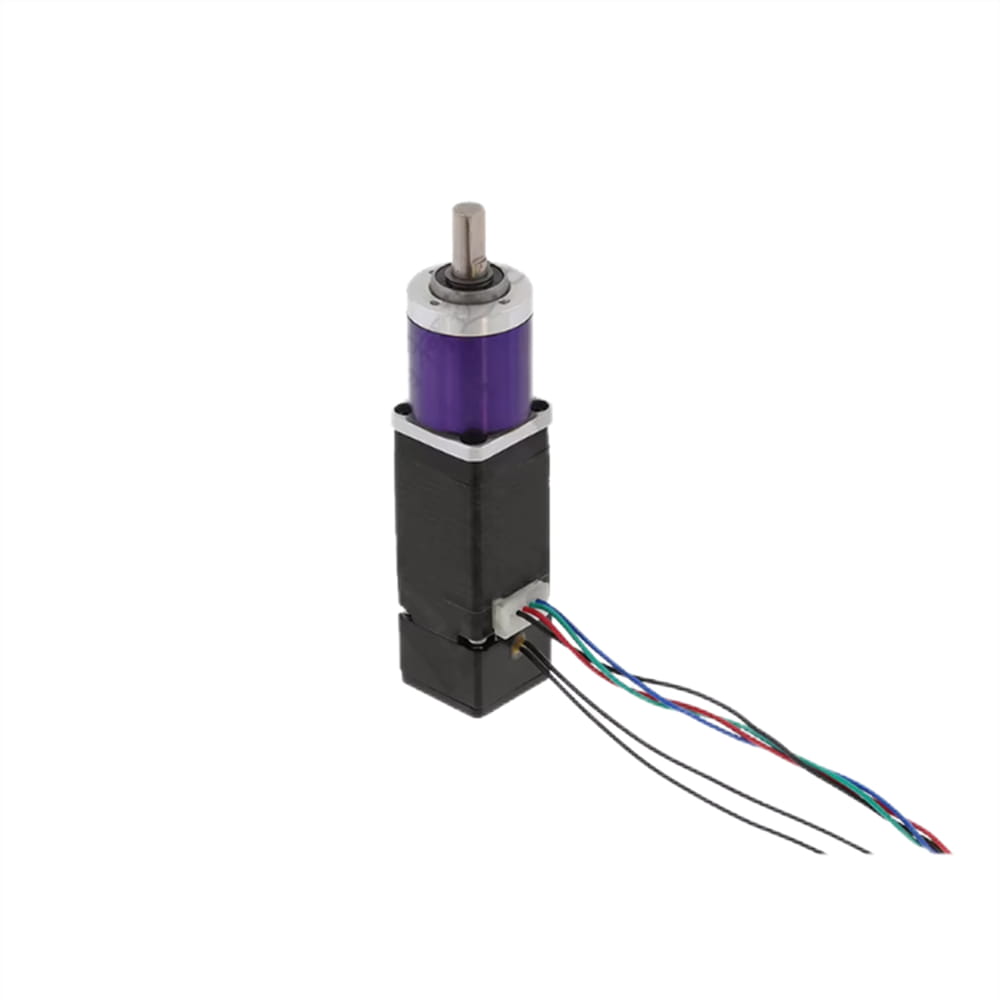

NEMA 8 Geared Stepper Motor L=38mm with Reduction Ratio 5:1 Planetary Gearbox & 24V Electromagnetic Brake
- Part Number: 20HS38-0604S-PG5-YS
- Lead Time: In Stock
- Unit Price: $99.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This small size 20mm NEMA 8 geared stepper motor 1.8deg step angle with 38mm body length has a good holding torque output 0.04Nm/5.68oz.in, which is combined with a 24V electromagnetic brake & a gear ratio of 4.25:1 planetary gearbox. It is absolutely an ideal solution the applications require vertical operation and low speed/high torque output.
Motor Specification
- Part Number: 20HS38-0604S-PG5-YS
- Step Angle: 1.8deg without gearbox
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.04Nm/5.68oz.in without gearbox
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V
- Frame Size: 20x20mm
- Motor Length: 38mm
- Number of Leads: 4
- Lead Length: 400mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 4.25:1
- Efficiency: 90%
- Backlash at No-load: 1.0deg
- Gearbox Length: 21.2mm
- Shaft Diameter: Φ6mm
- Shaft Length: 15mm
- Keyway length: 9mm
Brake Specification
- Brake Type: Electromagnetic
- Brake Voltage: 24VDC
- Brake Torque: 0.1Nm
- Number of Leads: 2
- Lead Length: 500mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Holding Torque(oz.in) | 5.68 |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 5:1 |
| Efficiency | 90% |
| Backlash at No-load | 1.0deg |
| Gearbox Length(mm) | 21.2 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
| Brake Torque(Nm) | 0.1 |
