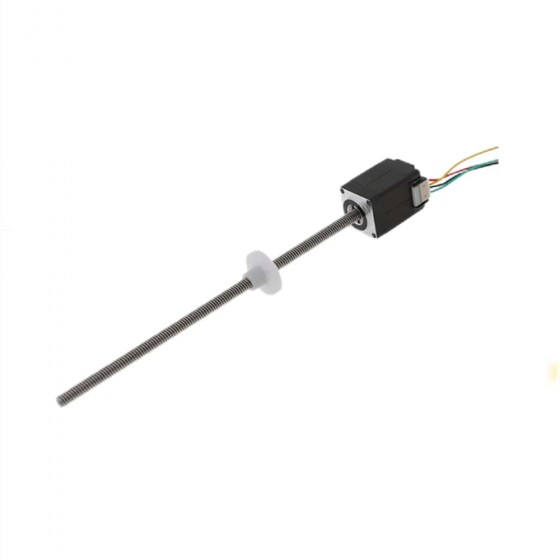

NEMA 8 External Linear Actuator Stepper Motor 30mm Stack 0.6A Lead 2mm Screw Length 150mm
- Part Number: 20LS30-0604E-150L52
- Lead Time: In Stock
- Unit Price: US $48.00
- Sales: 17
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 8 external linear actuator stepper motor with body length 30mm is integrated with a lead screw diameter Φ5mm, lead travel 2mm per revolution or lead travel 0.01mm per step and a POM screw nut moving along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 20LS30-0604E-150L2
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.02Nm/2.84oz.in
- Rated Current/phase: 0.6A
- Phase Resistance: 6.5ohms
- Inductance: 2.0mH
- Driving Voltage: 12-24V

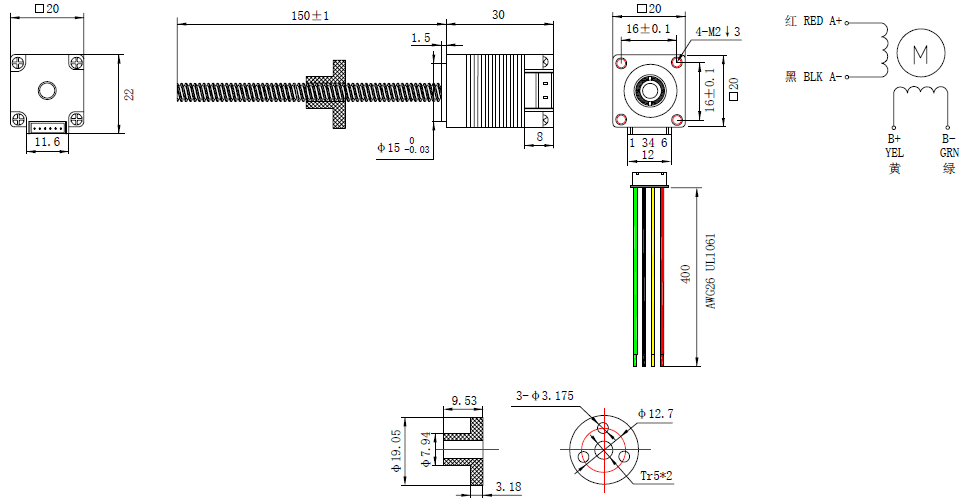

Physical Specification
- Frame Size: 20x20mm
- Body Length: 30mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ5mm
- Lead Travel/Step: 0.01mm
- Lead Travel/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.06kg
Connection
- Red: A+, Black: A-, Yellow: B+, Green: B-
Contact Us
| Product Details | |
| Model Number | 20LS30-0604E-150L52 |
| Product Type | External Linear Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.02 |
| Rated Current(A) | 0.6 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 20x20 |
| Stack Length(mm) | 30 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 5 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
| Lead Screw Length(mm) | 150 |
