NEMA 6 Ball Screw Linear Actuator Stepper Motor 32mm Stack 0.3A Lead 1mm Length 50mm
- Part Number: 14LS32-0304G-50L41
- Lead Time: Four Weeks
- Unit Price: US $320.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

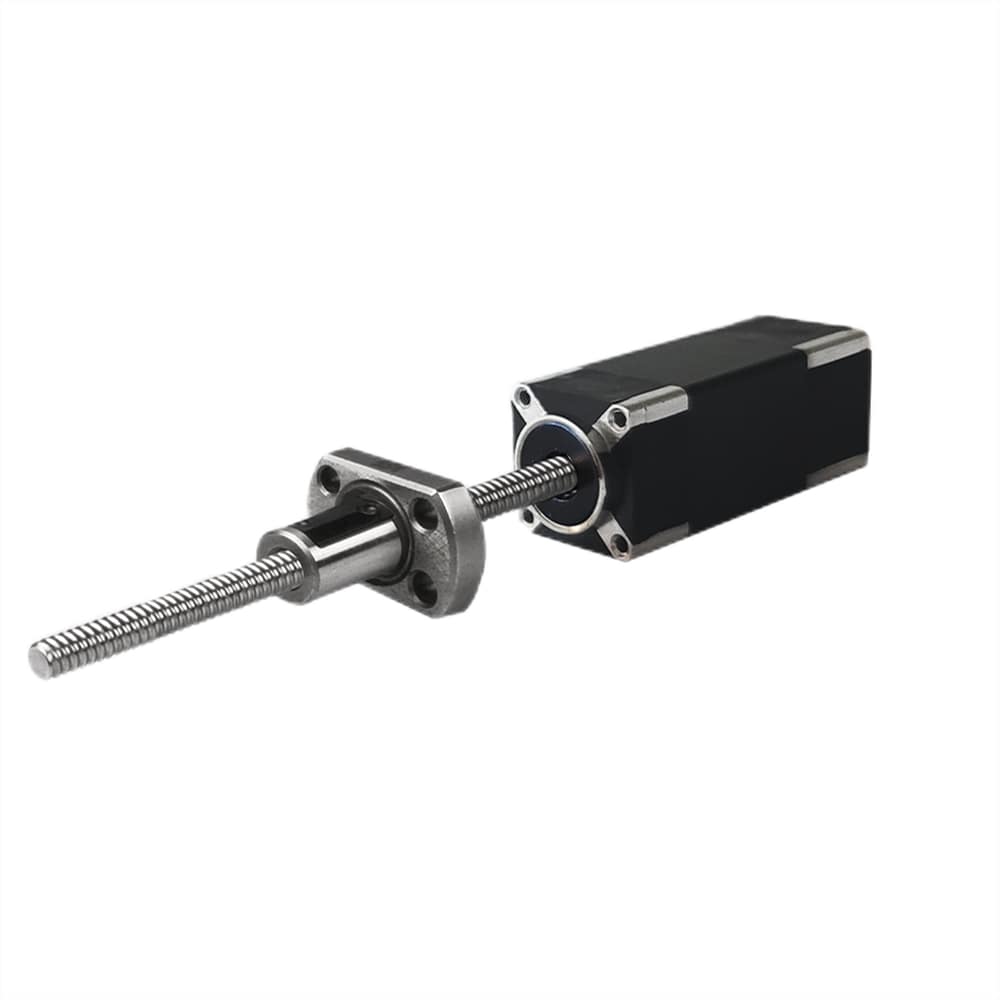

This small ball screw linear actuator electric motor is a size 14mm NEMA 6 linear motion stepper with a 32mm body length, 1.8 degree step angle, and 0.3A rated current. It is integrated with a Φ4mm diameter ball screw & lead travel 1mm per revolution/0.01mm per step, a high quality ball screw nut. The ball screw length is 50mm and can be customzied.
Electrical Specification
- Manufacturer Part Number: 14LS32-0304G-50L41
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipoalr: Bipolar
- Rated Current/phase: 0.3A
- Phase Resistance: 22.0ohms
- Inductance: 3.5mH
- Driving Voltage: 12-24VDC

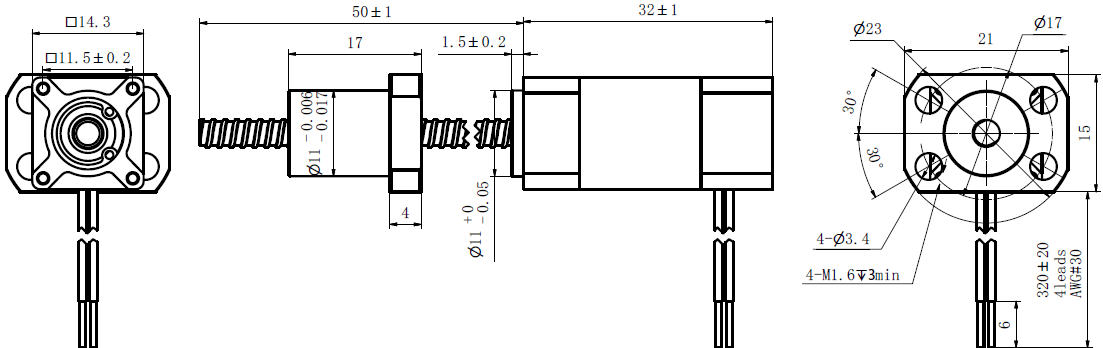

Physical Specification
- Frame Size: 14x14mm
- Body Length: 32mm
- Ball Screw Length: 50mm
- Ball Screw Diameter: Φ4mm
- Lead/Step: 0.005mm
- Lead/Revolution: 1mm
- Number of Leads: 4
- Lead Length: 320mm
- Weight: 0.06kg
Contact Us
| Product Details | |
| Model Number | 14LS32-0304G-50L41 |
| Product Type | External Ball Screw Stepper |
| Lead Time | Four Weeks |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.005 |
| Rated Current(A) | 0.3 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 14x14 |
| Stack Length(mm) | 32 |
| Ball Screw Specification | |
| Ball Screw Size(mm) | 0401 |
| Ball Screw Diameter(mm) | 4 |
| Ball Screw Travel/Revolution(mm) | 1 |
| Ball Screw Travel/Step(mm) | 0.005 |
| Ball Screw Length(mm) | 50 |
