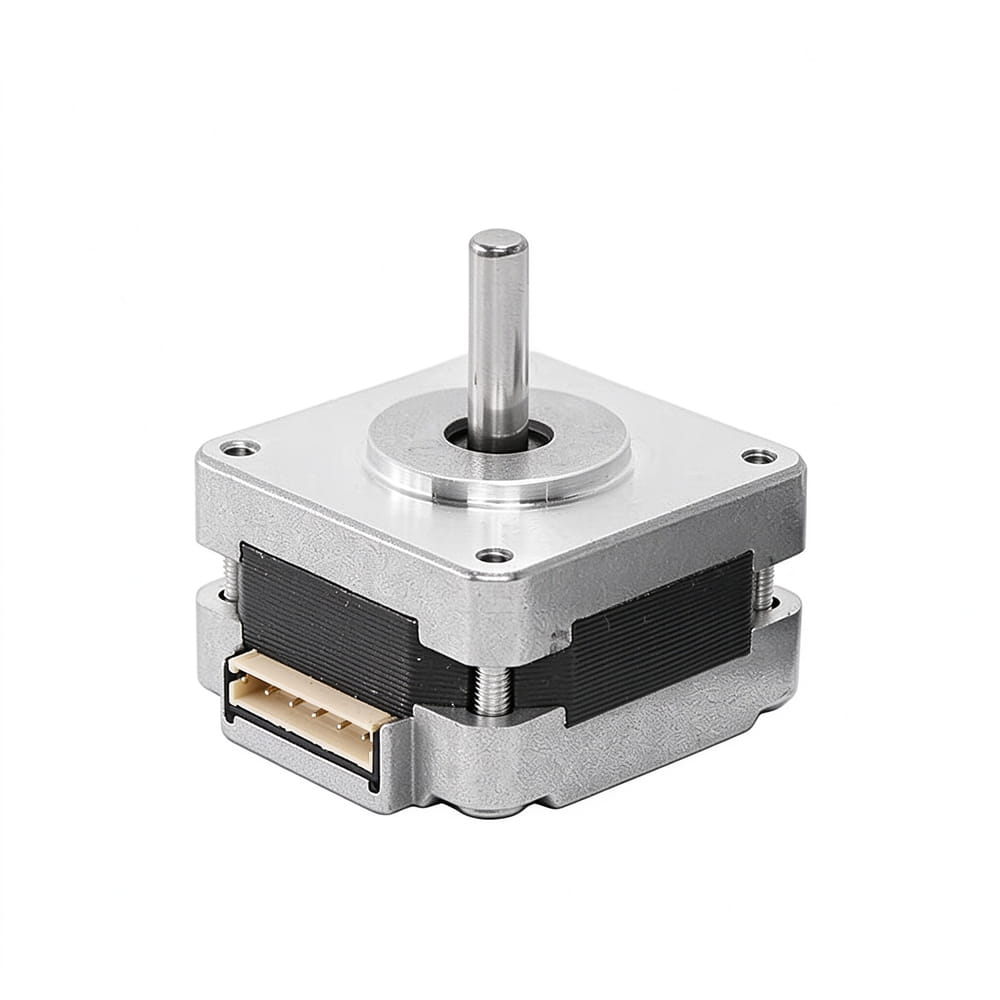

NEMA 16 Stepper Motor Bipolar 1.8deg 0.7A 0.2Nm/28.4oz.in 39x22mm 4 Leads
- Part Number: 35BYGH22
- Lead Time: In Stock
- Unit Price: US $15.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 16 bipolar stepper motor (35BYGH22) delivers 0.2 N·m (28.4 oz·in) of holding torque in a compact 39 × 39 mm frame with a slim 22 mm body length. It features a 1.8° step angle, 0.7 A rated current per phase, 4-lead bipolar wiring, a Φ5 mm round shaft (19 mm length), and 12–24 VDC operation, weighing just 0.12 kg. Its short 22 mm body and compact 39 mm frame make it well suited to space-constrained, mid-sized applications such as 3D printers, CNC routers and engravers, robotics, automation systems, camera platforms, and surveillance equipment. The matched drive is M322C.
Electrical Specification
- Manufacturer Part Number: 35BYGH22
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.2Nm/28.4oz.in
- Rated Current/phase: 0.7A
- Phase Resistance: 3.0ohms
- Inductance: 3.8mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 39x39mm
- Body Length: 22mm
- Shaft Diameter: Φ5mm
- Shaft Length: 19mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.12kg
Connection
- Red: A+, Black: A-, Yellow: B+, White: B-

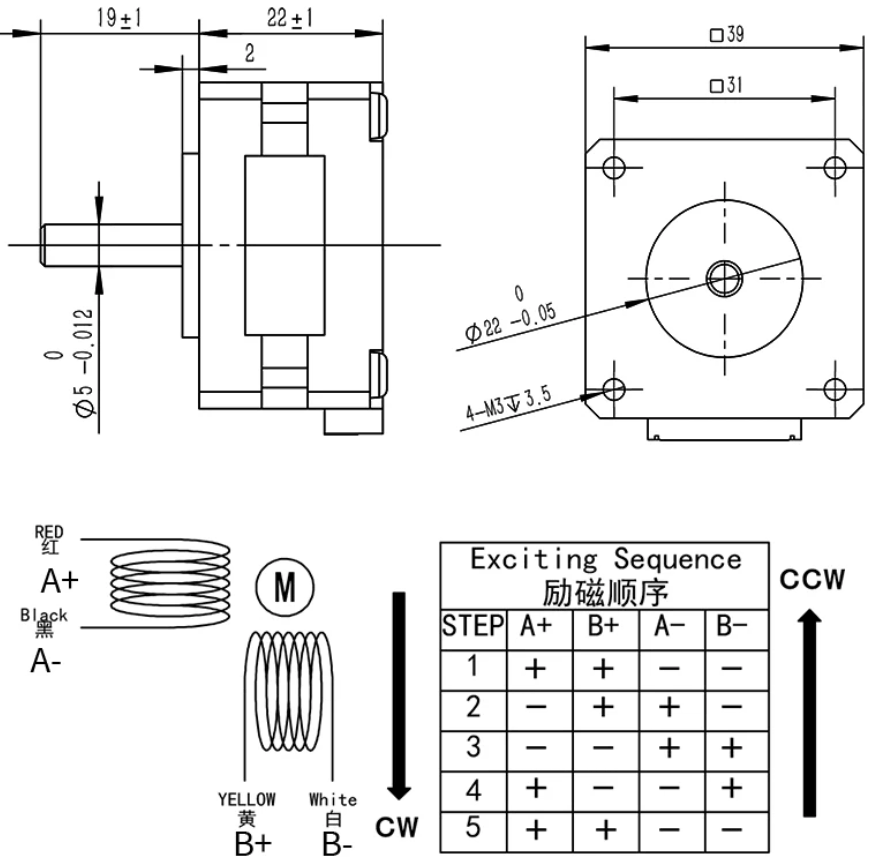

Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 35BYGH22 |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(N·m) | 0.2 |
| Holding Torque(oz.in) | 28.4 |
| Rated Current(A) | 0.7 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protection Class | IP20 |
| Frame Size(mm) | 39x39 |
| Body Length(mm) | 22 |
| Output Shaft Type | Round |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 19 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.12 |
