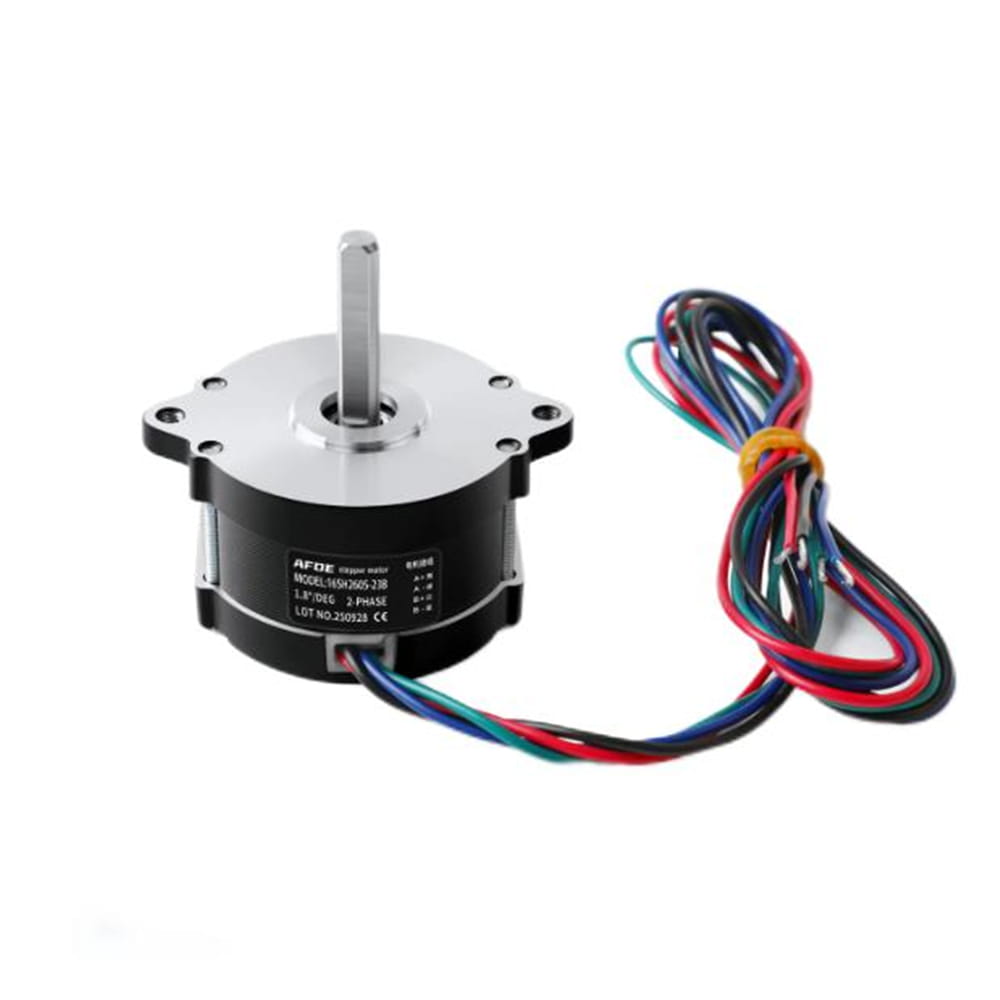

NEMA 16 Round Stepper Motor Bipolar 1.8deg 1.0A 0.12Nm 39x26.5mm 4 Wires
- Part Number: 16SH2605-23B
- Lead Time: In Stock
- Unit Price: US $30.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This compact size 39mm (NEMA 16) hybrid stepping motor has a 1.8° step angle(200 steps/revolution) and a ultrthin body length 26mm. It has a bipolar 4 wires connection, each phase drawing current 1.0A, allowing for a holding torque of 0.12Nm. The NEMA 16 stepper drive M322C can be used for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 16SH2605-23B
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm
- Rated Current/phase: 1.0A
- Phase Resistance: 2.2ohms
- Inductance: 2.0mH
- Driving Voltage: 12-24V

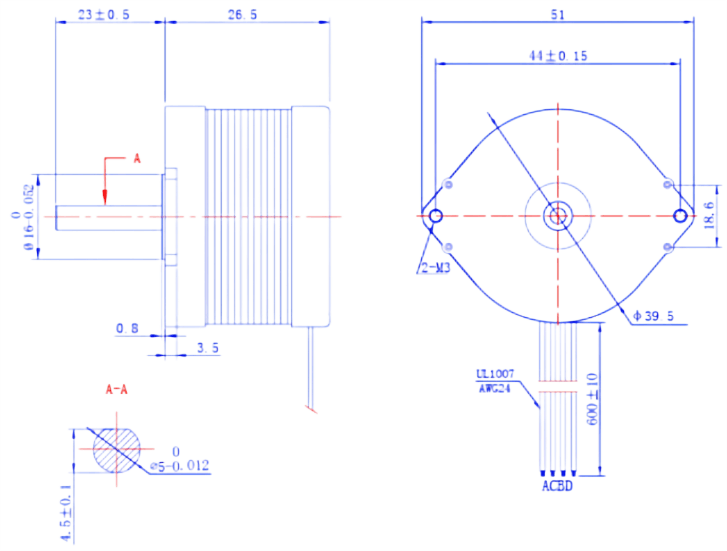

Physical Specification
- Frame Size: Φ39.5mm
- Body Length: 26.5mm
- Shaft Diameter: Φ5mm
- Shaft Length: 23mm
- Number of Leads: 4
- Lead Length: 600mm
- Weight: 0.12kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 16SH2605-23B |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | Φ39.5 |
| Body Length(mm) | 26.5 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 23 |
| No. of Leads | 4 |
| Lead Length(mm) | 600 |
| Weight(KG) | 0.12 |
