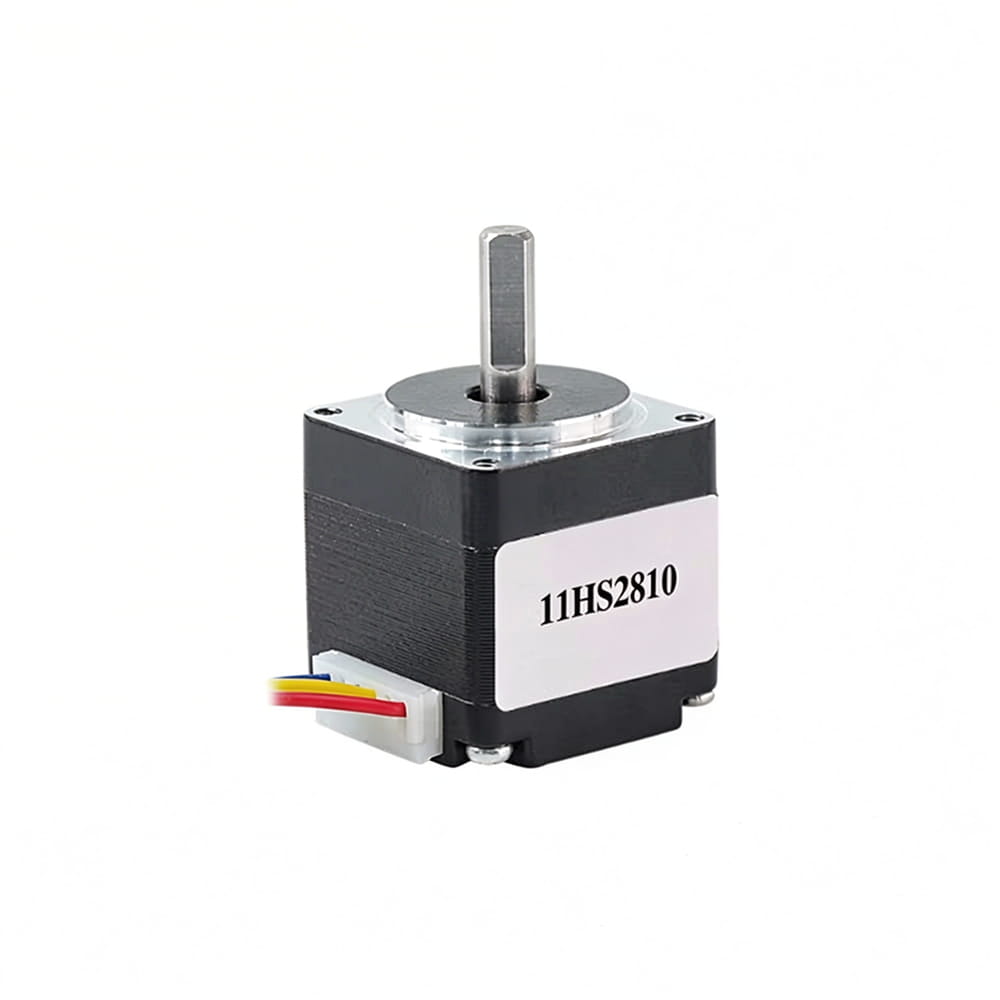

NEMA 11 Stepper Motor Bipolar 1.8deg 0.8A 0.08Nm/9.6oz.in 28x28mm 4 Wires
- Part Number: 11HS2810
- Lead Time: In Stock
- Unit Price: US $14.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 11 bipolar stepper motor (11HS2810) provides 0.08 N·m (9.6 oz·in) of holding torque in a 28 × 28 mm frame with a 28 mm body length. It features a 1.8° step angle, 0.8 A rated current per phase, 4-wire bipolar wiring, a 5 mm shaft diameter, and 12–24 VDC operation. Its compact 28 mm frame and short body make it well suited to space-constrained precision positioning in 3D printers, compact CNC routers and engravers, medical and analytical instruments, optical equipment, and small-scale robotics. The matched drive is M322C.
Electrical Specification
- Manufacturer Part Number: 11HS2810
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.08Nm/9.6oz.in
- Rated Current/phase: 0.8A
- Phase Resistance: 3.2ohms
- Inductance: 1.7mH
- Driving Voltage: 12-24VDC
Physical Specification
- Frame Size: 28x28mm
- Body Length: 28mm
- Shaft Diameter: Φ5mm
- Shaft Length: 17mm
- D-cut Length: 12mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.9kg
Connection
- Red: A+, Green: A-, Yellow: B+, Blue: B-
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 11HS2810 |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(N·m) | 0.08 |
| Holding Torque(oz.in) | 9.6 |
| Rated Current(A) | 0.8 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protection Class | IP20 |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 28 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 17 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.09 |
L=28mm
