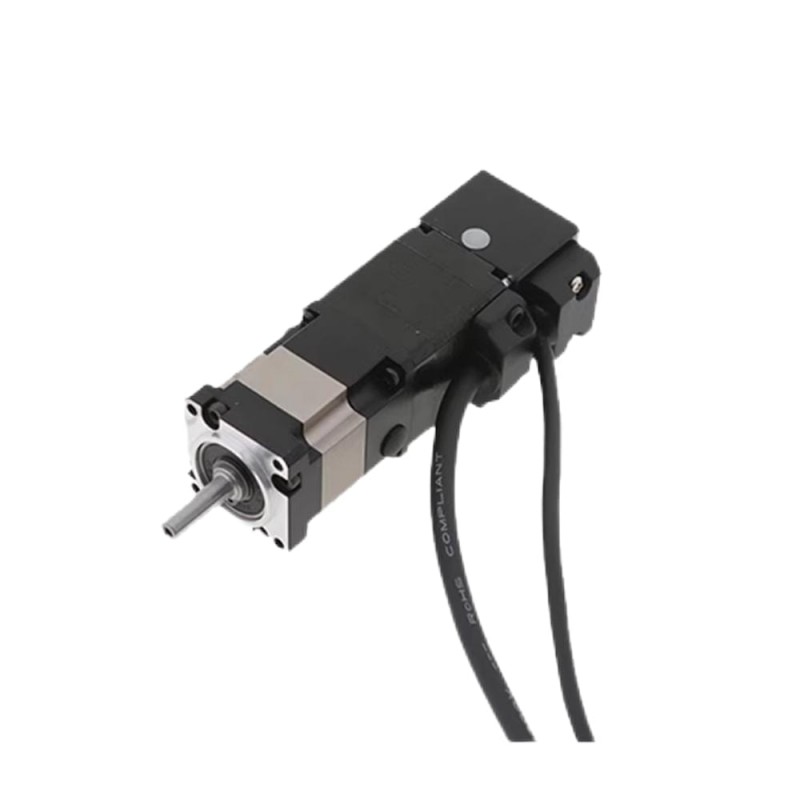

NEMA 11 Geared Stepper Motor L=33mm with Reduction Ratio 50:1 Square Planetary Gearbox & 24V Brake
- Part Number: 28HS33-1004S-FGS50-YS
- Lead Time: In Stock
- Unit Price: $99.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This small size 28mm NEMA 11 geared stepper motor 1.8deg step angle with 33mm body length has a good holding torque output 0.07Nm/9.94oz.in, which is combined with a 24V electromagnetic brake & a gear ratio of 50:1 high precision low backash square planetary gearbox. It is absolutely an ideal solution the applications require vertical operation and low speed/high torque output.
Motor Specification
- Part Number: 28HS33-1004S-FGS50-YS
- Step Angle: 1.8deg without gearbox
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.07Nm/9.94oz.in without gearbox
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V
- Frame Size: 28x28mm
- Motor Length: 33mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 50:1
- Efficiency: 94%
- Backlash at No-load: 20arcmin
- Gearbox Length: 46.5mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- Keyway length: 15mm
Brake Specification
- Brake Type: Electromagnetic
- Brake Voltage: 24VDC
- Brake Torque: 0.2Nm
- Number of Leads: 2
- Lead Length: 500mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.07 |
| Holding Torque(oz.in) | 9.94 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 28x28 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 50:1 |
| Efficiency | 94% |
| Backlash at No-load | 20arcmin |
| Gearbox Length(mm) | 46.5 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
| Brake Torque(Nm) | 0.2 |

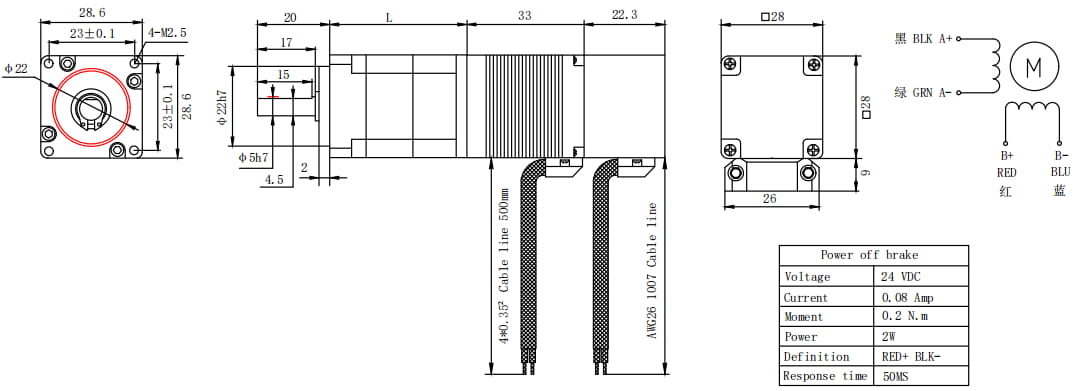

L=46.5mm
