NEMA 11 External Linear Actuator Stepper Motor 34mm Stack 0.75A Lead 0.635mm Screw Length 100mm
- Part Number: 28LS34-0754E-100L0.635
- Lead Time: In Stock
- Unit Price: US $50.00
- Sales: 26
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 28 external linear actuator NEMA 11 stepper motor with body length 34mm is integrated with a diameter Φ4.76mm lead screw. The lead travel is 0.635mm per revolution or 0.003175mm per step, and a POM screw nut moving along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 28LS34-0754E-100L0.635
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipoalr: Bipolar
- Holding Torque: 0.06Nm/8.52oz.in
- Rated Current/phase: 0.75A
- Phase Resistance: 6.5ohms
- Inductance: 3.2mH
- Driving Voltage: 12-24V

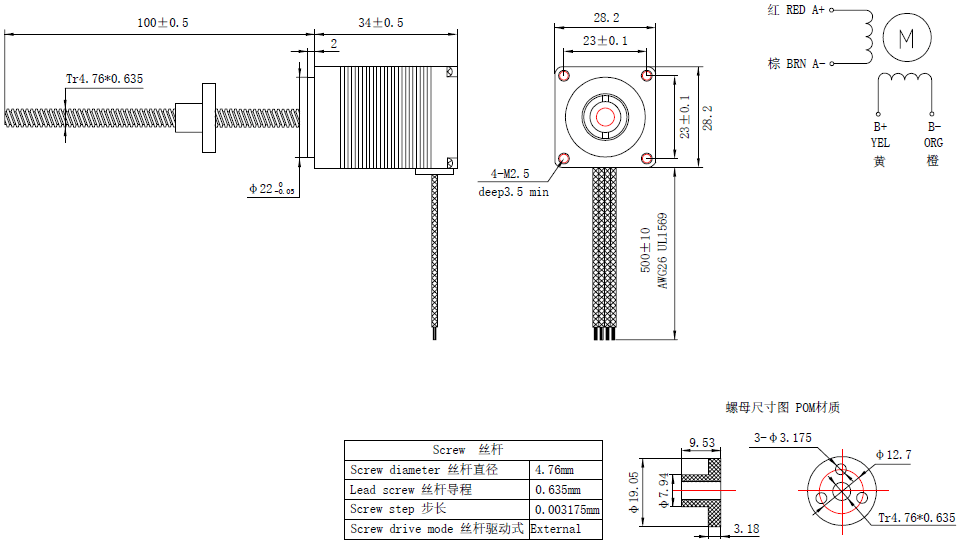

Physical Specification
- Frame Size: 28x28mm
- Body Length: 34mm
- Lead Screw Length: 100mm
- Lead Screw Diameter: Φ4.76mm
- Lead /Step: 0.003175mm
- Lead/Revolution: 0.635mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.18kg
Connection
- Red: A+, Brown: A-, Yellow: B+, Orange: B-
Contact Us
| Product Details | |
| Model Number | 28LS34-0754E-100L0.635 |
| Product Type | External Linear Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Rated Current(A) | 0.75 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 34 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Travel/Revolution(mm) | 0.635 |
| Lead Travel/Step(mm) | 0.003175 |
| Lead Screw Length(mm) | 100 |
