NEMA 11 Ball Screw Linear Actuator Stepper Motor 33mm Stack 1.0A Lead 2mm with 24V Electromagnetic Brake

Part Number: 28LS33-1004G-100L82YS
Lead Time: One Week
Unit Price: US $150.00
Sales: 3

*Ship from China

- +

Tags: NEMA 11 Ball Screw Linear Actuator Stepper Motor 33mm Stack 1.0A Lead 2mm Electromagnetic Brake

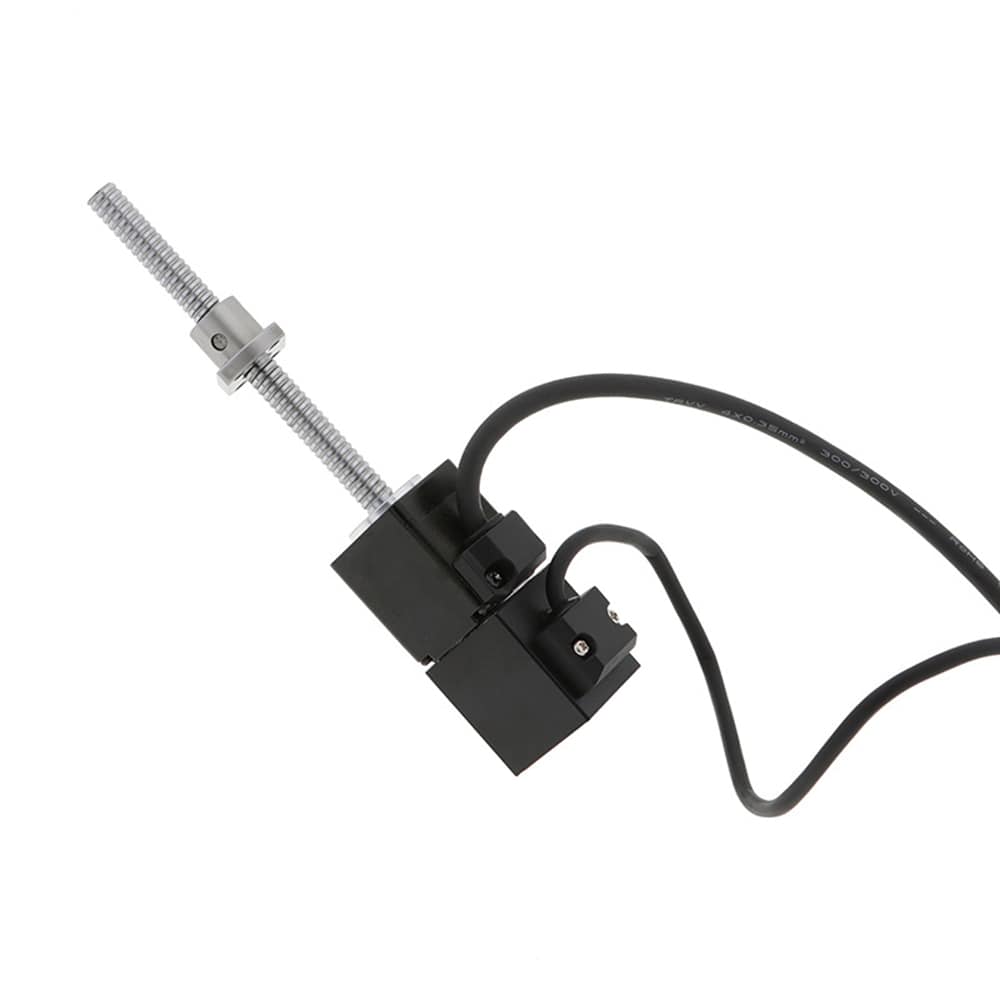

This small ball screw linear actuator electric motor is a size 28mm NEMA 11 linear motion stepper with a 33mm body length, 1.8 degree step angle, and 1.0A rated current. It is integrated with a Φ8mm diameter ball screw & lead travel 2mm per revolution/0.01mm per step, a high quality ball screw nut. A 24V electromagnetic brake is assembled for the special operation.

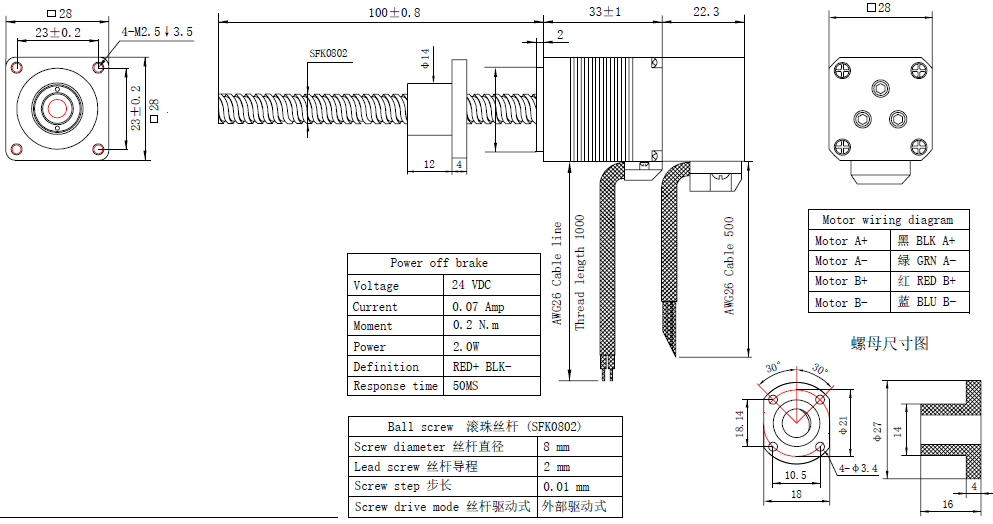

Electrical Specification

Manufacturer Part Number: 28LS33-1004G-100L82YS
Motor Type: External
Step Angle: 1.8deg
Bipolar/Unipoalr: Bipolar
Rated Current/phase: 1.0A
Phase Resistance: 2.1ohms
Inductance: 1.5mH
Driving Voltage: 12-24V

Physical Specification

Frame Size: 28x28mm
Body Length: 33mm
Rear Shaft Diameter: Φ5mm
Rear Shaft Length: Φ12mm
Ball Screw Length: 100mm
Ball Screw Diameter: Φ8mm
Ball Screw/Step: 0.01mm
Ball Screw/Revolution: 2mm
Number of Leads: 4
Lead Length: 1000mm

Brake Connection

Brake Type: Electromagnetic
Brake Voltage: 24VDC
Brake Torque: 0.2Nm
Number of Leads: 2
Lead Length: 500mm

Connection

Black: A+, Green: A-, Red: B+, Blue: B-

Contact Us

Your Name

E-Mail Address

Enquiry

Product Details
Model Number	28LS33-1004G-100L82YS
Product Type	External Ball Screw Stepper
Lead Time	One Week
Insulation Class	B
Protective Grade	IP20
Stepper Motor Specification
Step Angle(deg.)	1.8
Bipolar/Unipolar	Bipolar
Holding Torque(Nm)	0.06
Rated Current(A)	1.0
Driving Voltage(VDC)	12-24
Frame Size(mm)	28x28
Stack Length(mm)	33
Rear Shaft Diameter(mm)	5
Rear Shaft Length(mm)	12
Brake Specification
Brake Type	Electromagnetic
Brake Voltage(VDC)	24
Ball Screw Specification
Ball Screw Size(mm)	0802
Ball Screw Diameter(mm)	8
Ball Screw Travel/Revolution(mm)	2
Ball Screw Travel/Step(mm)	0.01
Ball Screw Length(mm)	100
