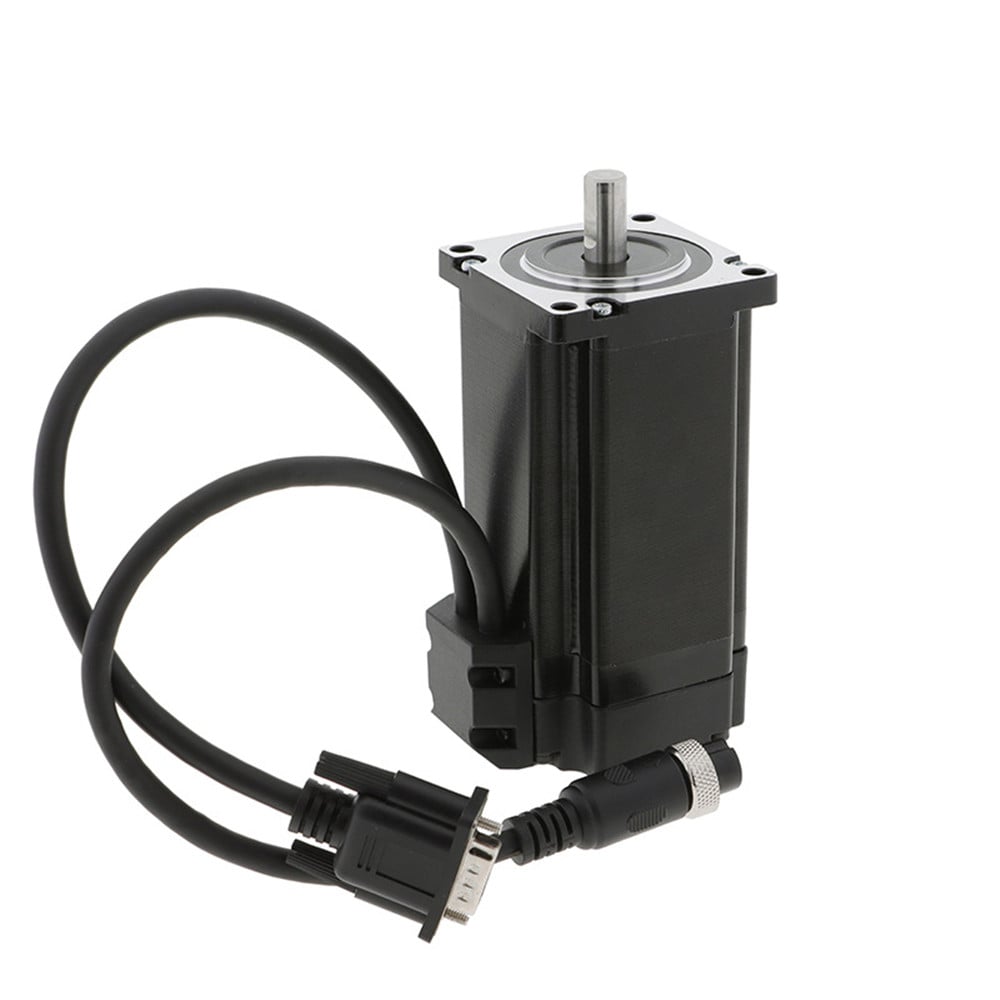

Encoder Stepper Motor NEMA 24 Size 60mm 5.0A 4.0Nm
- Part Number: 60HS100-5004D-E1000
- Lead Time: In Stock
- Unit Price: US $49.00
- Sales: 556
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This big closed-loop NEMA 24 stepper motor, which is integrated with a 1000PPR optical incremental encoder, has a rated current of 5.0A and a holding torque of 4.0Nm/568oz.in. it performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors, compared to the open loop stepper motors. The matched drive is CL57C.
Electrical Specification
- Manufacturer Part Number: 60HS100-5004D-E1000
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 4.0 Nm
- Rated Current/phase: 5.0A
- Driving Voltage: 24-48 V
- Frame Size: 60x60 mm
- Body Length: 100 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 21 mm
- D-cut Length: 15 mm
- Number of Leads: 4
- Lead Length: 300 mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 300 mm
- Supply Voltage: 5.0 V
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 60HS100-5004D-E1000 |
| Product Type | Closed Loop Stepper Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(N·m) | 4.0 |
| Rated Current(A) | 5.0 |
| Driving Voltage(VDC) | 24-48 |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 100 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 21 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
