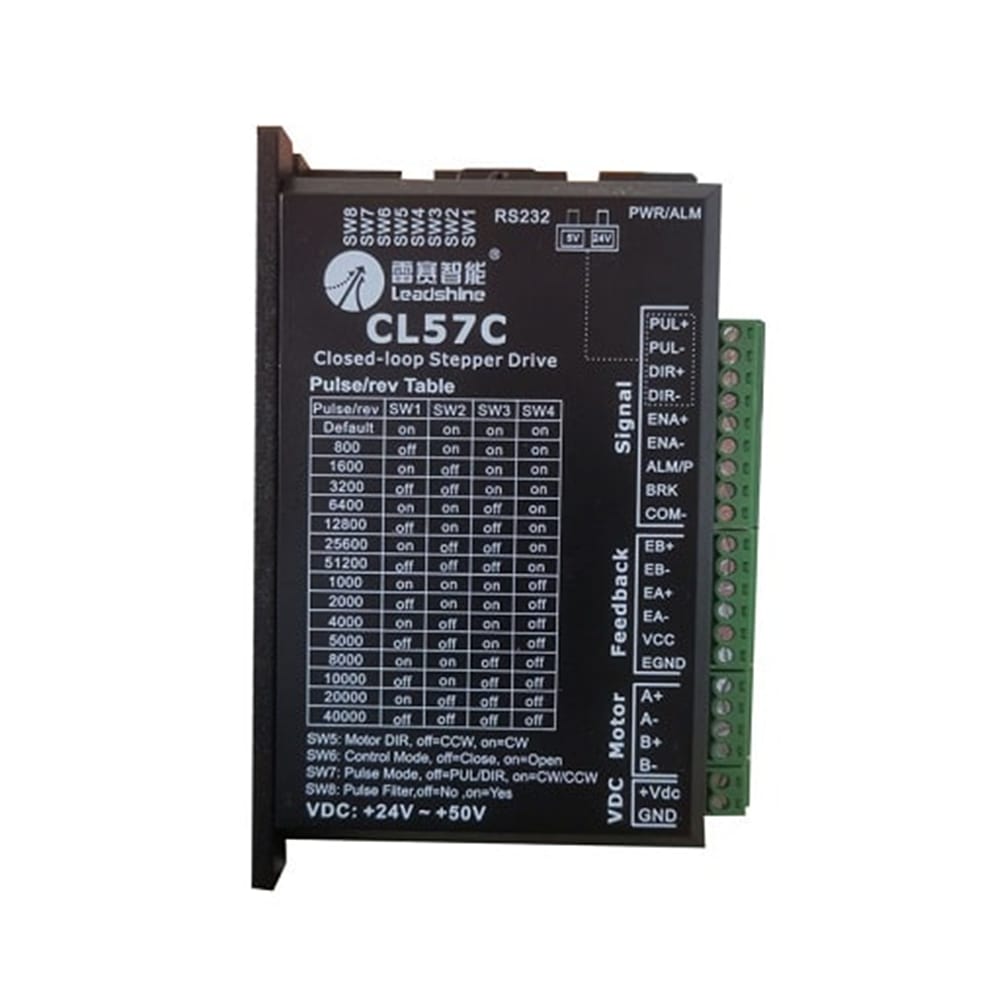

LEADSHINE CL57C Closed Loop Stepper Drive 0-6.0A 20-50VDC for NEMA 17/23/24
- Part Number: CL57C
- Lead Time: In Stock
- Unit Price: $60.00
- Sales: 45
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This closed-loop stepper drive CL57C is definitely capable of powering 2 phase hybrid stepper motors of NEMA 23 & 24 with incremental encoder. It provdes a input voltage 20-50VDC and output current 0-6.0A.
Key Features:
- Brake port interface
- RS232 debugging interface
- Alarm and pend(in-position) signal output
- Pulse & Direction or CW/CCW(double pulse)
- Encoder 0-5000PPR, default setting 1000PPR
- Protections for over voltage, over current, position following error, etc
- Logic Input Voltage: 5V/24V
- Output Current: 0-6.0A(4.2RMS)
- Input Voltage: 24-50VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension:116x69.2x26.5mm
- Weight: 0.28kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5/24 |
| Input Voltage(VDC) | 20-50 |
| Output Current(A) | 0-8 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |
| Dimensions(mm) | 116x69.2x26.5 |
| Weight(KG) | 0.28 |
