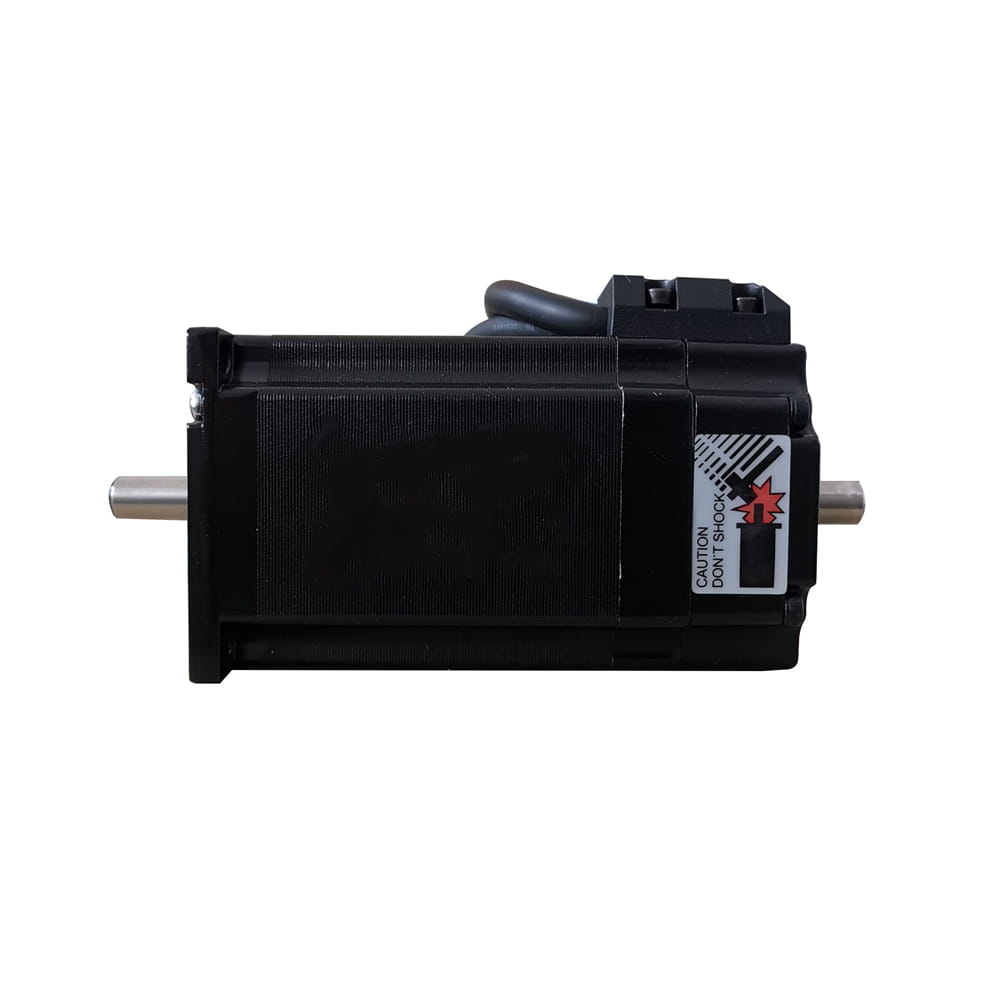

Encoder Stepper Motor NEMA 23 Size 57mm Dual Shaft 4.6A 2.2Nm with Rear Shaft
- Part Number: 57HS80-4604D-E1000-B
- Lead Time: In Stock
- Unit Price: $44.50
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This big closed-loop NEMA 23 dual shaft stepper motor, which is integrated with a 1000PPR optical incremental encoder, has a rated current of 4.6A and a holding torque of 2.2Nm/312.4oz.in. it performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors, compared to the open loop stepper motors.
Electrical Specification
- Part Number: 57HS80-4604D-E1000-B
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 2.2Nm/312.4oz.in
- Rated Current/phase: 4.6A
- Driving Voltage: 24-60VDC
- Frame Size: 57x57mm
- Body Length: 80mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- Keyway Length: 18mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us

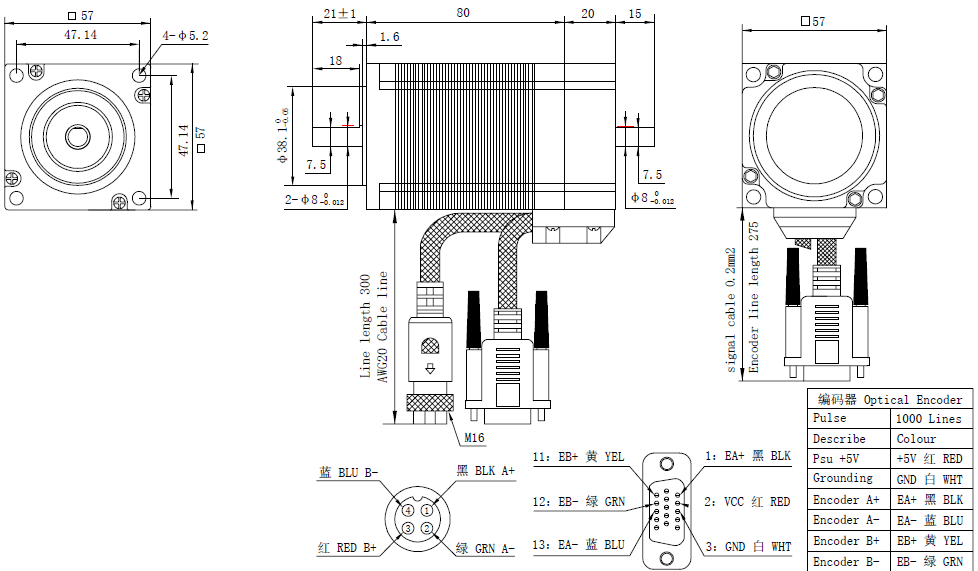

| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.2 |
| Holding Torque(oz.in) | 312.4 |
| Rated Current(A) | 4.6 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 80 |
| Front Shaft Diameter(mm) | 8 |
| Front Shaft Length(mm) | 21 |
| Rear Shaft Diameter(mm) | 8 |
| Rear Shaft Length(mm) | 15 |
| Driving Voltage(VDC) | 24-60 |
| Encoder Specification | |
| Encoder Resolution(PPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
