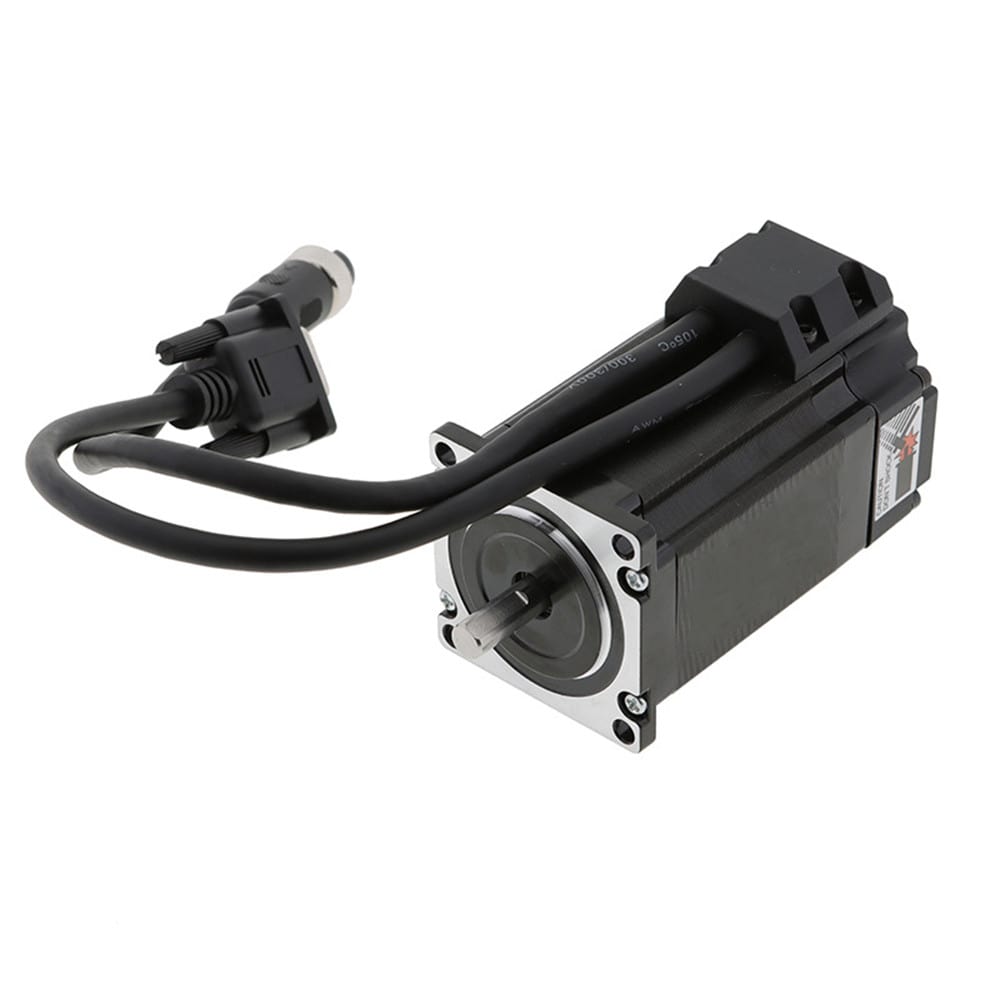

Closed Loop Stepping Motor Size 57mm 5.0A 2.0Nm 1000PPR Encoder NEMA 23
- Part Number: 57DL76-5004D-E1000
- Lead Time: In Stock
- Unit Price: US $50.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This closed loop stepping motor is a size 57mm NEMA 23 stepper motor equipping with a 1000PPR incremental optical encoder, which has a rated current of 5.0A and a holding torque of 2.0Nm. Compared with open loop stepper motors, it performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors.

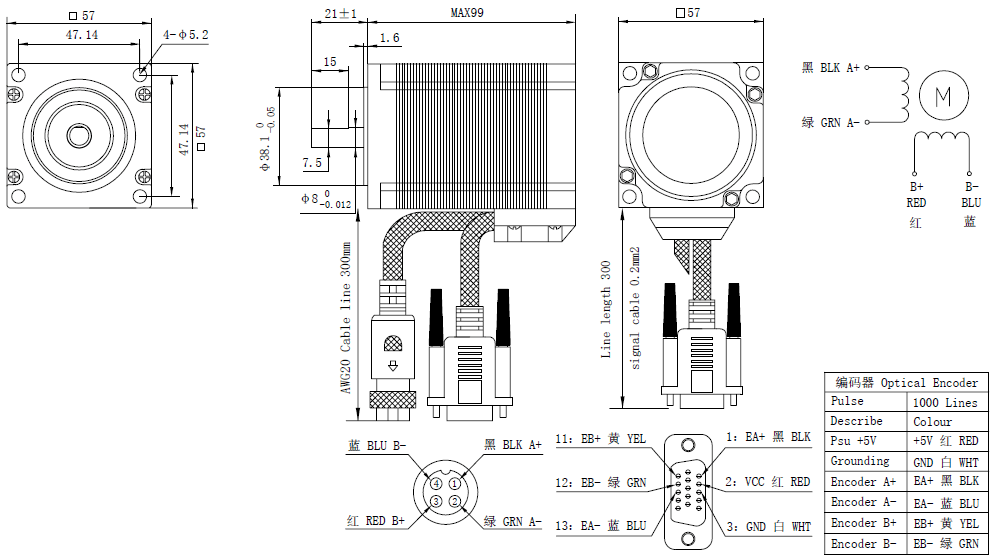

Motor Specification
- Manufacturer Part Number: 57DL76-5004D-E1000
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 2.0Nm
- Rated Current: 5.0A
- Driving Voltage: 24-48V
- Frame Size: 57x57mm
- Body Length: 76mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 270mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 270mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 57DL76-5004D-E1000 |
| Product Type | Closed Loop Stepping Motor |
| Lead Time | in stock |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.0 |
| Rated Current(A) | 5.0 |
| Driving Voltage(VDC) | 24-48 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
| Supply Voltage(VDC) | 5.0 |
