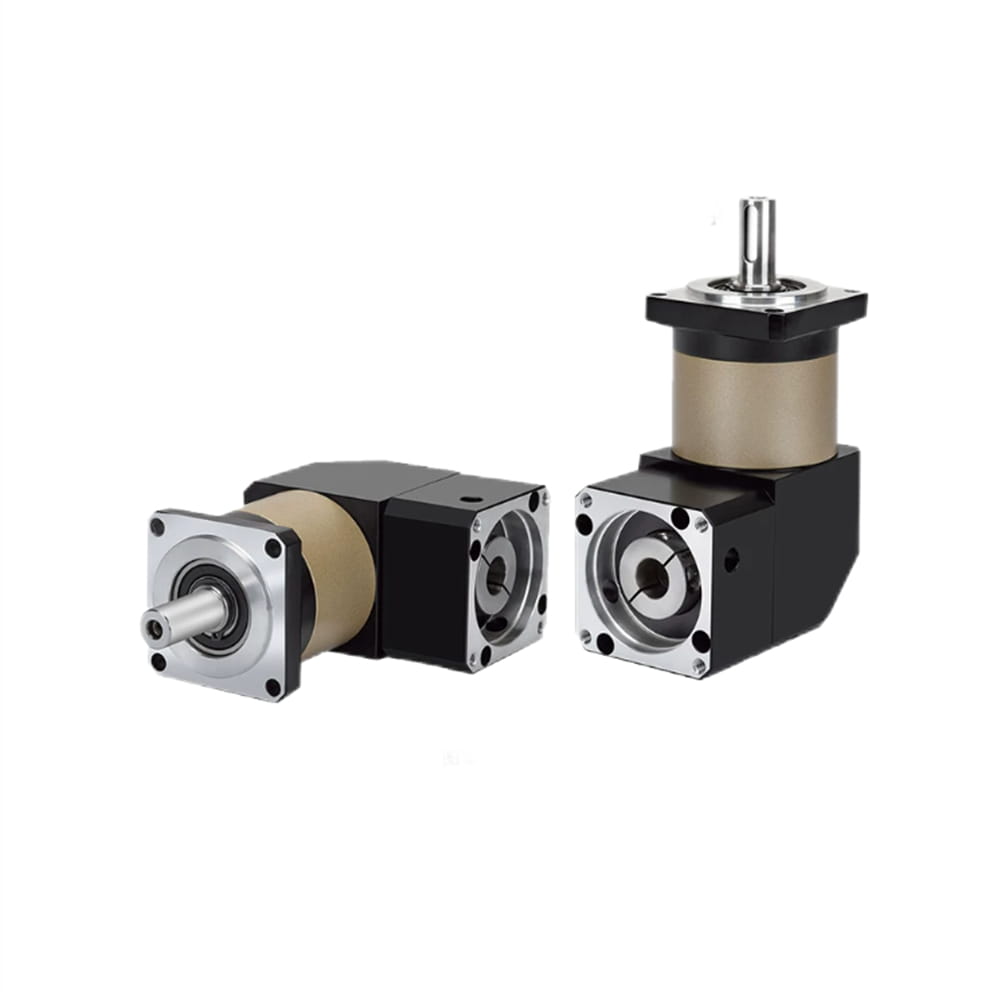

ZPLF40 Low-Backlash Precision Right Angle Planetary Gearbox (≤8 arcmin) for 40mm Servo Motor

This ZPLF40 low-backlash precision right-angle planetary gearbox is engineered for 40 mm servo motors, featuring a space-saving 90-degree design with a built-in input coupling that accepts a Φ8 mm diameter input shaft and a maximum 25mm long input shaft. Its right-angle configuration allows the output shaft to be routed conveniently where an inline gearbox would be difficult to mount. The gearbox delivers low backlash of ≤8 arcmin (single-stage) or ≤12 arcmin (two-stage), with reduction ratios from 3:1 to 100:1 and rated output torque of 9–15 N·m depending on the ratio. It handles a rated input speed of 3,000 RPM (max. 6,000 RPM) and loads of 165 N radial / 135 N axial, operating at ≤55 dB with IP65 protection, permanent lubrication, a 20,000-hour lifespan, and an ambient temperature range of -40°C to +150°C. Its 40 mm square flange, right-angle layout, and low-backlash gearing make it well suited to space-constrained precision axes in CNC machines, industrial robotics, automated production lines, packaging machinery, laser processing equipment, and medical or semiconductor handling systems where efficient torque multiplication and flexible shaft routing are required.

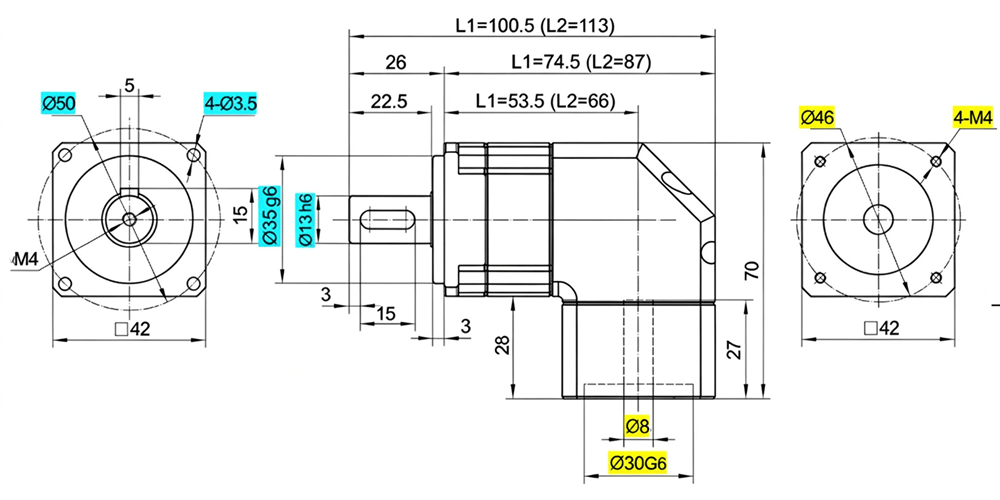

ZPLF40 General Specification

• Manufacturer Part Number: ZPLF40
• Product Type:  Right Angle Planetary Gearbox
• Rated Input Speed: 3,000 RPM
• Max. Input Speed: 6,000 RPM
• Max. Radial Load: 165 N
• Max. Axial Load: 135 N
• Noise: ≤55 dB
• Protection Class: IP65
• Lifespan: 20,000 Hours
• Ambient Temperature: -20° to +150°
• Lubrication Type: Lifetime Lubrication
• Output Shaft Type: Keyway
• Output Shaft Diameter: Φ8 mm
• Output Shaft Length: 25 mm
• Input Shaft Diameter: Φ13 mm
• Input Shaft Length: Max. 26 mm
