Waterproof IP68 NEMA 17 Stepper Motor Gear Ratio 3.7:1 Economy Planetary Gearbox
- Part Number: 42ZFY48-PG4-IP68
- Lead Time: In Stock
- Unit Price: $149.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

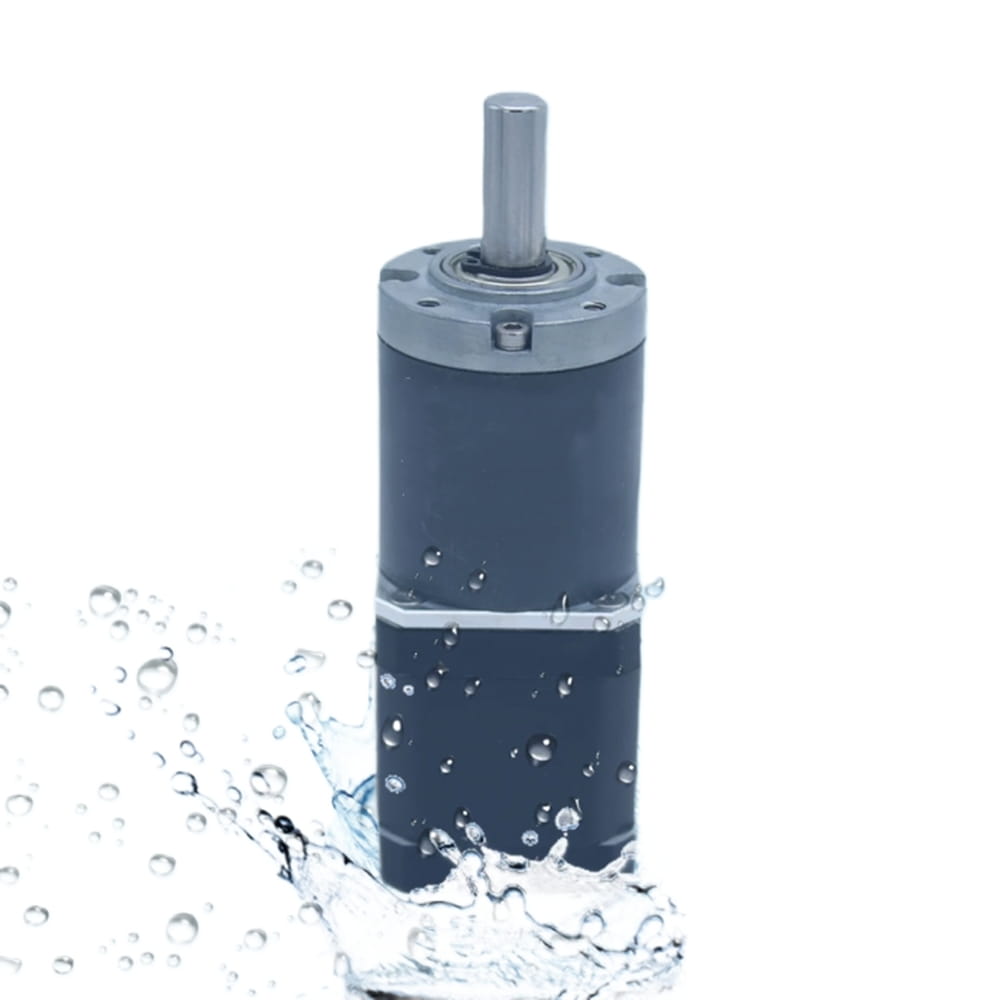

This size 42mm NEMA 17 geared stepper motor is combined with a economy planetary gearbox of reduction ratio 3.7:1 with an IP68 waterproof rating, which means this IP68 stepper geared motor can work in water.
Motor Specification
- Part Number: 42ZFY48-PG4-IP68
- Step Angle w/o gearbox: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque w/o gearbox: 0.55Nm
- Rated Current/phase: 2.5A
- Frame Size: 42x42mm
- Motor Length: 48mm
- Number of Leads: 4
- Lead Length: 1000mm
- Protection Level: IP68
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 3.7:1
- Efficiency: 90%
- Backlash at No-load: 1.0deg
- Gearbox Length: 31.5mm
- Shaft Diameter: Φ10mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Protection Level: IP68
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.55 |
| Holding Torque(oz.in) | 78.1 |
| Rated Current(A) | 2.5 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 4:1 |
| Efficiency | 90% |
| Backlash at No-load | 1.0deg |
| Gearbox Length(mm) | 31.5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 20 |

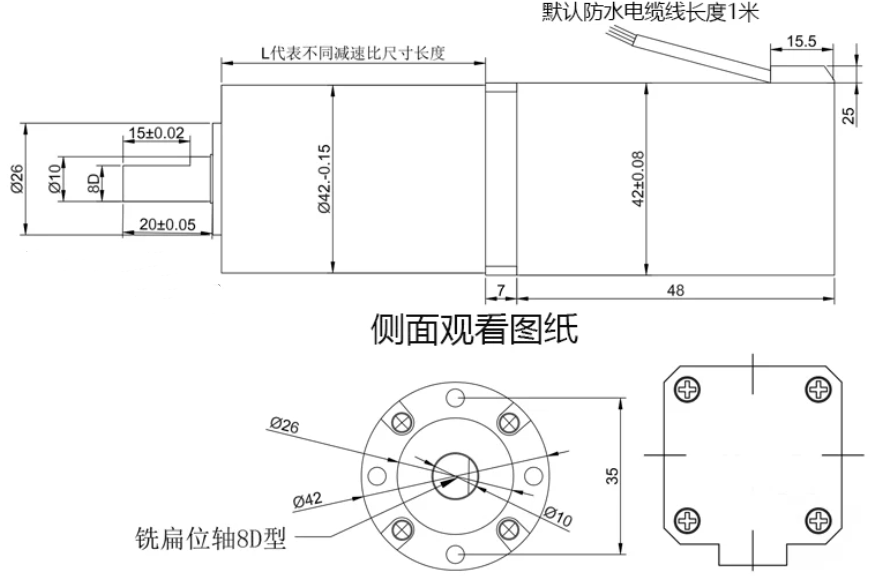

L=31.5mm
Motor 4 Wires: A+ Red, A- Green, B+ Blue, B- Yellow
