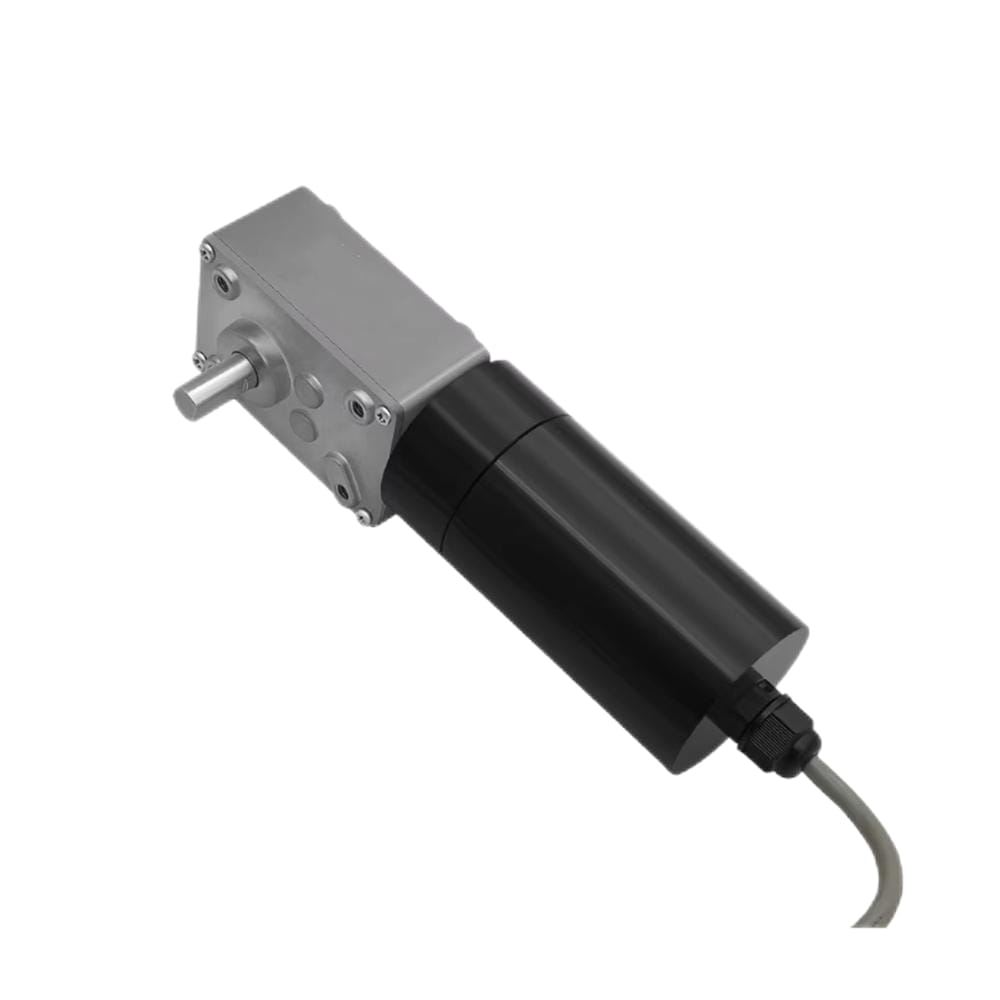

Waterproof IP68 24V 33RPM 2.5 N-m Φ39mm Geared DC Motor 239:1 Worm Gearbox
- Part Number: 39LS82-24V-WG239
- Lead Time: In Stock
- Unit Price: US $50.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This 35 mm 24 V brushed DC gear motor features a 239:1 worm gearbox and IP68 waterproof protection, enabling direct underwater operation. It delivers a no-load speed of 33 rpm and a rated torque of 2.5 N·m.
Specification
- Manufacturer Part Number: 39LS82-24V-WG239
- Rated Voltage: 24 VDC
- Rated Power: 30 W
- Reduction Ratio: 239:1
- Rated Torque: 2.5 N-m
- No-load Speed: 33 RPM
- Rated Speed: 26 RPM
- Rated Current: 1.5 A
- Insulation Class: B
- Body Length: 140.2 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 15 mm
- D-cut Length: 13 mm
- Weight: 0.4 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 39LS82-24V-WG239 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(N·m) | 2.5 |
| Rated Power(W) | 30 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 26 |
| No-load Speed(RPM) | 33 |
| Insulation Class | B |
| Physical Specification | |
| Protection Class | IP68 |
| Frame Size(mm) | Φ39 |
| Body Length(mm) | 140.2 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 15 |
| Weight(KG) | 0.4 |
