Waterproof IP68 24V 30RPM 28Nm Φ60mm Geared DC Motor 198:1 Planetary Gearbox
- Part Number: 60ZFY107-24V-PG198
- Lead Time: In Stock
- Unit Price: US $125.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

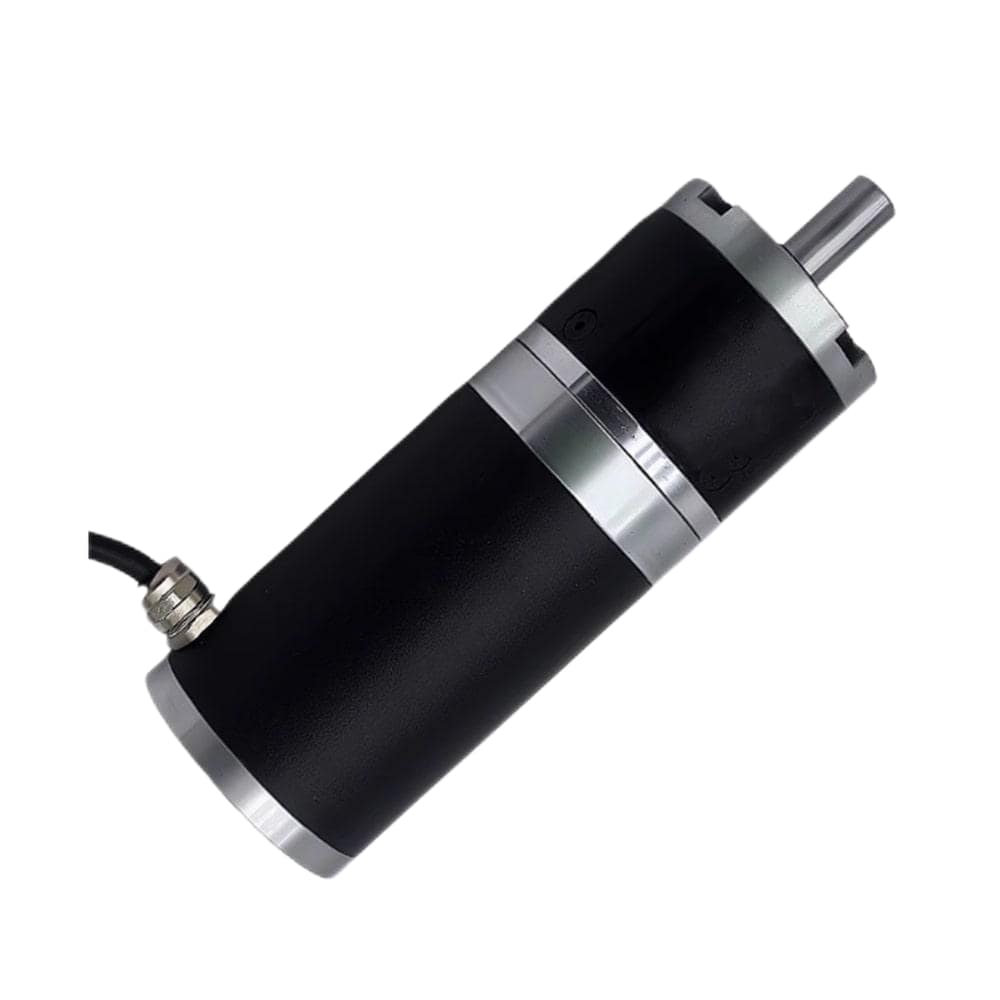

This size 60mm geared DC brushed motor is combined with a planetary gearbox of reduction ratio 198:1 with an IP68 waterproof rating, which means this IP68 geared motor can be directly work under the water.
Specification
- Manufacturer Part Number: 60ZFY107-24V-PG198
- Rated Voltage: 24VDC
- Rated Power: 150W
- Reduction Ratio: 198:1
- Rated Torque: 28Nm
- No-load Speed: 30RPM
- Rated Speed: 20RPM
- Rated Current: 7.3A
- Insulation Class: B
- Body Length: 181.4mm
- Shaft Diameter: Φ12mm
- Shaft Length: 28mm
- Keyway Length: 20mm
- Weight: 2.1KG
Contact Us
| Product Details | |
| Model Number | 60ZFY107-24V-PG198 |
| Product Type | Brushed |
| Electrical Specification | |
| Rated Torque(Nm) | 28 |
| Rated Power(W) | 150 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 20 |
| No-load Speed(RPM) | 30 |
| Insulation Class | B |
| Physical Specification | |
| Protective Grade | IP68 |
| Frame Size(mm) | Φ60 |
| Body Length(mm) | 181.4 |
| Shaft Diameter(mm) | 12 |
| Shaft Length(mm) | 28 |
| Weight(KG) | 2.1 |
L=74.4mm
