Waterproof IP68 24V 133RPM 4.0Nm Φ45mm Geared DC Motor Reduction Ratio 60:1 Worm Gearbox
- Part Number: 45ZFY78-WG60-IP68
- Lead Time: In Stock
- Unit Price: US $69.50
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

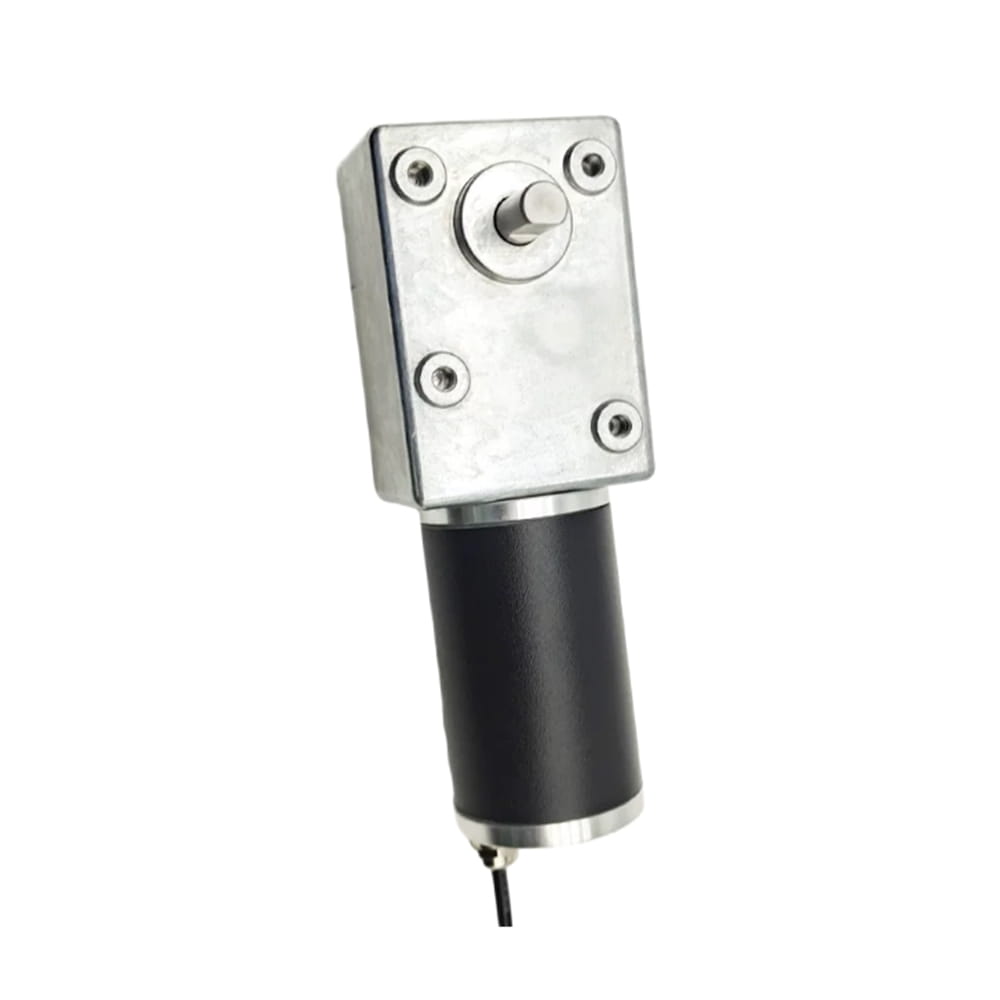

This size 45mm geared DC brushed motor is combined with a 5882 worm gearbox of reduction ratio 60:1 under an IP68 waterproof rating, which means this IP68 geared motor can directly work in the water.
Specification
- Manufacturer Part Number: 45ZFY78-WG60-IP68
- Rated Voltage: 24VDC
- Rated Power: 100W
- Reduction Ratio: 60:1
- Rated Torque: 4.0Nm
- No-load Speed: 133RPM
- Rated Speed: 127RPM
- Rated Current: 5.0A
- Insulation Class: B
- Body Length: 160.5mm
- Shaft Diameter: Φ10mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Weight: 1.2KG
Contact Us
| Product Details | |
| Model Number | 45ZFY78-WG60-IP68 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 4.0 |
| Rated Power(W) | 100 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 127 |
| No-load Speed(RPM) | 133 |
| Insulation Class | B |

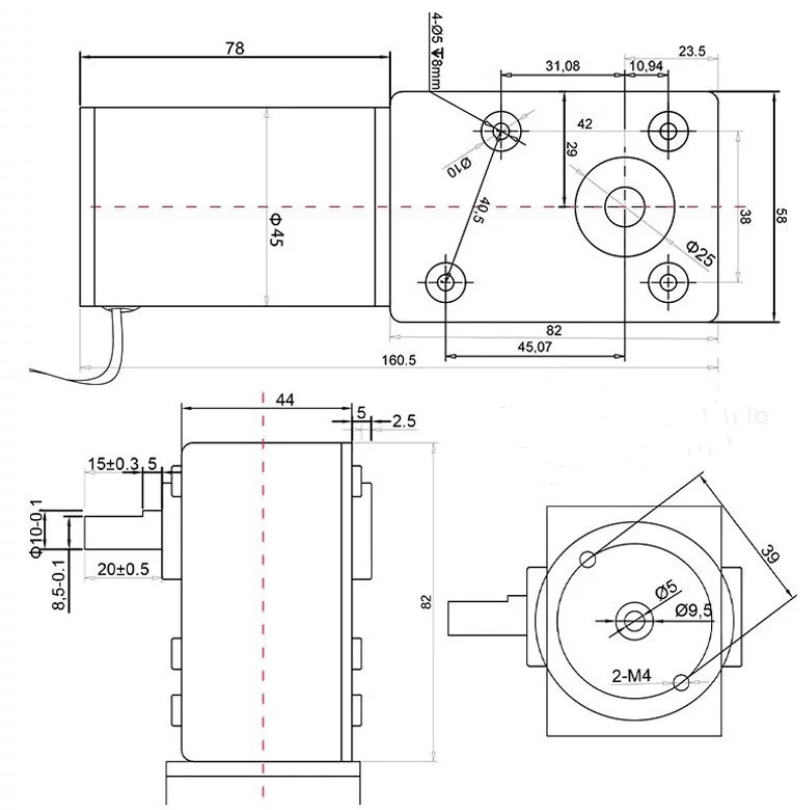

| Physical Specification | |
| Protective Grade | IP68 |
| Frame Size(mm) | Φ45 |
| Body Length(mm) | 160.5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 20 |
| Weight(KG) | 1.2 |
