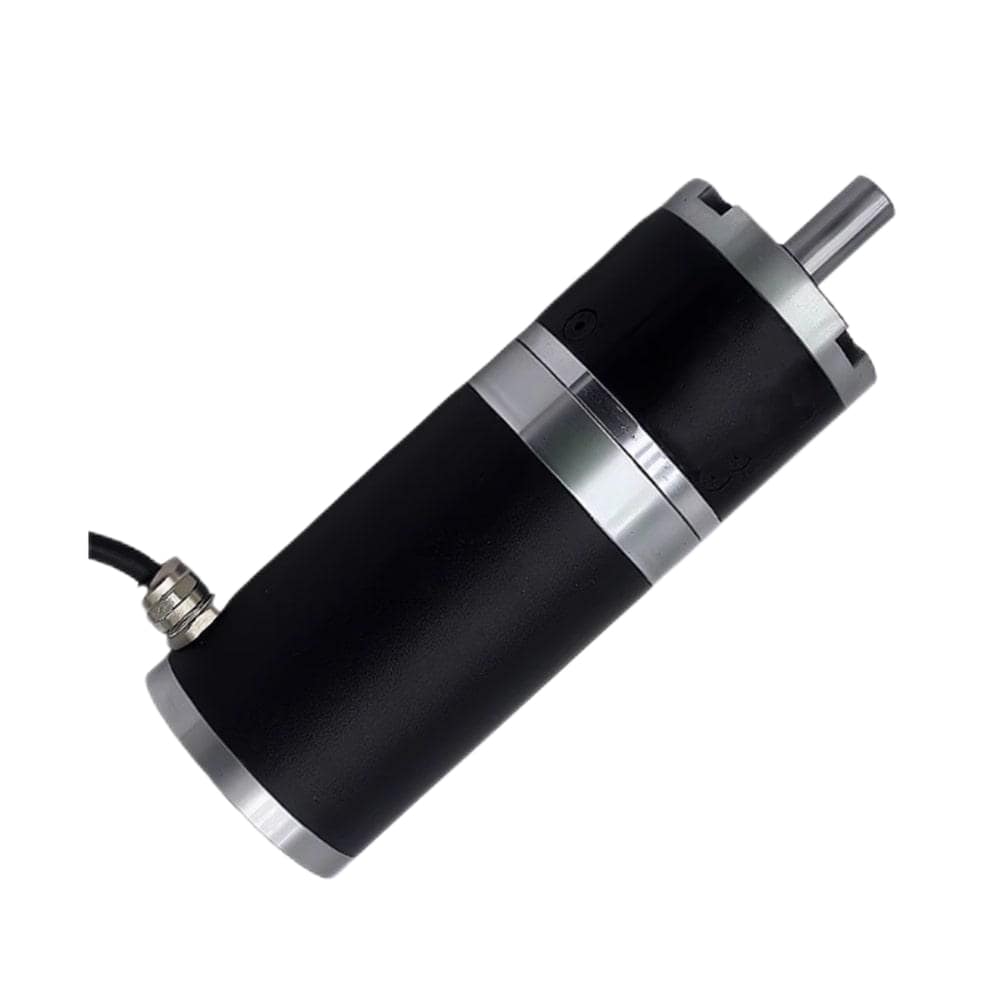

Waterproof IP68 24V 125RPM 8.0 N-m Φ60mm Geared DC Motor 47:1 Planetary Gearbox
- Part Number: 60ZFY107-24V-PG47
- Lead Time: In Stock
- Unit Price: US $125.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This strong 60 mm brushed DC gear motor integrates a 47:1 planetary gearbox and features an IP68 waterproof rating, allowing it to operate directly underwater. It delivers a no-load speed of 125 RPM and a rated torque of 8.0 N·m.
Specification
- Manufacturer Part Number: 60ZFY107-24V-PG47
- Rated Voltage: 24 VDC
- Rated Power: 150 W
- Reduction Ratio: 47:1
- Rated Torque: 8.0 N-m
- No-load Speed: 125 RPM
- Rated Speed: 110 RPM
- Rated Current: 7.0 A
- Insulation Class: B
- Body Length: 170.1 mm
- Shaft Diameter: Φ12 mm
- Shaft Length: 28 mm
- Keyway Length: 20 mm
- Weight: 2.0 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 60ZFY107-24V-PG47 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(N·m) | 8.0 |
| Rated Power(W) | 150 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 110 |
| No-load Speed(RPM) | 125 |
| Insulation Class | B |
| Physical Specification | |
| Protection Class | IP68 |
| Frame Size(mm) | Φ60 |
| Body Length(mm) | 170.1 |
| Shaft Diameter(mm) | 12 |
| Shaft Length(mm) | 28 |
| Weight(KG) | 2.0 |
L=63.1mm
