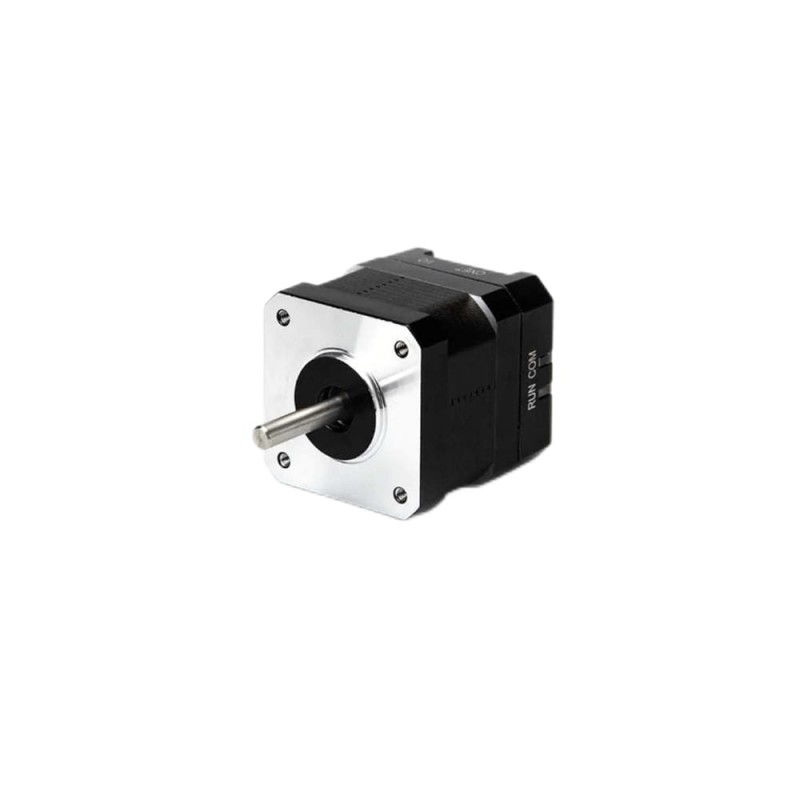

STM42 Integrated Stepper Servo Motor NEMA 17 Closed-loop CANopen 0.7Nm 24V Drive & 17-bit Absolute Encoder
- Part Number: STM4260B-CANopen
- Lead Time: In Stock
- Unit Price: $188.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
The STM42M series CANopen & RS485 communication integrated stepper servo motor is a high-performance, low-power stepper servo product independently developed by the NIMOTION. It features a closed-loop control system and an integrated design that combines a stepper motor, magnetic encoder, driver, and digital I/O into a single unit. The highly integrated stepper motors supports CANopen and RS485 communication bus control, and are characterized by a compact size and simplified wiring. The NIMOTION is intended to offer customers a broader range of motion control solutions through its performance, quality, and cost-effectiveness.
Specification
- Part Number: STM4260B-CANopen
- Holding Torque: 0.7Nm/99.4oz.in
- Input Voltage: 12-36V DC
- Rated Voltage: 24V DC
- Rated Current: 2.0A
- Encoder Type: 17-bit Magnetic(Single-turn Absolute)
- Encoder Features: Multi-turn absolute counting with automatic data storage on power failure
- Modbus Mode: CANopen
- Frame Size: 42x42mm
- Overall Length: 78.5mm
- Shaft Diameter: Φ5m
- Shaft Length: 24mm
- D-cut Length:15mm
- Weight: 0.52kg
Please feel free to contact us for more details about this dedicated integrated motor.
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.7 |
| Holding Torque(oz.in) | 99.4 |
| Drive Integrated | Yes |
| Input Voltage(V) | 12-36 |
| Encoder Feedback | Yes |
| Encoder Type | Absolute |
| Modbus Type | CANopen |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Overall Length(mm) | 78.5 |
| Weight(KG) | 0.52 |

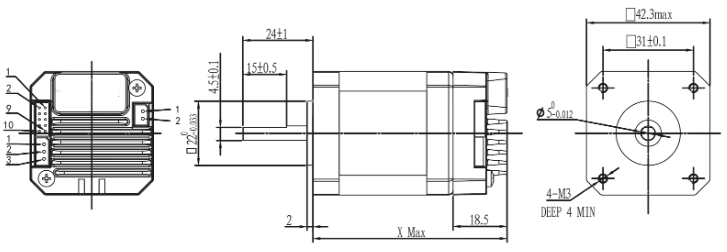

X=78.5mm
