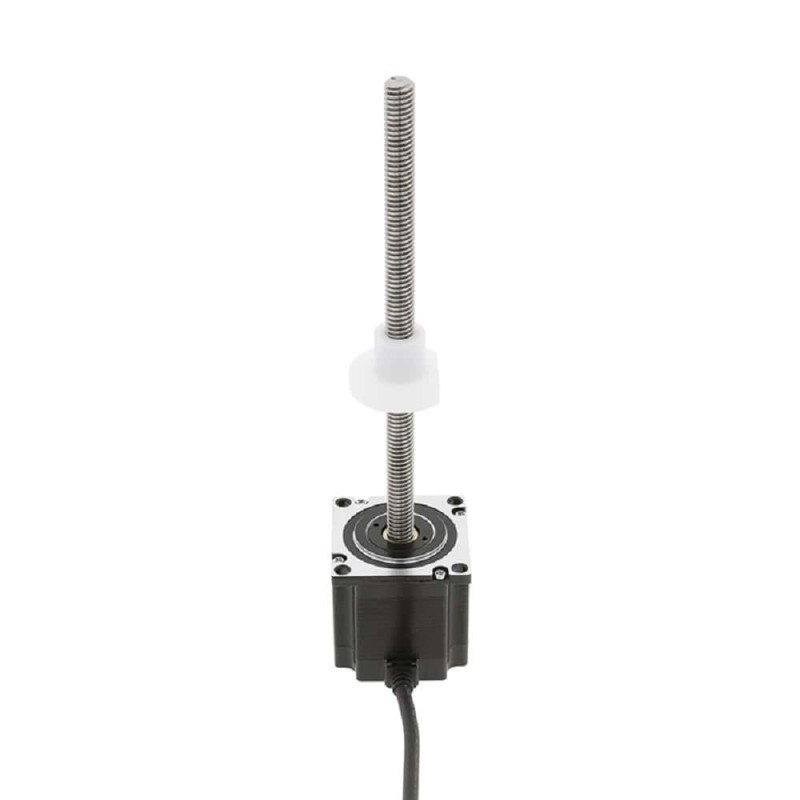

Size 57mm NEMA 23 External Linear Actuator Stepper Motor Single Stack 3.0A Lead 3.175mm Screw Length 150mm
- Part Number: 57LS45-3004E-150L3.175
- Lead Time: Two Weeks
- Unit Price: $70.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm (NEMA 23) External type lead screw stepper linear actuator with single stack provides high performance, a long operation cycle, and offers upto 910N of continuous thrust. It is integrated with with a Φ9.525mm diameter 150mm length lead screw and a POM screw nut. The lead screw's linear travel is 3.175mm per revolution or 0.015875mm per step.
Electrical Specification
- Part Number: 57LS45-3004E-150L3.175
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.75Nm/106.5oz.in
- Rated Current/phase: 3.0A
- Driving Voltage: 24-72V
Physical Specification
- Frame Size: 57x57mm
- Body Length: 45mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ9.525mm
- Lead /Step: 0.015875mm
- Lead/Revolution: 3.175mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.6kg
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.75 |
| Holding Torque(oz.in) | 106.5 |
| Rated Current(A) | 3.0 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 45 |
| Driving Voltage(VDC) | 24-72 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Travel/Revolution(mm) | 3.175 |
| Lead Travel/Step(mm) | 0.015875 |
