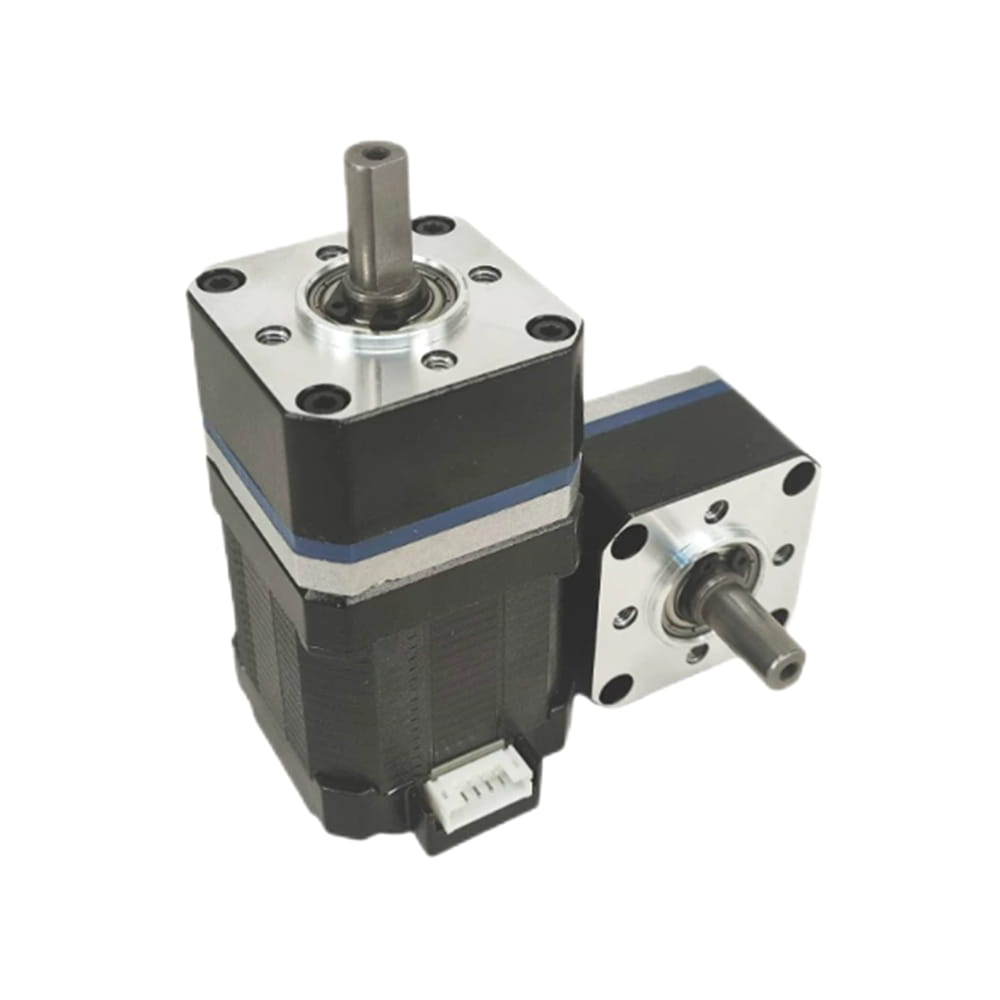

Size 42mm NEMA 17 High Precision Cycloidal Drive Gearbox Stepping Motor 3arcmin 12V/24V 0-40RPM 11Nm
- Part Number: TS4230M4N
- Lead Time: In Stock
- Unit Price: US $94.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This compact size 42mm (NEMA 17) precise geared reduction stepper motor has integrated with a high-precision & low backlash 3arcmin cycloidal drive planetary gearbox of 30:1 gear ratio, which can generate a torque otuput upto 11Nm and a low speed range 0-40RPM. It's an ideal solution to the applications that require limited space but low speed or high torque with precision positioning. The ditigal geared stepper drive M332C can be used for controlling this motor.

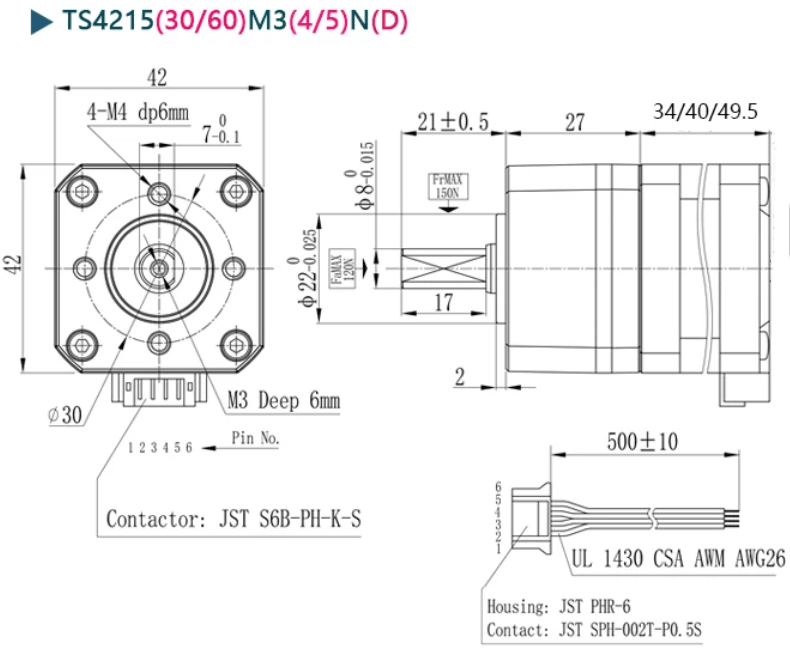

TS4260M5N Specification
- Manufacturer Part Number: TS4230M4N
- Step Angle: 0.06deg
- Bi/Unipolar: Bipolar
- Holding Torque: 11Nm
- Rated Current/phase: 1.7A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Body Length: 67mm
- Number of Leads: 4
- Lead Length: 500mm
- Gearbox Type: Cycloidal Planetary
- Gear Ratio: 30:1
- Efficiency: 96%
- Backlash at No-load: <=3arcmin
- Output Shaft Diameter: Φ8mm
- Out Shaft Length: 21mm
- Weight: 0.5KG
Connection
- Brown: A+, Orange: A-, Red: B+, Yellow: B-
Contact Us
| Product Details | |
| Model Number | TS4230M4N |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 0.06 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 11 |
| Rated Current(A) | 1.7 |
| Driving Voltage(VDC) | 12-24 |
| Body Length(mm) | 67 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
