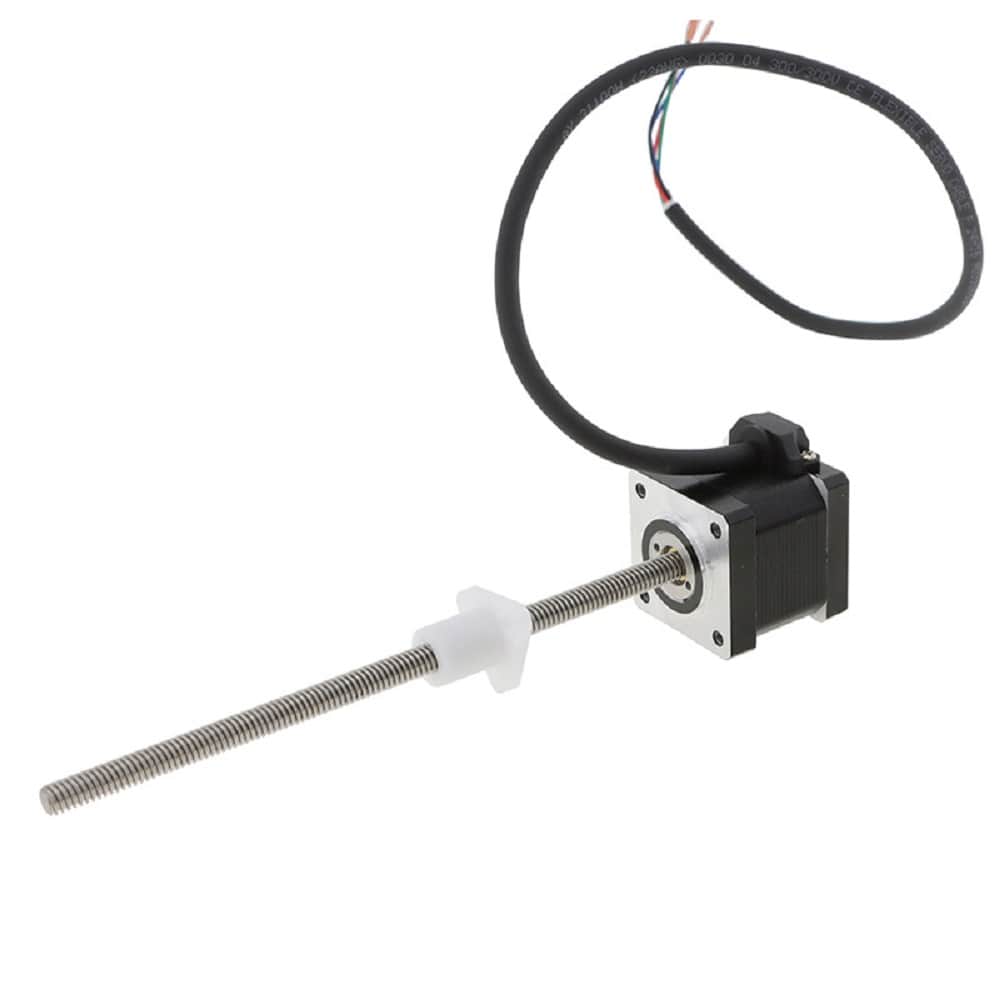

Size 42mm NEMA 17 External Linear Actuator Stepper Motor Single Stack 1.5A Lead 5.08mm Screw Length 150mm
- Part Number: 42LS34-1504E-150L5.08
- Lead Time: Two Weeks
- Unit Price: $60.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 42mm (NEMA 17) External type lead screw stepper linear actuator with single stack provides high performance, a long operation cycle, and offers upto 320N of continuous thrust. It is integrated with with a Φ6.35mm diameter 150mm length lead screw and a POM screw nut. The lead screw's linear travel is 5.08mm per revolution or 0.0254mm per step.
Electrical Specification
- Part Number: 42LS34-1504E-150L5.08
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.25Nm/35.5oz.in
- Rated Current/phase: 1.5A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 42x42mm
- Body Length: 34mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ6.35mm
- Lead /Step: 0.0254mm
- Lead/Revolution: 5.08mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.3kg
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.25 |
| Holding Torque(oz.in) | 35.5 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
