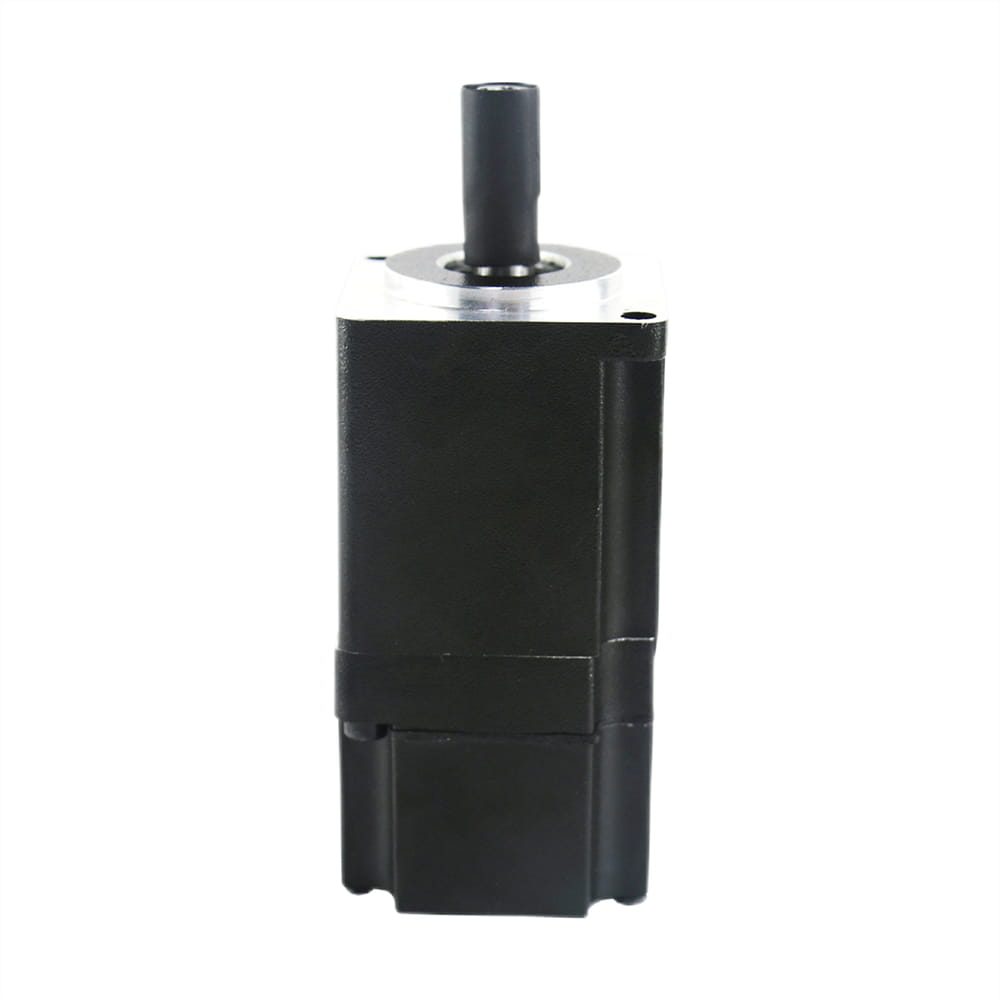

Size 40mm 100W DC Servo Motor 48V 0.32Nm 3000RPM 17Bit Absolute Encoder IP65 Electromagnetic Brake
- Part Number: 40M00330DC48YS
- Lead Time: In Stock
- Unit Price: US $115.00
- *Ship from China
This 40 mm DC servo motor with electromagnetic brake (40M00330DC48YS) delivers 0.32 N·m of rated torque (0.64 N·m peak) at 3000 RPM, powered by 48 VDC with a rated current of 3.7 A. It features a built-in 17-bit absolute multi-turn encoder, a 5-pole design, F-class insulation, and IP65 protection, plus an integrated 24 VDC electromagnetic brake rated at 6.0 N·m holding torque for safe power-off position locking. The brake-equipped version measures 112.5 mm in body length (versus 79.5 mm without brake) within a 40 × 40 mm frame, with an 8 mm shaft (25 mm length) and a weight of 0.85 kg. Its high-resolution feedback, sealed construction, and fail-safe braking make it well suited to space-constrained motion axes requiring position retention on power loss, such as compact robotic joints, medical and laboratory automation, semiconductor handling equipment, automated optical inspection stages, and precision rotary actuators in demanding environments.
Size 40mm 100W DC Servo Motor 48V 0.32Nm 3000RPM 17Bit Absolute Encoder IP65 Electromagnetic Brake
- Manufacturer Part Number: 40M00330DC48YS
- Rated Power: 100 W
- Rated Voltage: 48 VDC
- Rated Torque: 0.32 Nm
- Peak Torque: 0.64 Nm
- Rated Current: 3.7 A
- Rated Speed: 3000 RPM
- Torque Const: 0.09 Nm/A
- Line-line Resistance: 1.22 ohms
- Line-line Inductance: 1.15 mH
- Rotor Inertia: 0.053 kg·m²x10⁻⁴
- Encoder: 17Bit Absolute Multi-Turn
- Insulation Class: F
- Protection Level: IP65
- Brake Torque: 6.0 Nm
- Brake Voltage: 24 VDC
- Frame Size: 40x40 mm
- Body Length: 112.5 mm
- Shaft Diameter: 8 mm
- Shaft Length: 25 mm
- Weight: 0.85 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 40M00330DC48YS |
| Product Type | DC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VDC) | 48 |
| Rated Current(A) | 3.7 |
| Rated Power(W) | 100 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(N·m) | 0.32 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 17bit |
| With Brake | Yes |
| Servo Physical Specification | |
| Frame Size(mm) | 40x40 |
| Body Length(mm) | 112.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.85 |

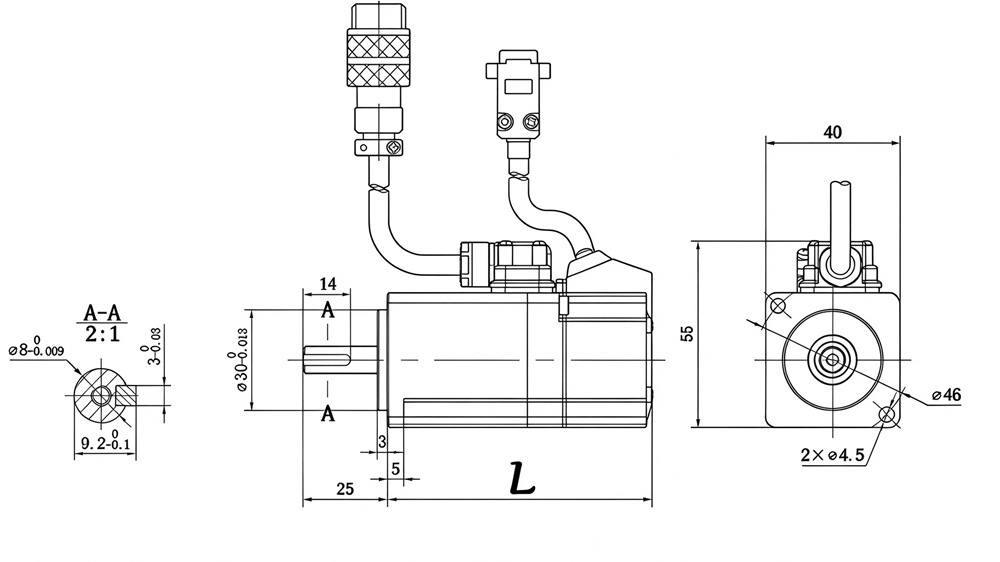

L=112.5mm
