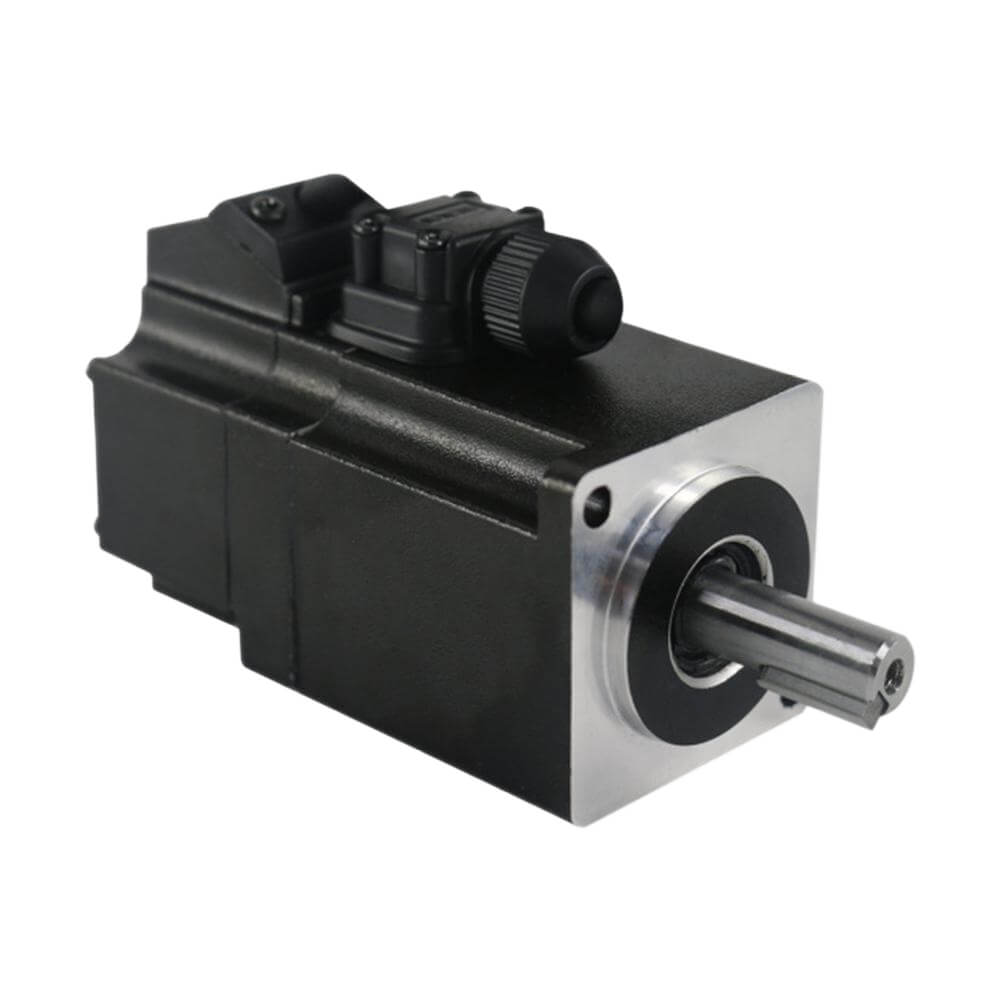

Size 40mm 100W DC Servo Motor 24V 0.32Nm 3000RPM 17Bit Absolute Encoder IP65
- Part Number: 40M00330DC24
- Lead Time: In Stock
- Unit Price: US $85.00
- *Ship from China
This 40 mm DC servo motor (40M00330DC24) delivers 0.32 N·m of rated torque (0.64 N·m peak) at 3000 RPM, powered by 48 VDC with a rated current of 6.5 A. It features a built-in 17-bit absolute multi-turn encoder for high-precision servo control, a 5-pole design, F-class insulation, and IP65 protection, housed in a 40 × 40 mm frame with a 79.5 mm body length, an 8 mm shaft (25 mm length), and a weight of 0.65 kg. Its high-resolution feedback and sealed construction make it well suited to space-constrained motion axes in compact robotic joints, medical and laboratory automation, semiconductor handling equipment, automated optical inspection stages, and precision rotary actuators requiring reliable positioning in demanding environments.
40mm 100W DC Servo Motor 24V 0.32Nm 3000RPM 17Bit Absolute Encoder IP65
- Manufacturer Part Number: 40M00330DC24
- Rated Power: 100 W
- Rated Voltage: 24 VDC
- Rated Torque: 0.32 Nm
- Peak Torque: 0.64 Nm
- Rated Current: 6.5 A
- Rated Speed: 3000 RPM
- Torque Const: 0.05 Nm/A
- Line-line Resistance: 0.4 ohms
- Line-line Inductance: 0.38 mH
- Rotor Inertia: 0.053 kg·m²x10⁻⁴
- Encoder: 17Bit Absolute Multi-Turn
- Insulation Class: F
- Protection Level: IP65
- Frame Size: 40x40 mm
- Body Length: 79.5 mm
- Shaft Diameter: 8 mm
- Shaft Length: 25 mm
- Weight: 0.65 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 40M00330DC24 |
| Product Type | DC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VDC) | 24 |
| Rated Current(A) | 6.5 |
| Rated Power(W) | 100 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(N·m) | 0.32 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 17bit |
| With Brake | No |
| Servo Physical Specification | |
| Frame Size(mm) | 40x40 |
| Body Length(mm) | 79.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.65 |
L=79.5mm
