Robot Stepping Motor Size 28-52mm NEMA 11 with Gear Ratio 20:1 Short Precision Planetary Gearbox
- Part Number: 28HB52-1004S-KGC20
- Lead Time: In Stock
- Unit Price: US $85.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

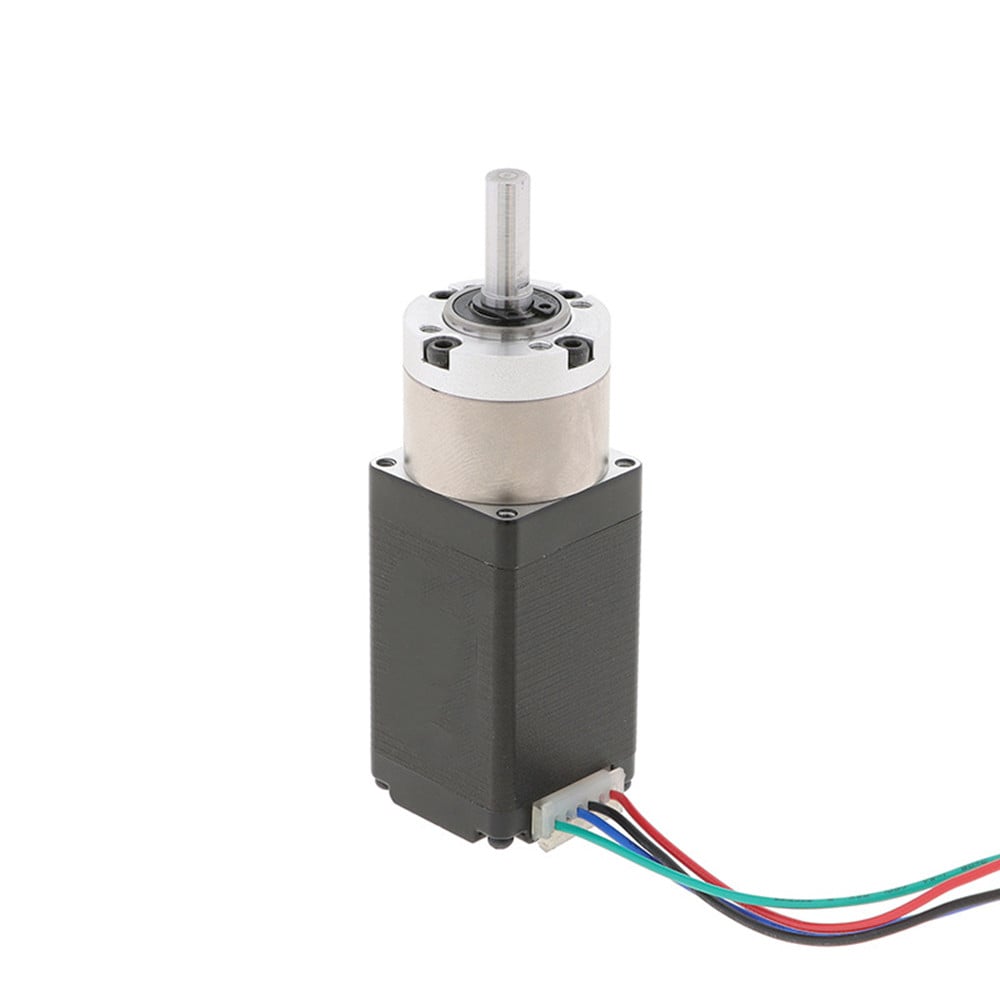

This small robot stepping motor is a size 28mm NEMA 11 geared reduction stepper motor integrated with a high precision & low backlash short circle planetary gearbox of 20:1 gear ratio, generating a strong holding torque output upto 2.2Nm & a low speed 0-50rpm. It's an ideal solution to the applications that require limited space but low speed or high torque. The digital stepper drive M322C is used for controlling this motor.
Motor Specification
- Manufacturer Part Number: 28HB52-1004S-KGC20
- Step Angle: 1.8deg without gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm without gearbox
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V
- Frame Size: 28x28mm
- Motor Length: 52mm
- Number of Leads: 4
- Lead Length: 500mm

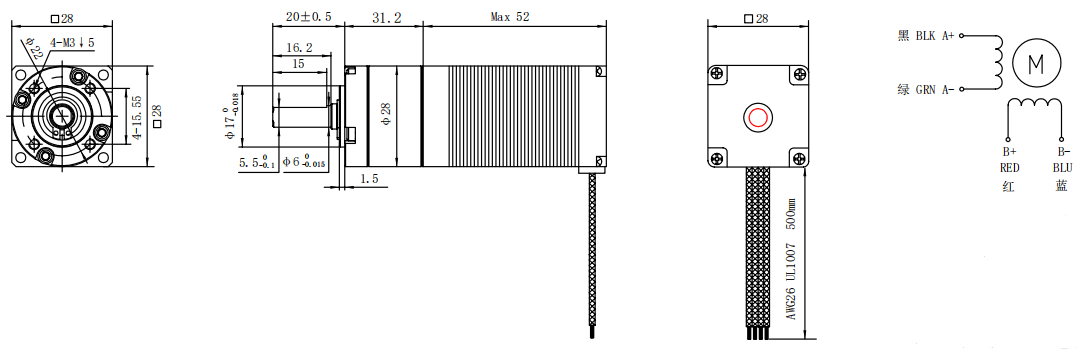

Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 20:1
- Efficiency: 94%
- Backlash at No-load: 20arcmin
- Gearbo Length: 31.2mm
- Shaft Diameter: Φ6mm
- Shaft Length: 20mm
- D-cut Length: 15mm
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 28HB52-1004S-KGC20 |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 52 |
| Gearbox Specification | |
| Gearbox Type | Precision Planetary |
| Gear Ratio | 20:1 |
| Gearbox Efficiency | 94% |
| Backlash at No-load | 20arcmin |
| Gearbox Length(mm) | 31.2 |
| Output Shaft Diameter(mm) | 6 |
| Output Shaft Length(mm) | 20 |
