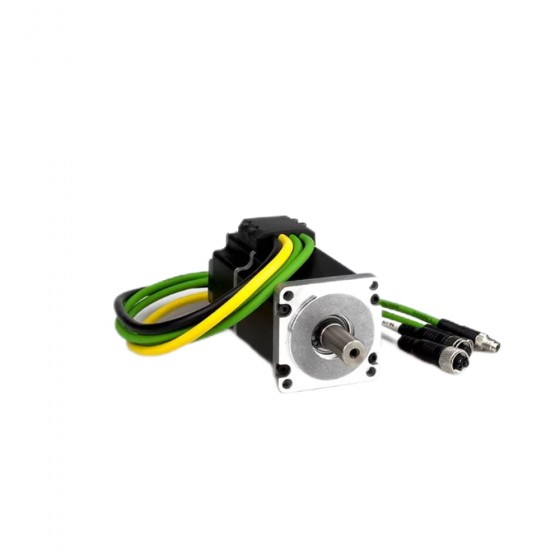

PSM6040D Integrated Low Voltage DC Servo Motor 60mm CANopen 3000RPM 400W 1.27Nm 48V Drive & 17-bit Absolute Encoder

Part Number: PSM6040D-CANopen
Lead Time: In Stock
Unit Price: $410.00

*Ship from China

- +

Tags: PSM6040D Integrated Low Voltage Servo Motor 60mm 1.27Nm 3000RPM 400W 48VDC Drive 17-bit Absolute Encoder RS485 CANopen EtherCAT

The PSM6040D series integrated low-voltage servo motor is a servo enginer independently developed by NIMOTION. Based on the concept of highly integrated development, this intelligent servo motor integrates a permanent magnet synchronous motor, a magnetic encoder, a servo drive controller, and digital I/O into a single unit. It supports CANopen and RS485 bus control and features a compact design with simple wiring. We hope that our product, with its superior performance, excellent quality, and outstanding cost-effectiveness, will help you achieve the motion control you desire.

Specification

Part Number: PSM6040D-CANopen
Holding Torque: 1.27Nm
Rated Voltage: 48V DC
Rated Current: 12.0A
Encoder Type: 17-bit Magnetic(multi-turn absolute)
Modbus Mode: CANopen
Frame Size: 60x60mm
Overall Length: 144mm
Shaft Diameter: Φ14m
Shaft Length: 30mm
Keyway Length: 16mm
Weight: 1.6kg

Please feel free to contact us for more details about this dedicated integrated motor.

Contact Us

Your Name

E-Mail Address

Enquiry

Electrical Specification
Rated Power(W)	400
Drive Integrated	Yes
Encoder Feedback	Yes
Encoder Type	Absolute
Modbus Type	CANopen
Rated Torque(Nm)	1.27
Rated Speed(RPM)	3000
Rated Voltage(VDC)	48
Physical Specification
Frame Size(mm)	60x60
Shaft Diameter(mm)	14
Shaft Length(mm)	30
Overall Length(mm)	144
Weight(KG)	1.6

X=144mm
