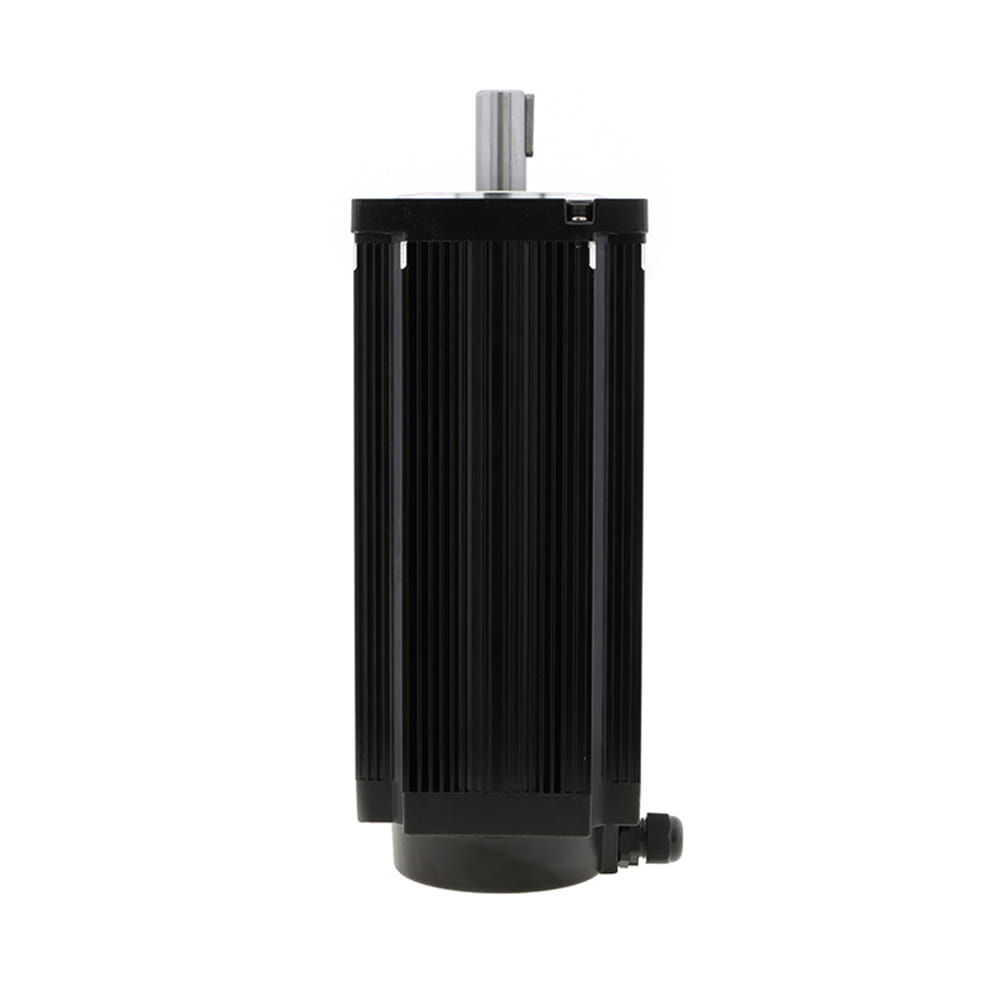

3 Phase 130mm NEMA 51 Stepper Motor 1.2 deg 24 N-m/28 N-m/35 N-m/50N-m/60 N-m IP65
- Part Number: 130HS252-8503S
- Lead Time: In Stock
- Unit Price: US $160.00
- *Ship from China
Holding Torque
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
Compared to the 2 phase stepper motor, the 3 phase stepper motor has a smaller step angle 1.2 degree (300 steps/revolution), which creates a more balanced rotating magnetic field. It has key advantages of smoother motion, higher resolution, better microstepping, less resonance and overshoot, improved high-speed, performance, better torque utilization, lower noise. Frankhumotor's 130mm (NEMA 51) 3-phase stepper motors are preferred where smoothness, precision, low vibration, and quiet operation matter—such as CNC, robotics, medical, and semiconductor equipment.
General Specifications
- Temperature Rise ……………… 85K Max
- Ambient Temperature ……………… -40°C to +55°C
- Insulation Class ……………… Class B
- Insulation Resistance ……………… 500VDC 100MΩ Min
- Dielectric Strength ……………… 1000VAC 50Hz 1mA Min
| Model Number | Phase Number |
Step Angle (deg.) |
Holding Torque (N-m) |
Rated Current (A) |
Working Voltage (AC) |
Body Length (mm) |
Weight (kg) |
| 130HS188-8503S | 3 | 1.2 | 24 | 8.5 | 110-220 | 188 | 9 |
| 130HS220-8503S | 3 | 1.2 | 28 | 8.5 | 110-220 | 220 | 12.5 |
| 130HS252-8503S | 3 | 1.2 | 35 | 8.5 | 110-220 | 252 | 16.5 |
| 130HS281-8503S | 3 | 1.2 | 50 | 8.5 | 110-220 | 281 | 18 |
| 130HS315-8503S | 3 | 1.2 | 60 | 8.5 | 110-220 | 315 | 21 |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
- Custom Design
- Brake
- Cable & Connector
- Encoder
- Gearbox
- Insulation Class
- Output Shaft
- Waterproof Level
