Pancake Stepper Motor NEMA 11 Bipolar 1.8deg 0.5A 0.016Nm/2.27oz.in Φ28x9.5mm 4 Wires
- Part Number: 28HR09-0504A
- Lead Time: In Stock
- Unit Price: US $15.00
- Sales: 120
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 28mm pancake NEMA 11 stepper motor has a ultrathin body length 9.5mm, each phase draws 0.5A current and 0.016Nm/2.27oz.in holding torque. A diameter Φ4mm with length 10mm output shaft is available.
Electrical Specification
- Manufacturer Part Number: 28HR09-0504A
- Step Angle: 1.8deg
- Bi/UnIpolar: Bipolar
- Holding Torque: 0.016Nm(2.27oz.in)
- Rated Current/phase: 0.5A
- Phase Resistance: 3.5ohms
- Inductance: 0.9mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: Φ28mm
- Body Length: 9.5mm
- Shaft Type: Round
- Shaft Diameter: Φ4mm
- Shaft Length: 10mm
- Number of Leads: 4
- Lead Length: 75mm
- Weight: 30g
Connection

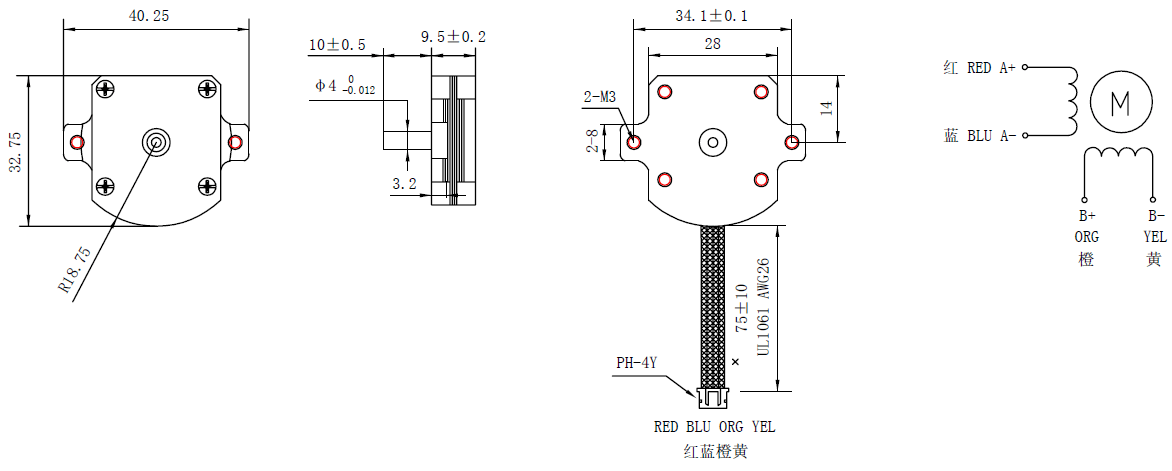

- Red: A+, Blue: A-, Orange: B+, Yellow: B-
Contact Us
| Product Details | |
| Model Number | 28HR09-0504A |
| Product Type | Pancake Stepper Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.016 |
| Rated Current(A) | 0.5 |
| Driving Voltage(VDC) | 12-24 |
| Stepper Physical Specification | |
| Frame Size(mm) | Φ28 |
| Body Length(mm) | 9.5 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10 |
| No. of Leads | 4 |
| Lead Length(mm) | 75 |
| Weight(KG) | 0.03 |
