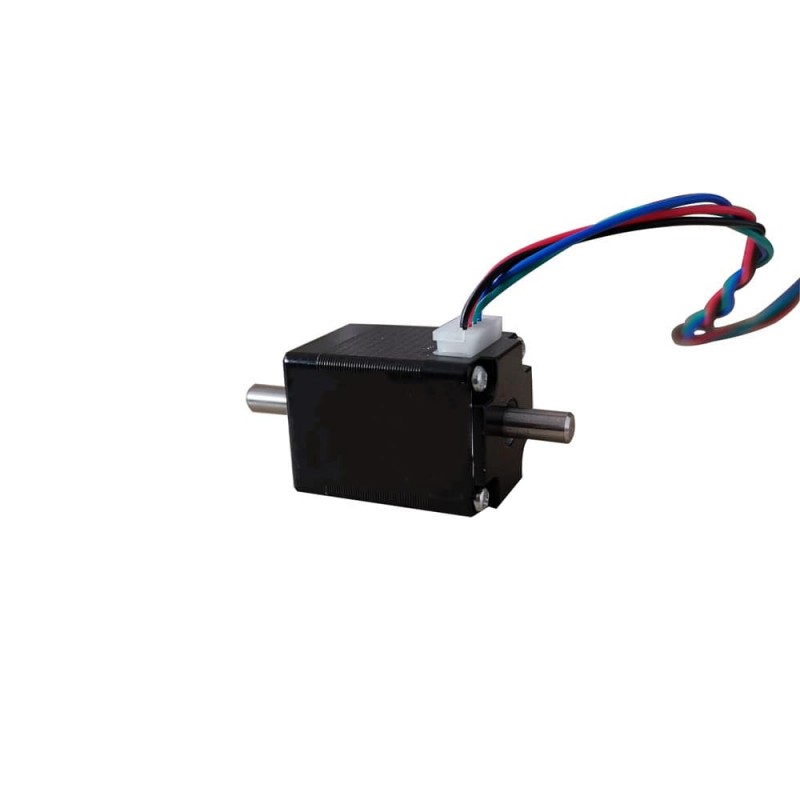

NEMA 8 Dual Shaft Stepper Motor 1.8deg 0.6A 0.015Nm/2.13oz.in 20x28mm with Rear Shaft
- Part Number: 20HS28-0604D
- Lead Time: In Stock
- Unit Price: $15.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This small hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution), each phase draws current 0.6A, allowing for a holding torque of 0.015/2.13oz.in. A length of 8mm rear shaft is available. Please noet this motor has a 15.4mm bolt spacing & 16.0mm pilot circle.
Electrical Specification
- Part Number: 20HS28-0604D
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.015Nm/2.13oz.in
- Rated Current/phase: 0.6A
- Phase Resistance: 3.2ohms
- Inductance: 0.9mH
- Driving Voltage: 12-24VDC

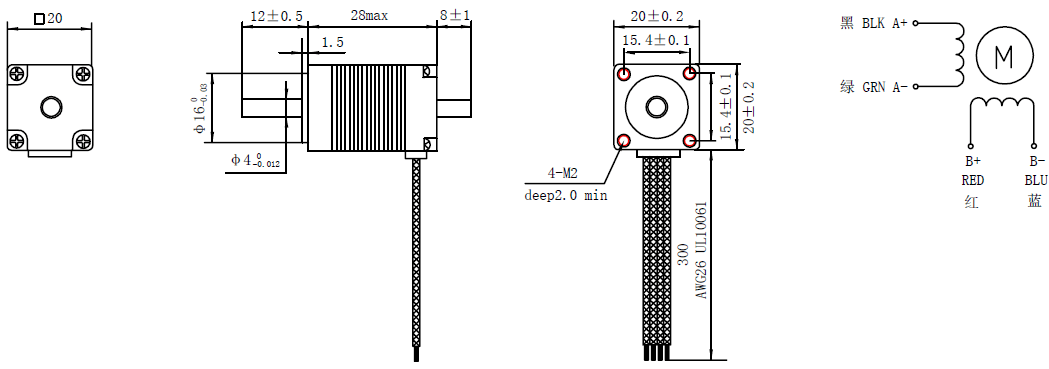

Physical Specification
- Frame Size: 20x20mm
- Body Length: 28mm
- Shaft Type: Round
- Shaft Diameter: Φ4mm
- Front Shaft Length: 12mm
- Rear Shaft Length: 8mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 60g
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.015 |
| Holding Torque(oz.in) | 2.13 |
| Rated Current(A) | 0.6 |
| Phase Resistance(ohm) | 3.2 |
| Phase Inductance(mH) | 0.9 |
| Physical Specification | |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 28 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Front Shaft Diameter(mm) | 4 |
| Front Shaft Length(mm) | 12 |
| Rear Shaft Diameter(mm) | 4 |
| Rear Shaft Length(mm) | 8 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.08 |
