Stepper Motor NEMA 8 Bipolar 1.8deg 4.0Ncm 0.6A 20x20x38mm 8HS15-0604S
- Part Number: 8HS15-0604S
- Lead Time: In Stock
- Unit Price: US $11.90
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

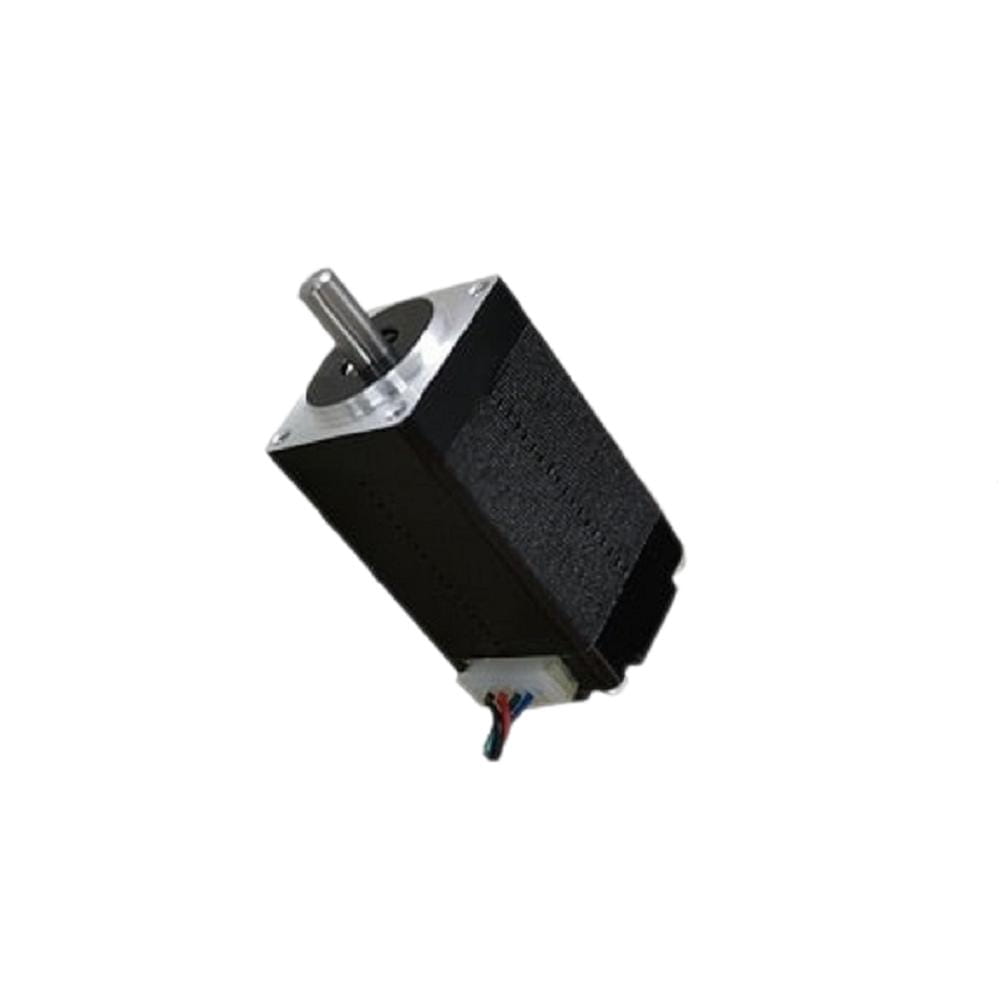

This small but strong engine is a bipolar NEMA 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A with holding torque 4.0Ncm.
Electrical Specification
- Manufacturer Part Number: 8HS15-0604S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 4.0Ncm
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V

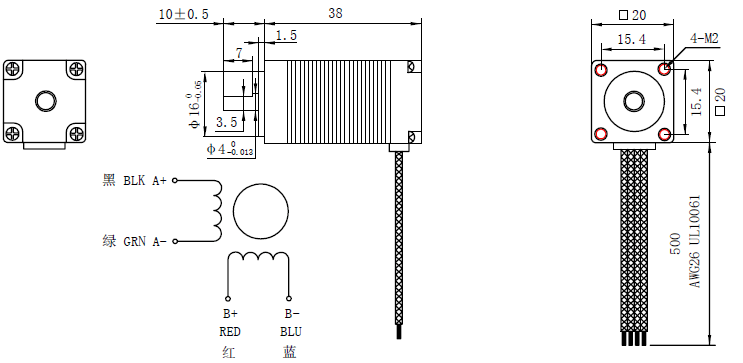

Physical Specification
- Frame Size: 20x20mm
- Body Length: 38mm
- Shaft Diameter: Φ4mm
- Shaft Length: 10mm
- D-cut Length: 7mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.08kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 8HS15-0604S |
| Product Type | Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.4 |
| Rated Current(A) | 0.6 |
| Driving Voltage(VDC) | 12-24 |
| Stepper Physical Specification | |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.08 |
