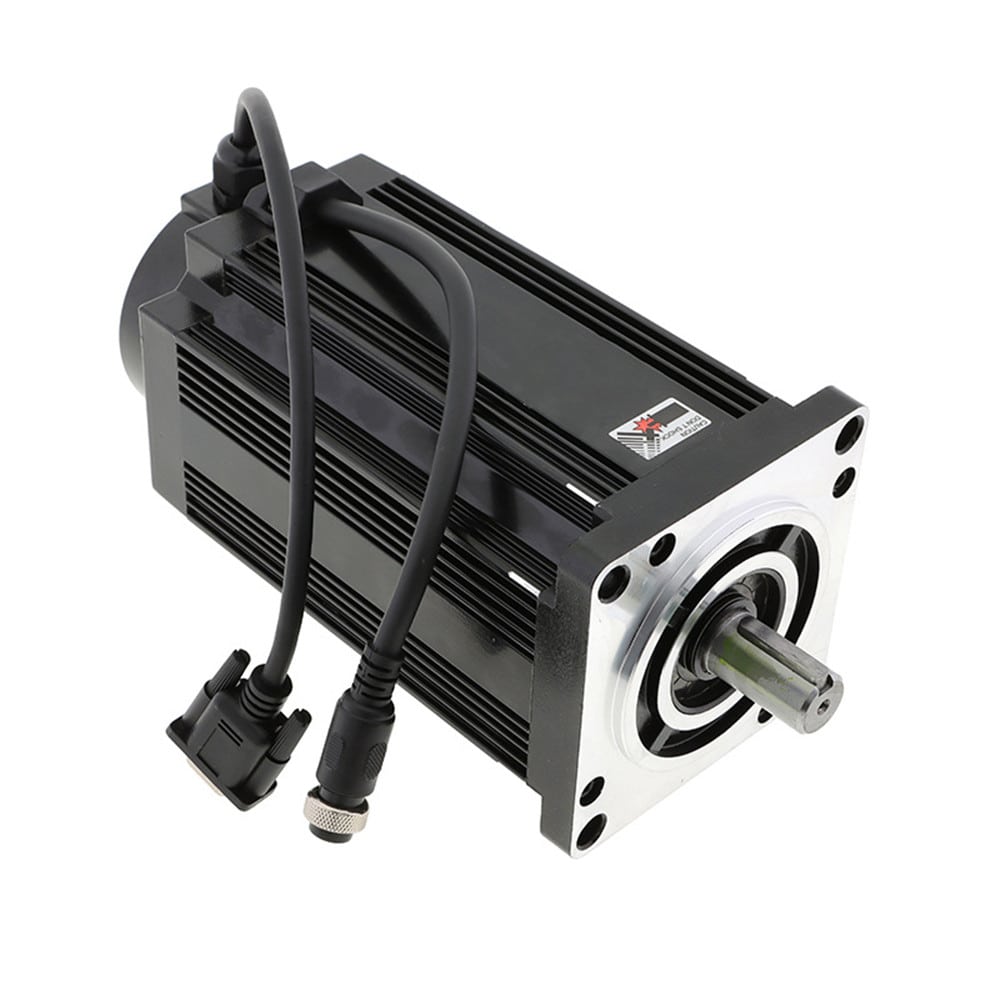

NEMA 42 Stepper Servo Motor 6.8A 20Nm/2840oz.in with 1000PPR Encoder
- Part Number: 110HB223-6803D-E1000
- Lead Time: Pre-Order
- Unit Price: US $199.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This large servo motor is a NEMA 42 closed loop stepper motor, equipped with an 1000PPR incremental optical encoder, has a rated current of 6.8A and a holding torque of 20Nm/2840oz.in. Compared with open loop stepper motors, it performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors.

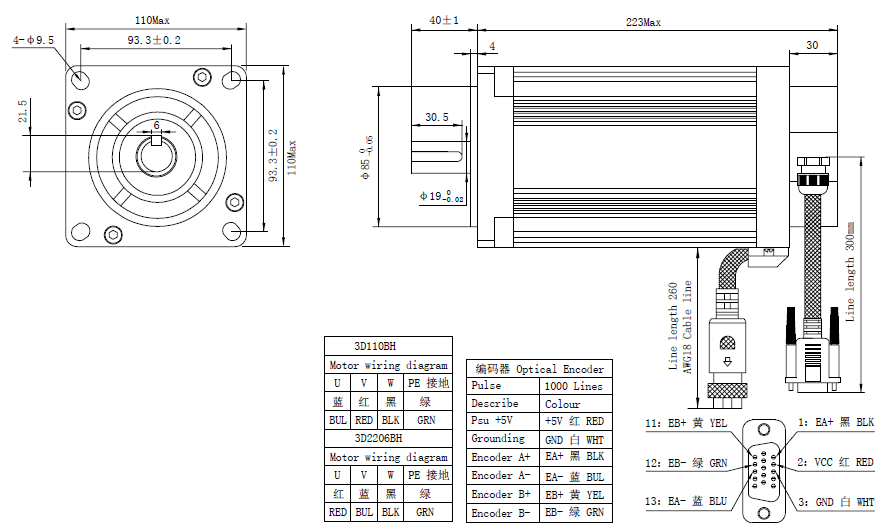

Motor Specification
- Manufacturer Part Number: 110HB223-6803D-E1000
- Step Angle: 1.2deg
- Holding Torque: 20Nm/2840oz.in
- Rated Current: 6.8A
- Driving Voltage: 110-220VAC
- Frame Size: 110x110mm
- Body Length: 223mm
- Shaft Diameter: Φ19mm
- Shaft Length: 40mm
- Keyway Length: 30.5mm
- Number of Leads: 3
- Lead Length: 1000mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 1000mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 130HB282-8203D-E1000 |
| Product Type | Stepper Servo Motor |
| Lead Time | One Week |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.2 |
| Holding Torque(Nm) | 20 |
| Rated Current(A) | 6.8 |
| Driving Voltage(VAC) | 110-220 |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 223 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 40 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
| Supply Voltage(VDC) | 5.0 |
