NEMA 42 CNC Stepper Motor Bipolar 1.8deg 8.0A 30Nm/4260oz.in 110x201mm 4 Wires
- Part Number: 110HS201-8004S
- Lead Time: In Stock
- Unit Price: US $200.00
- Sales: 11
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is NEMA 42 CNC stepper motor with size 110x110x201mm. It has 4 wires, each phase draws 8.0A with holding torque 30Nm/4260oz.in.
Electrical Specification
- Manufacturer Part Number: 110HS201-8004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 30Nm/4260oz.in
- Rated Current/phase: 8.0A
- Phase Resistance: 0.7ohms
- Inductance: 13.5mH
- Driving Voltage: 110-220VAC

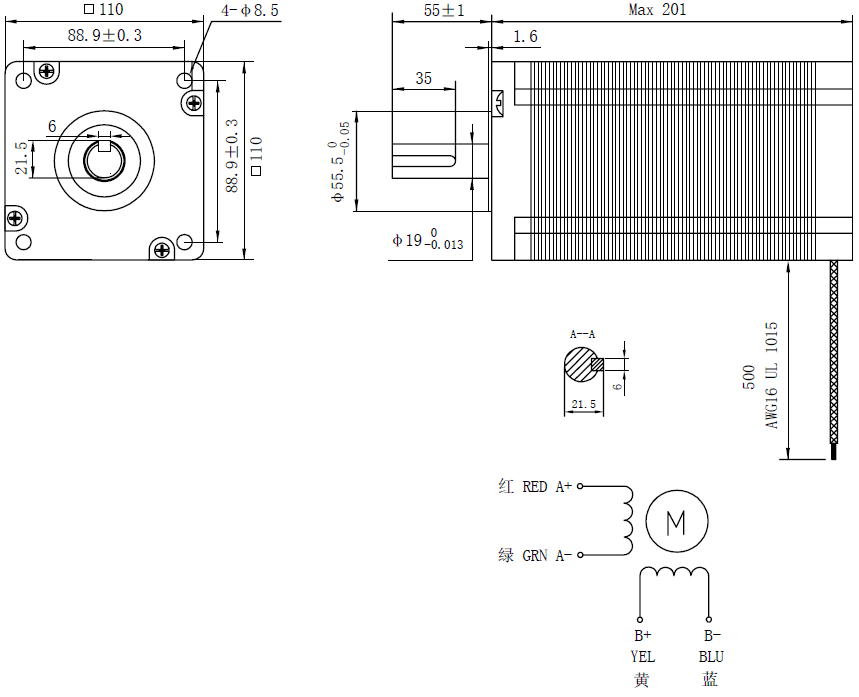

Physical Specification
- Frame Size: 110x110mm
- Body Length: 201mm
- Shaft Diameter: Φ19mm
- Shaft Length: 55mm
- keyway Shaft Length: 35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 12.5kg
Connection
- Red: A+, Green: A-, Yellow: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 110HS201-8004S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 30 |
| Holding Torque(oz.in) | 4260 |
| Rated Current(A) | 8.0 |
| Driving Voltage(VAC) | 110-220 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 201 |
| Output Shaft Type | keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 55 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 12.5 |
