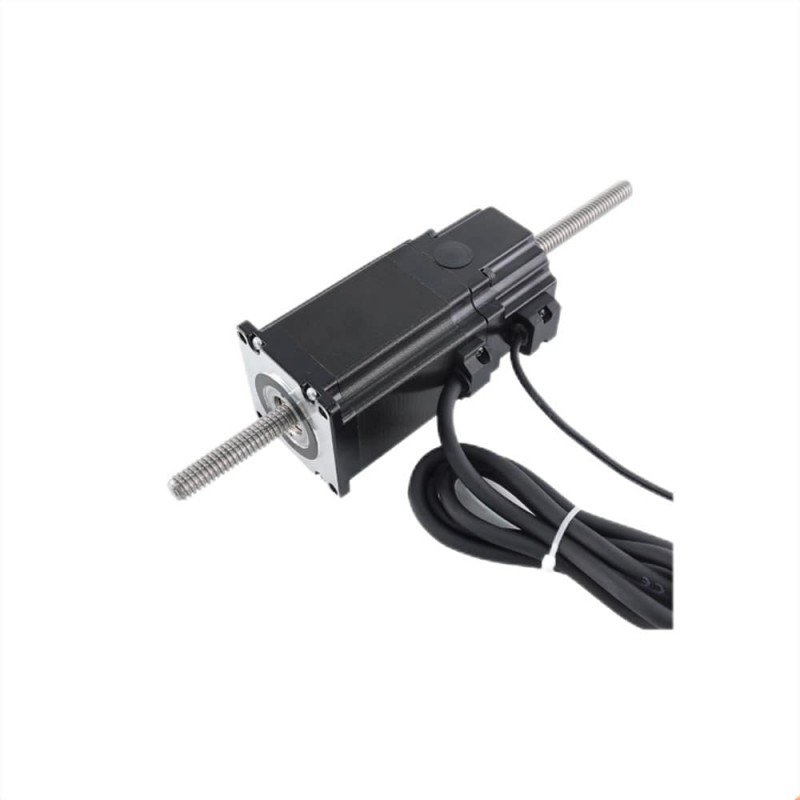

NEMA 34 Non-captive Linear Actuator Stepper Motor 115mm Stack 6A Lead 6.35mm with Electromagnetic Brake
- Part Number: 86LS115-6004NB-300L635YS
- Lead Time: In Stock
- Unit Price: $275.00
- Sales: 11
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is NEMA 34 Non-captive linear actuator with body part 115mm size 86 stepper motor. It is integrated with with a 15.875mm diameter 300mm length lead screw and the linear travel is 6.35mm per revolution & 0.03175mm per step. A 24V electromagnetic brake is installed for power-off function.
Electrical Specification
- Part Number: 86LS115-6004NB-300L635YS
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 8.5Nm/1207oz.in
- Rated Current/phase: 6.0A
- Driving Voltage: 24-110V

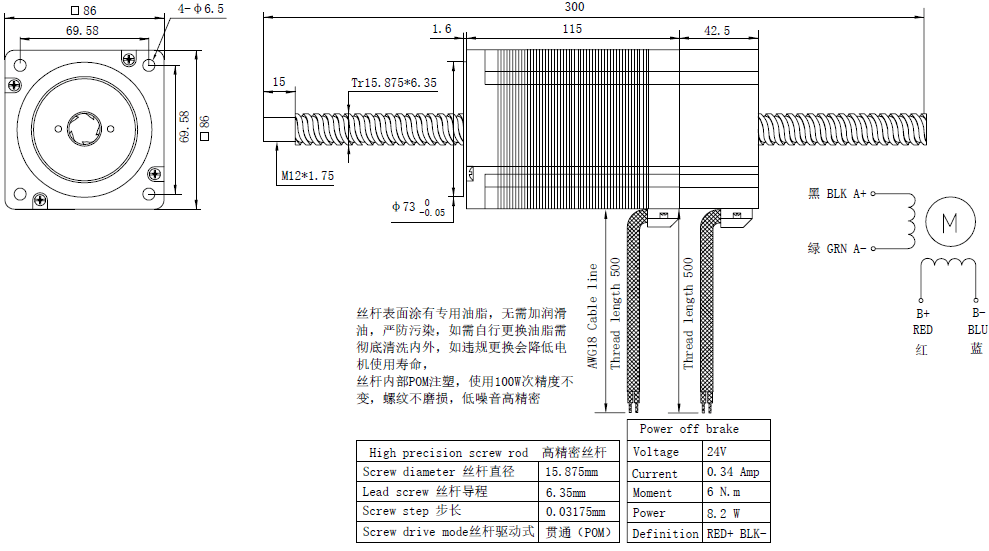

Physical Specification
- Frame Size: 86x86mm
- Body Length: 115mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ15.875mm
- Lead /Step: 0.03175mm
- Lead/Revolution: 6.35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 3.8kg
Brake Type: Electromagnetic
- Brake Voltage: 24VDC
- Brake Torque: 6.0Nm
- Number of Leads: 2
- Lead Length: 500mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 8.5 |
| Holding Torque(oz.in) | 1207 |
| Rated Current(A) | 6.0 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 115 |
| Driving Voltage(VDC) | 24-110 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
| Brake Torque(Nm) | 6 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 300 |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Travel/Revolution(mm) | 6.35 |
| Lead Travel/Step(mm) | 0.03175 |
