NEMA 34 CNC Stepper Motor Bipolar 6.0A 4.5Nm/639oz.in 86x78mm 1000mm Cable Φ14mm Short Keyway Shaft
- Part Number: 86HS78-6004S
- Lead Time: In Stock
- Unit Price: US $45.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 34 CNC stepper motor has 78mm body length with holding torque 4.5Nm/639oz.in. A length 32mm keyway shaft is available for this motor.
Electrical Specification
- Manufacturer Part Number: 86HS78-6004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 4.5Nm/639oz.in
- Current/phase: 6.0A
- Phase Resistance: 0.48ohms
- Inductance: 3.5mH
- Driving Voltage: 24-110V

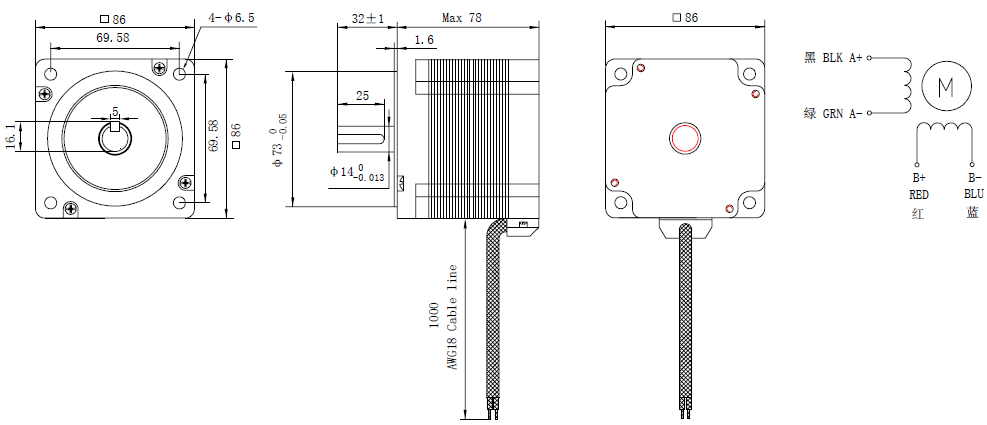

Physical Specification
- Frame Size: 86x86mm
- Body Length: 78mm
- Shaft Diameter: Φ14mm
- Shaft Length: 32mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 2.3kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HS78-6004S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Holding Torque(oz.in) | 639 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 78 |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 2.3 |
