NEMA 34 Closed-loop Ball Screw Linear Actuator Stepper Motor Stack 80mm Lead 5mm with 1000PPR Encoder
- Part Number: 86LS80-6004G-300L1605E
- Lead Time: In Stock
- Unit Price: US $169.00
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

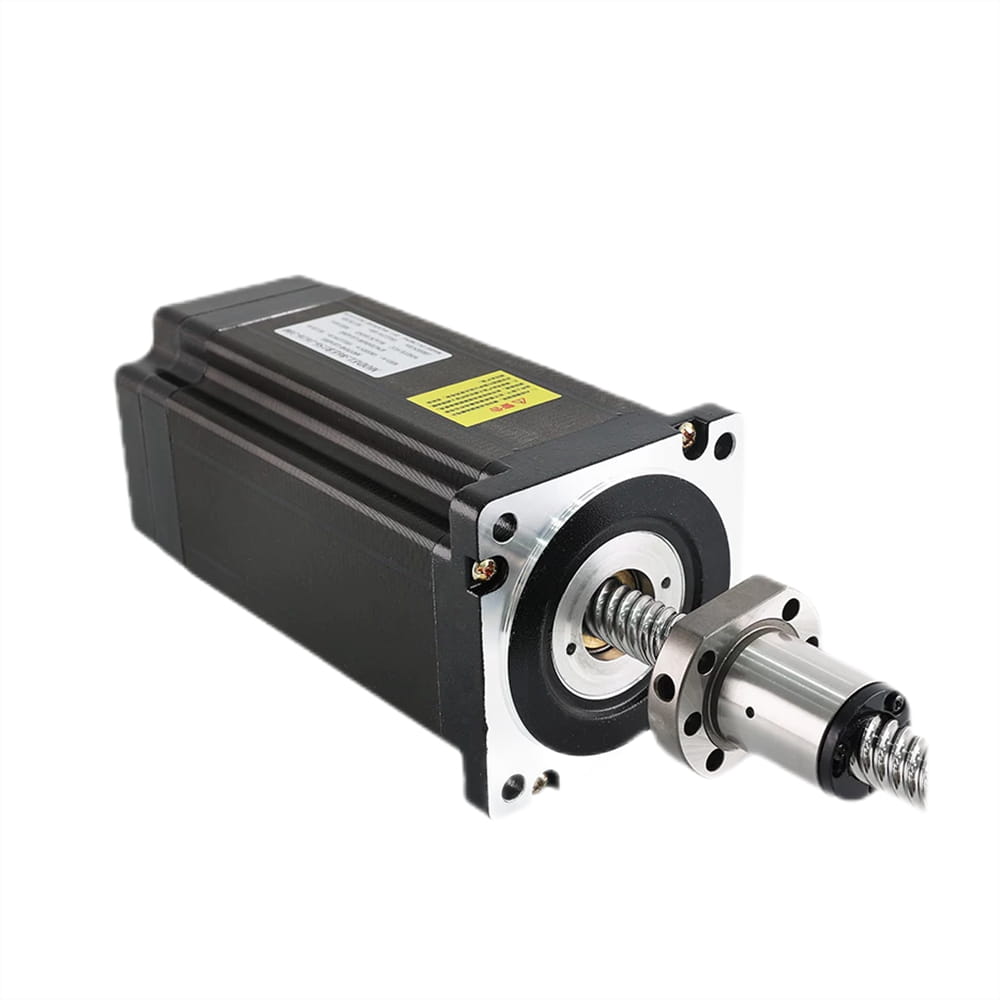

This big size 86 external linear actuator with body part 80mm NEMA 34 closed-loop stepper motor is integrated with a diameter Φ16mm ball screw length 300mm & a bacll screw nut. And the ball screw lead travel is 5mm per revolution/0.025mm per step. A 1000PPR incremental encoder is assembled for closed loop servo control.
Electrical Specification
- Manufacturer Part Number: 86LS80-6004G-300L1605E
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 4.0Nm/568oz.in
- Rated Current/phase: 6.0A
- Driving Voltage: 24-110V

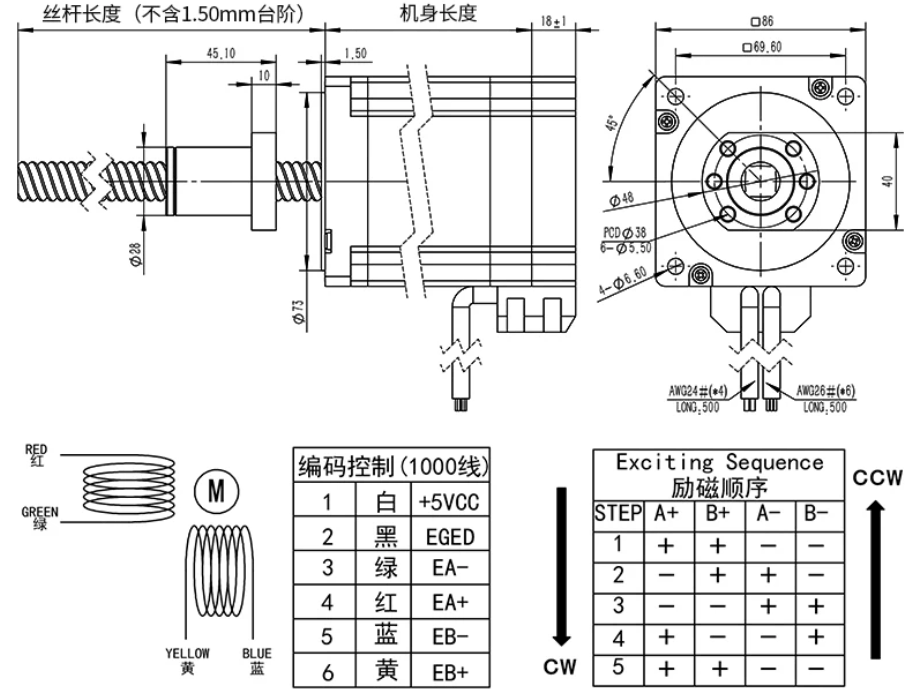

Physical Specification
- Frame Size: 86x86mm
- Body Length: 80mm
- Ball Screw Length: 300mm
- Ball Screw Diameter: Φ16mm
- Ball Screw/Step: 0.025mm
- Ball Screw/Revolution: 5mm
- Number of Leads: 4
- Lead Length: 500mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 500mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 86LS80-6004G-300L1605E |
| Product Type | External Ball Screw Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 6.0 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 80 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
| Ball Screw Specification | |
| Ball Screw Diameter(mm) | 16 |
| Ball Screw Travel/Revolution(mm) | 5 |
| Ball Screw Travel/Step(mm) | 0.025 |
| Ball Screw Length(mm) | 300 |
motor body length 80mm, ball screw length 300mm, can be customized.
