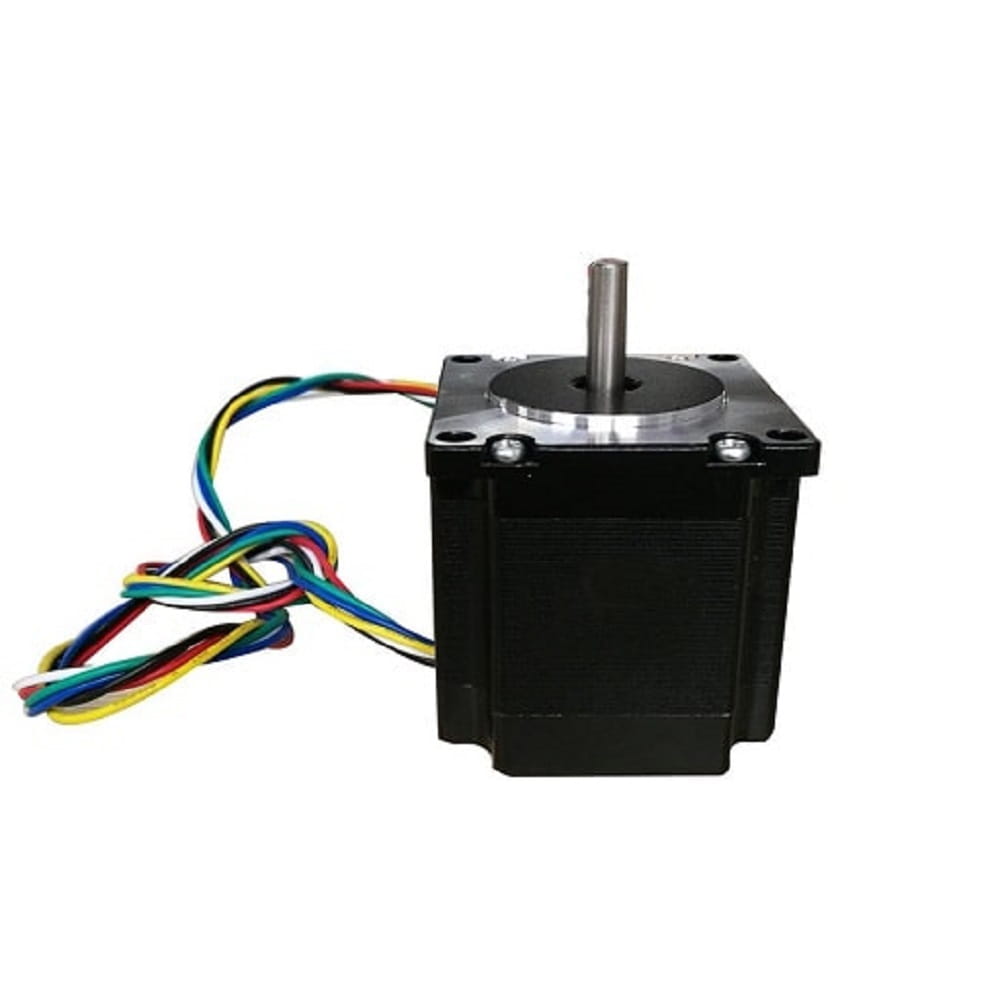

NEMA 23 Stepper Motor Unipolar 1.8deg 2.0A 0.9Nm 57x56mm 6 Wires
- Part Number: 57HS56-2006S
- Lead Time: In Stock
- Unit Price: US $15.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm electric engine is unipolar NEMA 23 stepper motor with step angle 1.8deg and body length 56mm. It has 6 wires, each phase draws 2.0A with holding torque 0.9Nm.
Electrical Specification
- Manufacturer Part Number: 57HS56-2006S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Unipolar
- Holding Torque: 0.9Nm/127.8oz.in
- Rated Current/phase: 2.0A
- Driving Voltage: 24-48V

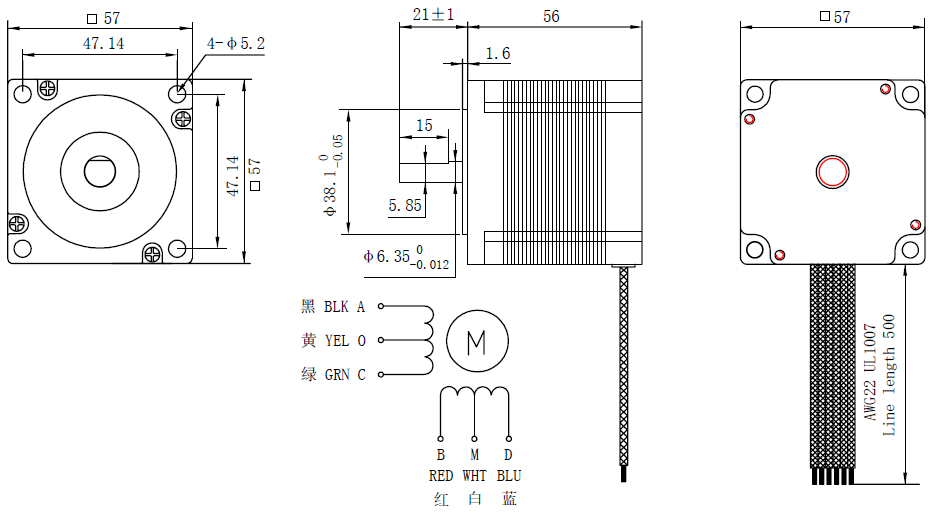

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 6
- Lead Length: 500mm
- Weight: 0.7kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-, Yellow: B+, White: B-
Contact Us
| Product Details | |
| Model Number | 57HS56-2006S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Unipolar |
| Holding Torque(Nm) | 0.9 |
| Rated Current(A) | 2.0 |
| Driving Voltage(VDC) | 24-48 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Leads | 6 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.7 |
