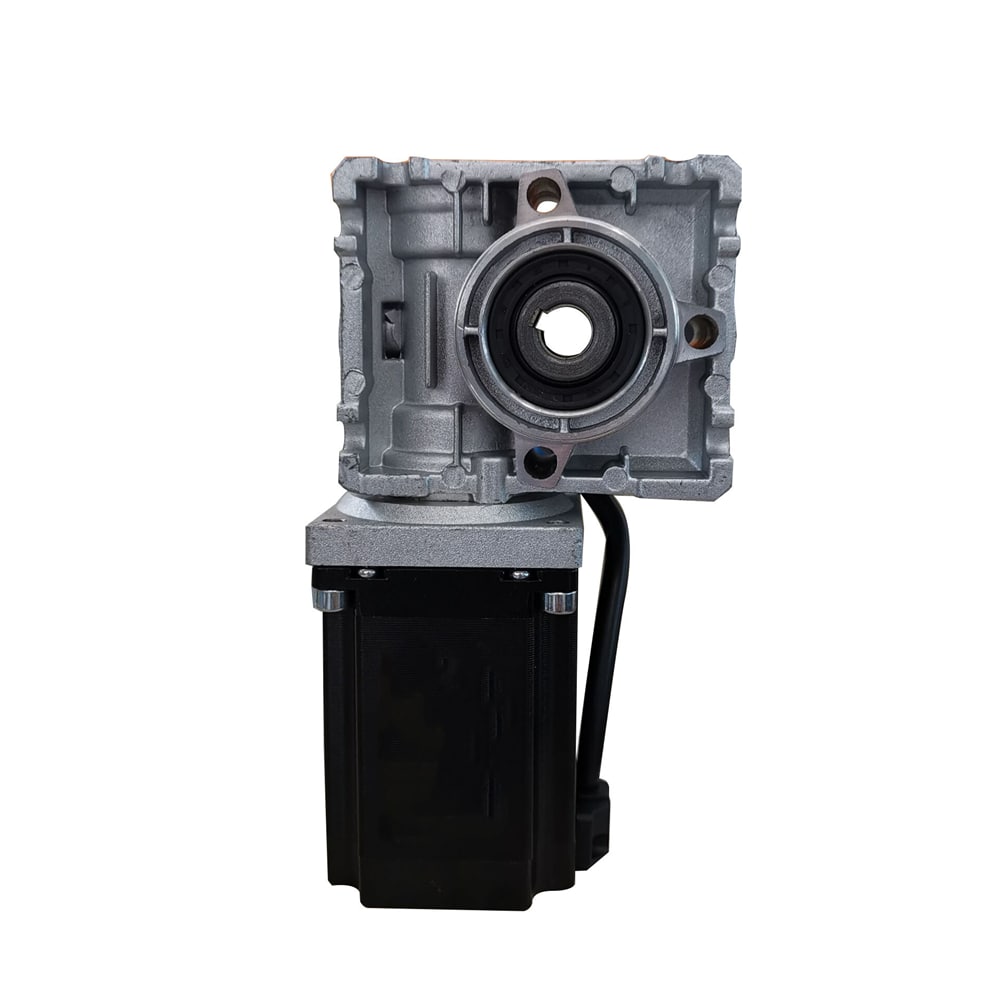

NEMA 23 Stepper Motor L=76mm 4.2A with Gear Ratio 50:1 RV25 Worm Gearbox
- Part Number: 57HS76-4204S-RV50
- Lead Time: One Week
- Unit Price: US $99.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NENA 23 stepper motor has 76mm body and 4.2A rated current, integrated with one worm reduction gearbox of 50:1 gear ratio. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Manufacturer Part Number: 57HS76-4204S-RV50
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.9Nm/269.8oz.in
- Rated Current/phase:4.2A
- Driving Voltage: 24-72V
- Frame Size: 57x57mm
- Motor Length: 76mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Worm
- Gear Ratio: 50:1
- Shaft Diameter: Φ11mm
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS76-4204S-RV50 |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.9 |
| Rated Current(A) | 4.2 |
| Driving Voltage(VDC) | 24-72 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Gearbox Specification | |
| Gearbox Type | Worm Gearbox |
| Gear Ratio | 50:1 |
| Output Shaft Diameter(mm) | 11 |
