NEMA 23 Stepper Motor L=76mm 3.0A with Gear Ratio 50:1 Dual Shaft Worm Gearbox
- Part Number: 57HS76-3004S-WB50
- Lead Time: In Stock
- Unit Price: US $65.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

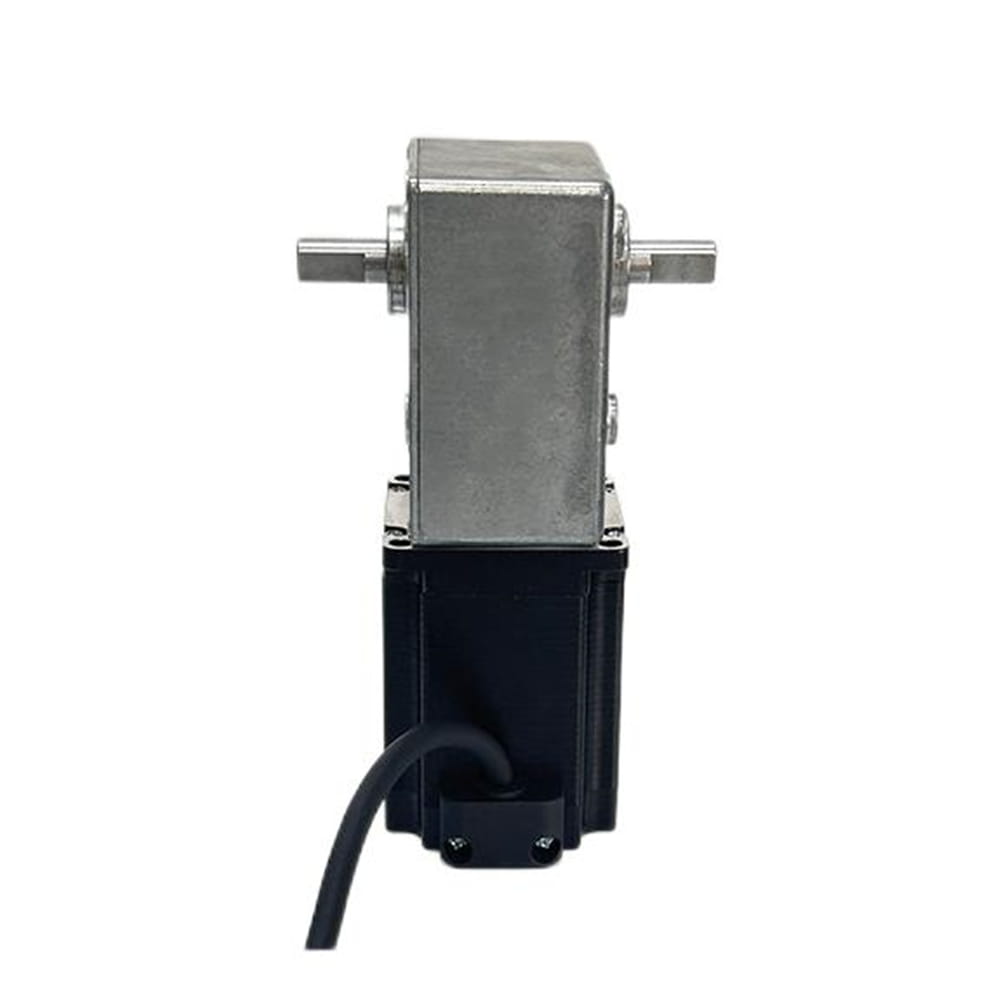

This size 57mm NENA 23 stepper motor has 67mm body and 3.0A rated current, integrated with a doube shaft output worm reduction gearbox of 50:1 gear ratio. It's an ideal solution to the applications that require limited space but low speed and high torque. The worm geared steper drive M542C can be used for controlling this motor.
Motor Specification
- Manufacturer Part Number: 57HS76-3004S-WB50
- Step Angle: 1.8deg without gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 2.0Nm without gearbox
- Rated Current/phase: 3.0A
- Driving Voltage: 24-48V
- Frame Size: 57x57mm
- Motor Length: 76mm
- Number of Leads: 4
- Lead Length: 1000mm
Gearbox Specification
- Gearbox Type: Worm
- Gear Ratio: 50:1
- Rated Torque: 18Nm
- Left Shaft Diameter: Φ10mm
- Left Shaft Length: Φ20mm
- Right Shaft Diameter: Φ10mm
- Right Shaft Length: Φ20mm
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS76-3004S-WB50 |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.0 |
| Rated Current(A) | 3.0 |
| Driving Voltage(VDC) | 24-48 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Gearbox Specification | |
| Gearbox Type | Worm Gearbox |
| Gear Ratio | 50:1 |
| Output Shaft Diameter(mm) | 10 |
| Output Shaft Length(mm) | 20 |
