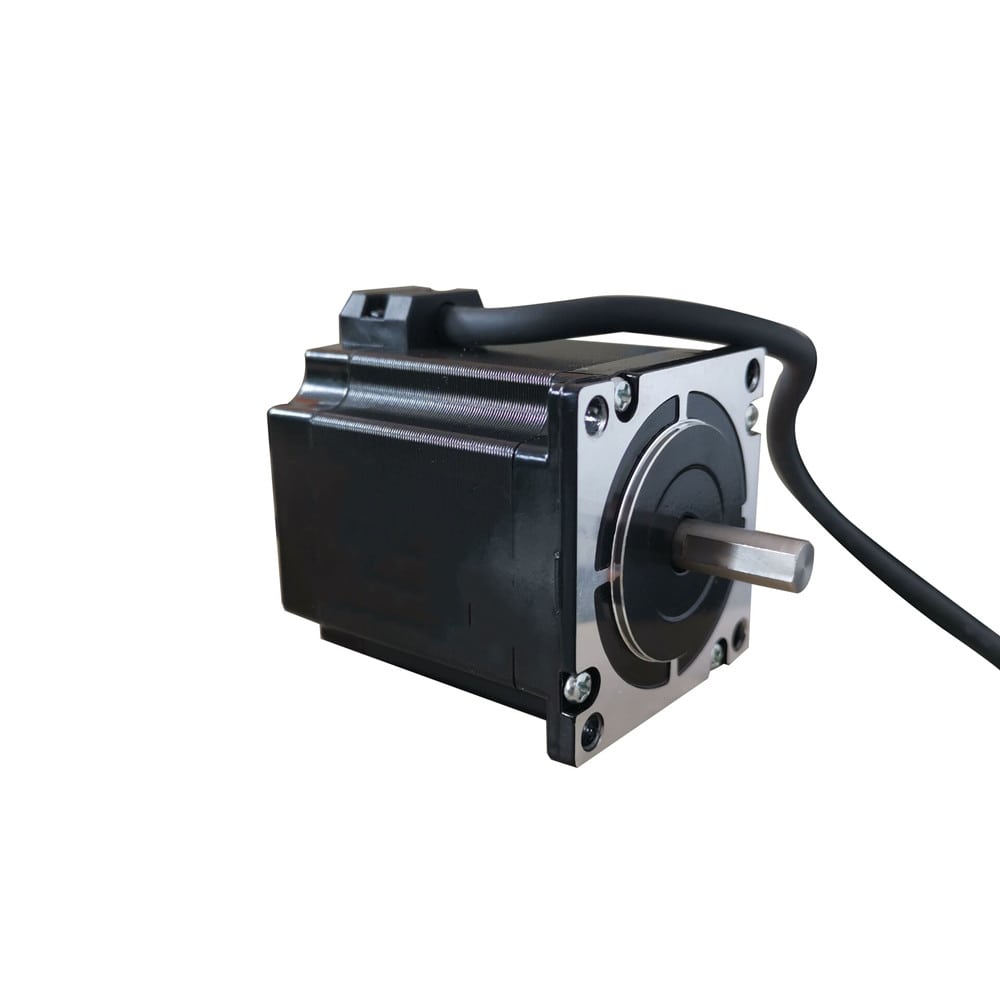

NEMA 23 Stepper Motor Bipolar 1.8deg 3.0A 1.5Nm/213oz.in 57x65mm 4 Wires
- Part Number: 57HS65-3004S
- Lead Time: In Stock
- Unit Price: US $18.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is one of the most popular NEMA 23 CNC stepper motor with 65mm body length. It has 4 wires, each phase draws 3.0A, with a good holding torque 1.5Nm/213oz.in, suitable for medecal device and CNC machines.
Electrical Specification
- Manufacturer Part Number: 57HS65-3004S
- Step Angle: 1.8deg
- ipolar/Unipolar: Bipolar
- Holding Torque: 1.5Nm/213oz.in
- Rated Current/phase: 2.8A
- Phase Resistance: 0.65ohms
- Inductance: 3.2mH
- Driving Voltage: 24-72V

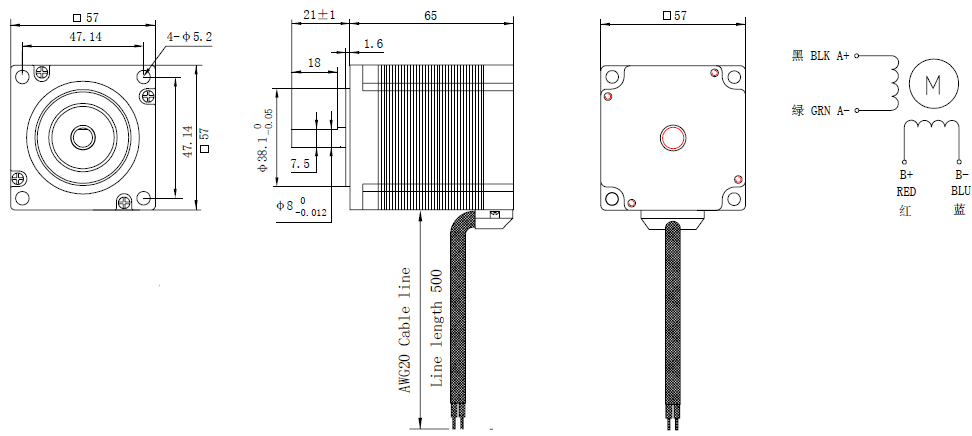

Physical Specification
- Frame Size: 57x57mm
- Body Length: 65mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.8kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS65-3004S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.5 |
| Holding Torque(oz.in) | 213 |
| Rated Current(A) | 3.0 |
| Driving Voltage(VDC) | 24-72 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 65 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.8 |
