NEMA 23 Stepper Motor Bipolar 1.8deg 0.9A 0.33Nm/46.86oz.in 57x25mm Φ6.35mm Shaft
- Part Number: 57HS25-0904S
- Lead Time: In Stock
- Unit Price: US $30.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This round NEMA 23 pancake stepper motors has one ultra thin body 25mm and 4 wires, each phase drawing 0.9A rated current with holding torque 0.33Nm/46.86oz.in.
Electrical Specification
- Manufacturer Part Number: 57HS25-0904S
- Step Angle: 1.8deg
- Bi/UnIpolar: Bipolar
- Holding Torque: 0.33m/46.86oz.in
- Rated Current/phase: 0.9A
- Phase Resistance: 3.4ohms
- Inductance: 4.5mH
- Driving Voltage: 12-72V

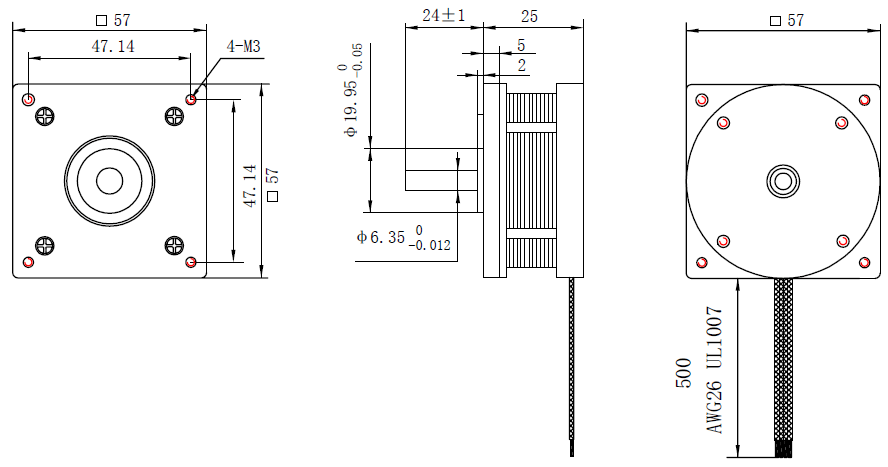

Physical Specification
- Frame Size: Φ57mm
- Body Length: 25mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 24mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.25kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS25-0904S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.33 |
| Holding Torque(oz.in) | 46.86 |
| Rated Current(A) | 0.9 |
| Driving Voltage(VDC) | 12-72 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | Φ57 |
| Body Length(mm) | 25 |
| Output Shaft Type | Round |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.25 |
