NEMA 23 Hollow Shaft Stepper Motor 2.0A 0.8Nm/113.6oz.in 57x45mm 4 Wires
- Part Number: 57HS45-2004H13
- Lead Time: In Stock
- Unit Price: US $40.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

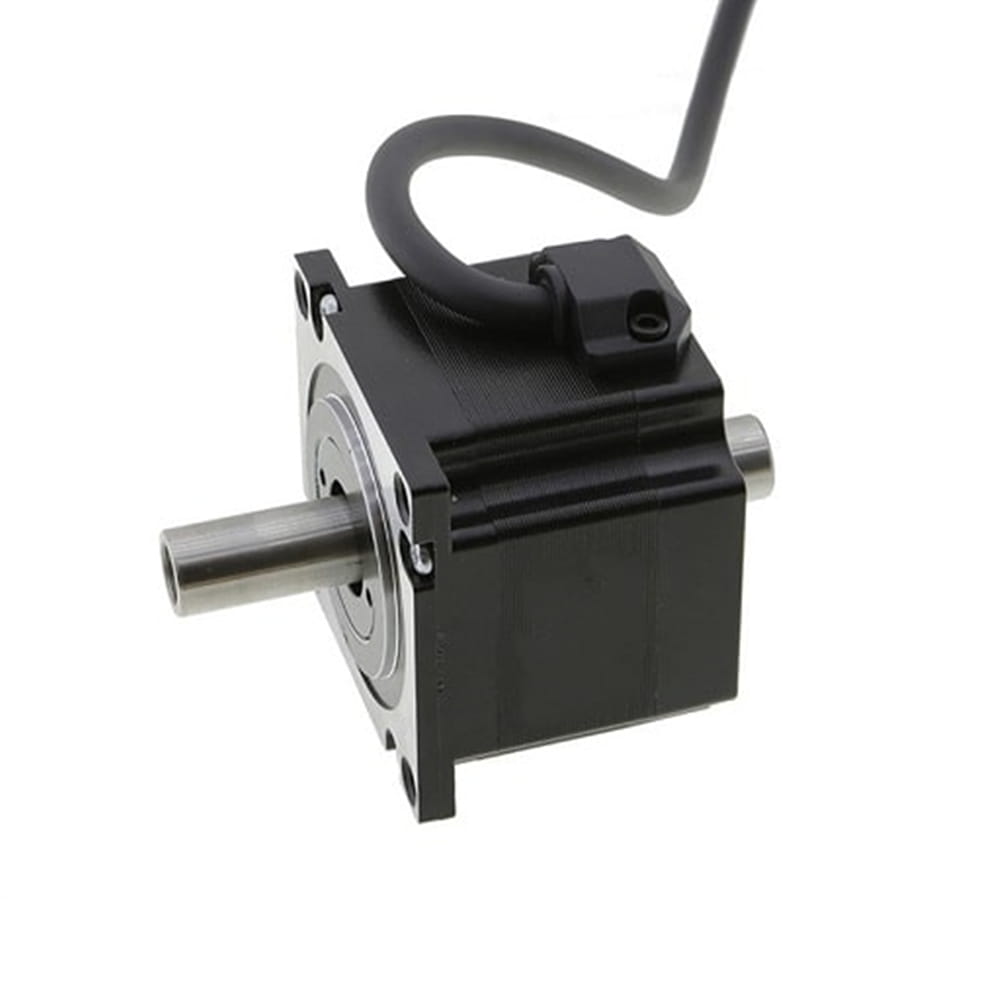

This big size 57mm NEMA 23 hollow shaft stepper motor has a body length 45mm with 2.0A rated current & holding torque 0.8Nm/113.6oz.in. A hollow shaft with outer diameter Φ12mm & inner diameter Φ8mm is available and also a double shaft with a front shaft length 25mm and rear shaft length 13mm is designed.
Electrical Specification
- Manufacturer Part Number: 57HS45-2004H13
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.78Nm(113.6oz.in)
- Rated Current/Phase: 2.0A
- Phase Resistance: 1.4ohms
- Inductance: 3.5mH
- Driving Voltage: 24-60V

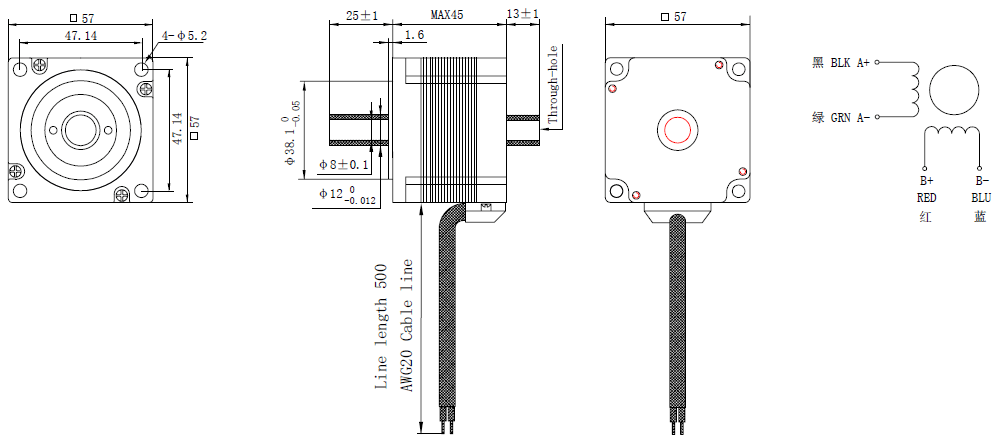

Physical Specification
- Frame Size: 57x57mm
- Body Length: 45mm
- Outer Shaft Diameter: Φ12mm
- Inner Shaft Diameter: Φ8mm
- Front Shaft Length: 25mm
- Rear Shaft Length: 13mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.55kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS45-2004H13 |
| Product Type | Hollow Shaft Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.8 |
| Rated Current(A) | 2.0 |
| Driving Voltage(VDC) | 24-60 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 45 |
| Inner Shaft Diameter(mm) | 8 |
| Outer Shaft Diameter(mm) | 12 |
| Front Shaft Length(mm) | 25 |
| Rear Shaft Length(mm) | 13 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
