NEMA 23 External Linear Actuator Stepper Motor 56mm Stack 2.8A Lead 8mm Dia. 8mm Screw Length 300mm
- Part Number: 57LS56-2804E-300L88
- Lead Time: Two Weeks
- Unit Price: US $49.90
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

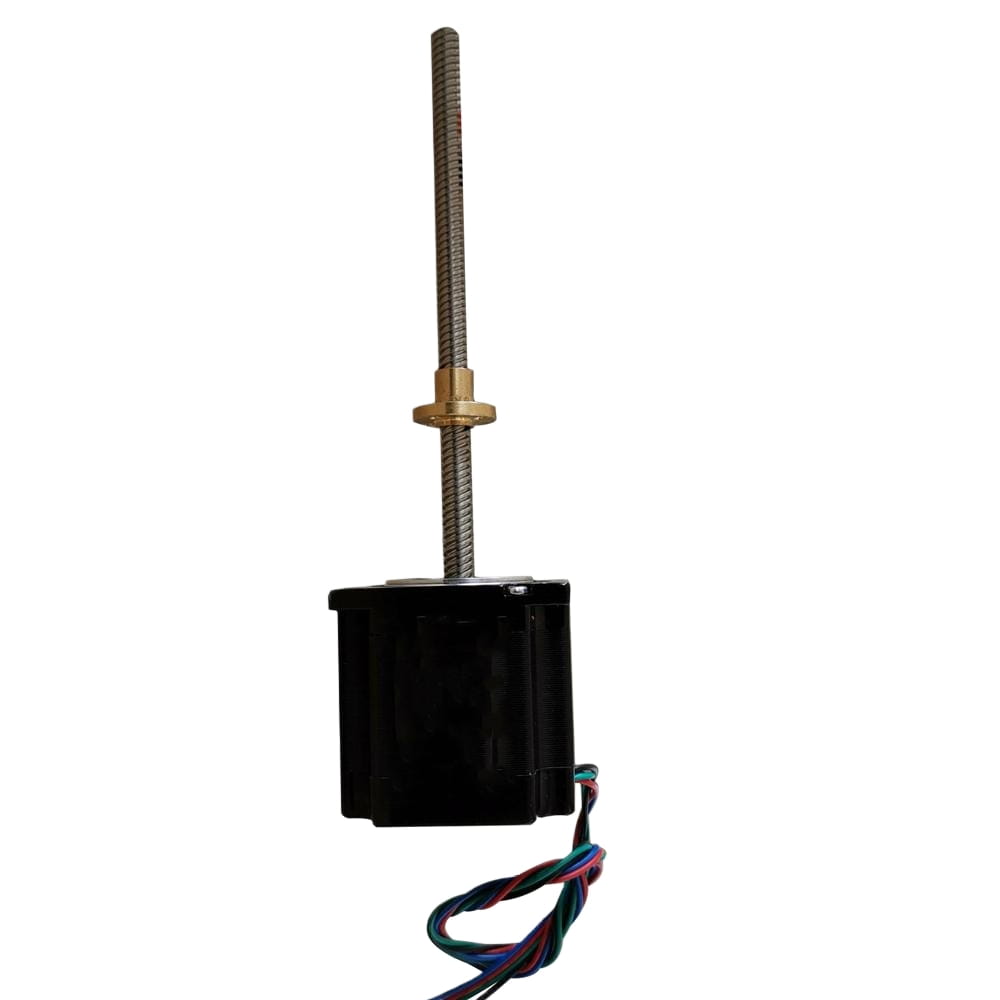

This size 57 External linear actuator with body part 56mm NEMA 23 stepper motor a diameter Φ8mm lead screw & a copper screw nut moving along the threaded rod. The lead travel is 8mm per revolution or 0.04mm per step.
Electrical Specification
- Manufacturer Part Number: 57LS56-2804E-300L88
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 2.8A
- Phase Resistance: 1.2ohms
- Inductance: 2.6mH
- Driving Voltage: 24-72V

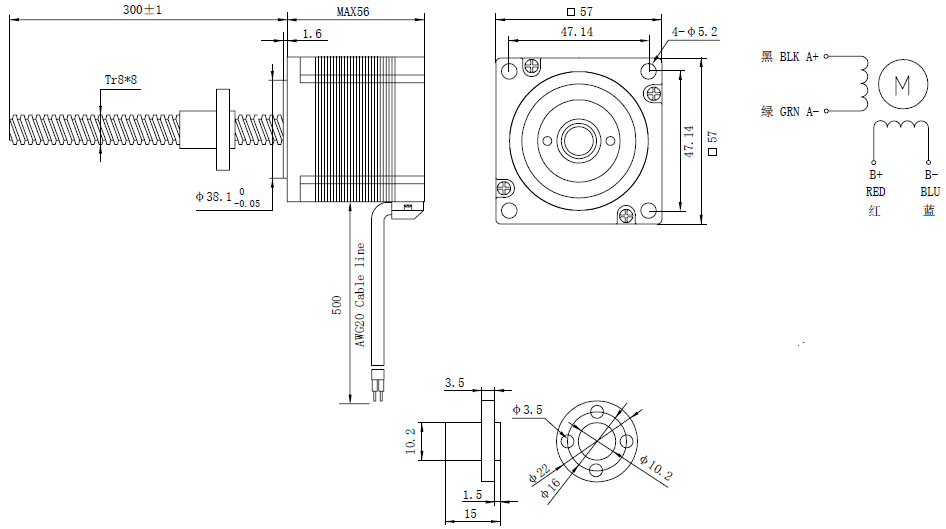

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ8mm
- Lead /Step: 0.04mm
- Lead/Revolution: 8mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.7kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57LS56-2804E-300L88 |
| Product Type | External Linear Stepper |
| Lead Time | Two Weeks |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Rated Current(A) | 2.8 |
| Driving Voltage(VDC) | 24-72 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 56 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 8 |
| Lead Travel/Step(mm) | 0.04 |
| Lead Screw Length(mm) | 300 |
