NEMA 23 External Linear Actuator Stepper Motor 56mm Stack 2.8A Lead 4mm Dia. 11mm Screw Length 200mm
- Part Number: 57LS56-2804E-200L114
- Lead Time: In Stock
- Unit Price: US $59.90
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

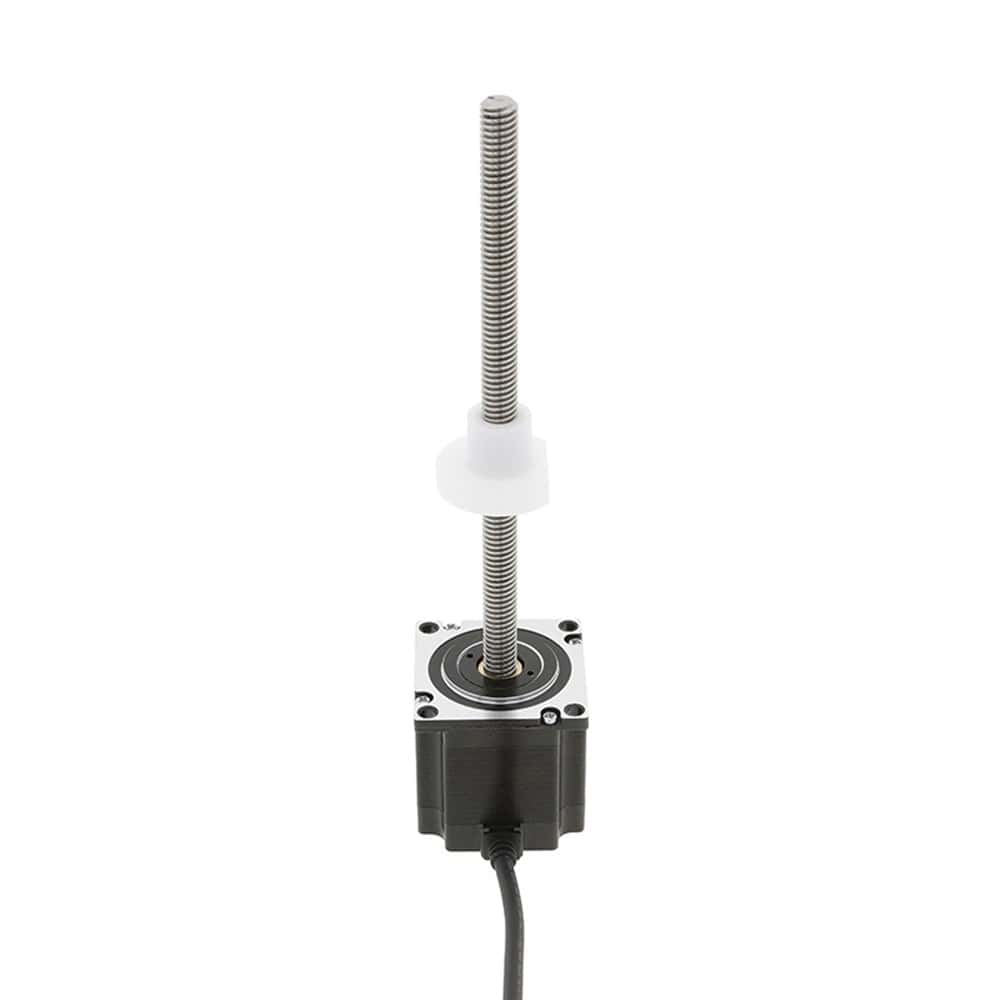

This size 57 External linear actuator with body part 56mm NEMA 23 stepper motor a diameter Φ11mm lead screw & a POM screw nut moving along the threaded rod. The lead travel is 4mm per revolution or 0.02mm per step.
Electrical Specification
- Manufacturer Part Number: 57LS56-2804E-200L114
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 2.8A
- Phase Resistance: 1.2ohms
- Inductance: 2.6mH
- Driving Voltage: 24-72V

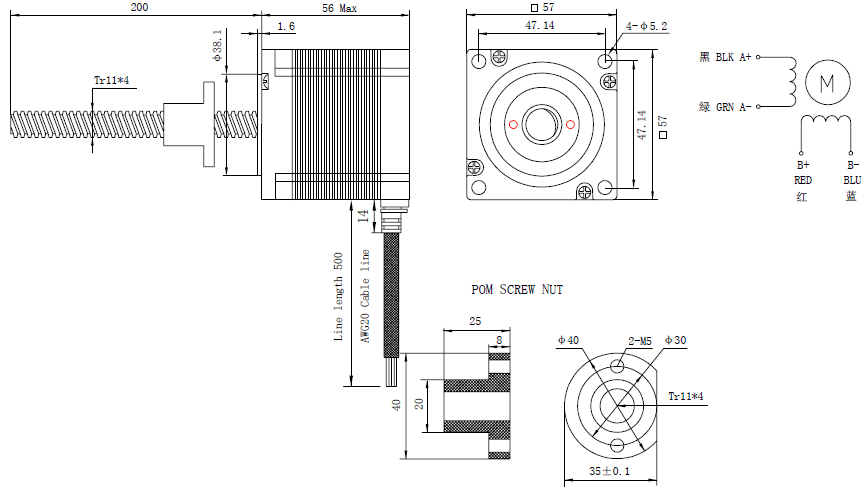

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ11mm
- Lead /Step: 0.02mm
- Lead/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.7kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57LS56-2804E-200L114 |
| Product Type | External Linear Stepper |
| Lead Time | Two Weeks |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Rated Current(A) | 2.8 |
| Driving Voltage(VDC) | 24-72 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 56 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
| Lead Screw Length(mm) | 200 |
