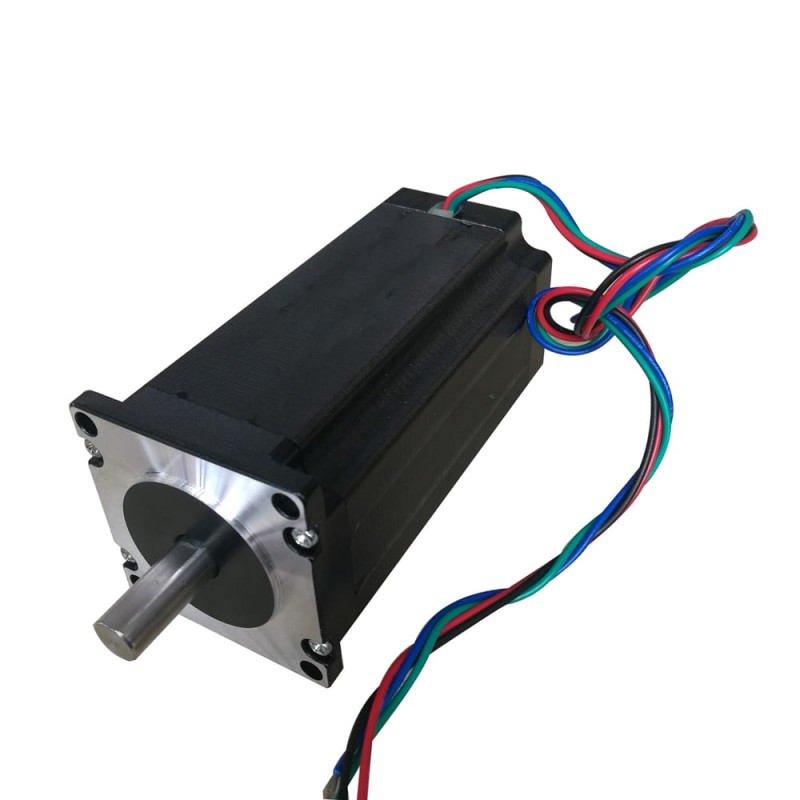

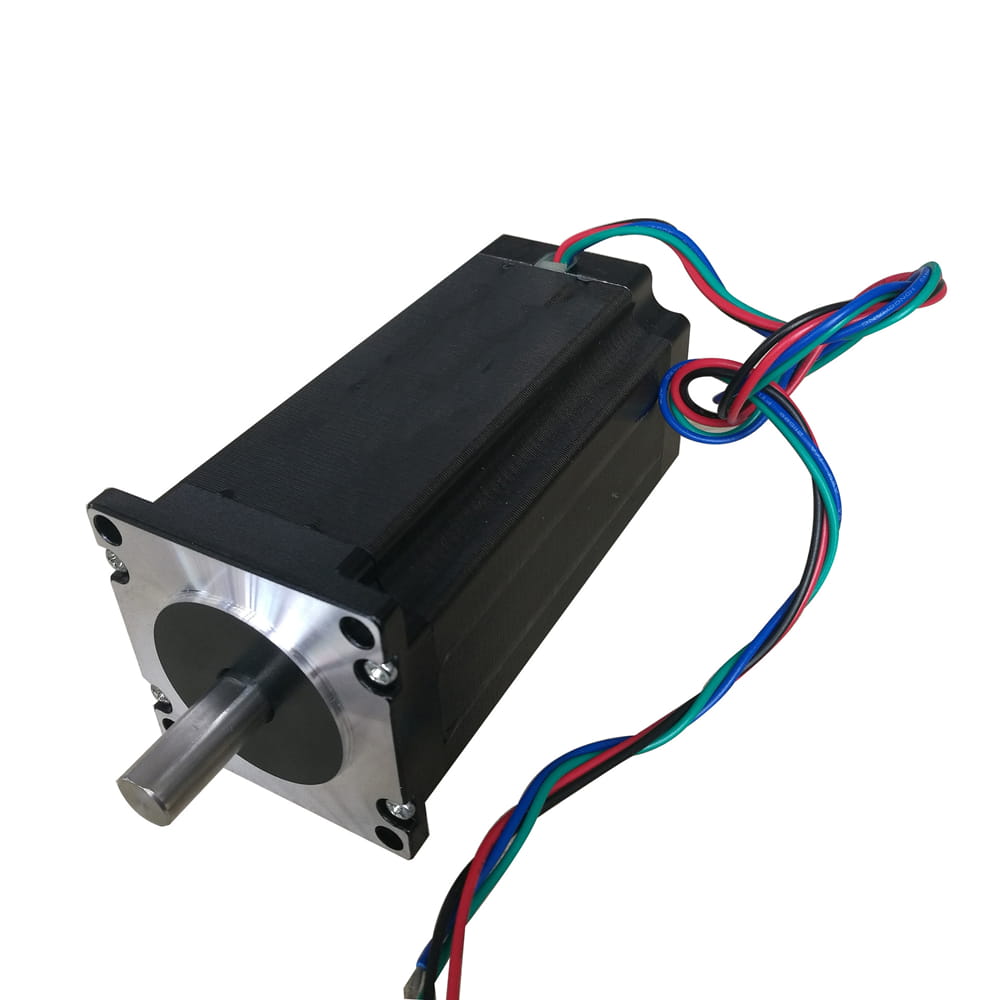

NEMA 23 CNC Stepper Motor Bipolar 1.8dg 4.2A 3.0Nm/426oz.in 57x112mm Φ10mm Shaft
- Part Number: 57HS112-4204D10
- Lead Time: In Stock
- Unit Price: US $35.00
- Sales: 45
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is the strongest bipolar NEMA 23 stepper motor with size 57x57x112mm. It has 4 wires, each phase draws 4.2A, with holding torque 3Nm/426oz.in. Please note the outout shaft diameter is 10mm.
Electrical Specification
- Manufacturer Part Number: 57HS112-4204D10
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 3Nm/426oz.in
- Rated Current/phase: 4.2A
- Phase Resistance: 0.9ohms
- Inductance: 3.8mH
- Driving Voltage: 24-72V

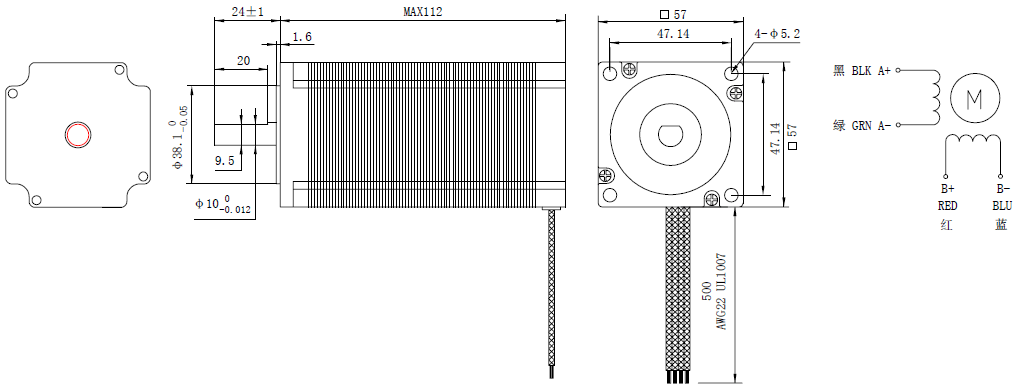

Physical Specification
- Frame Size: 57x57mm
- Body Length: 112mm
- Shaft Diameter: Φ10mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.6kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HS112-4204D10 |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 3 |
| Holding Torque(oz.in) | 426 |
| Rated Current(A) | 4.2 |
| Driving Voltage(VDC) | 24-72 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 112 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.6 |
