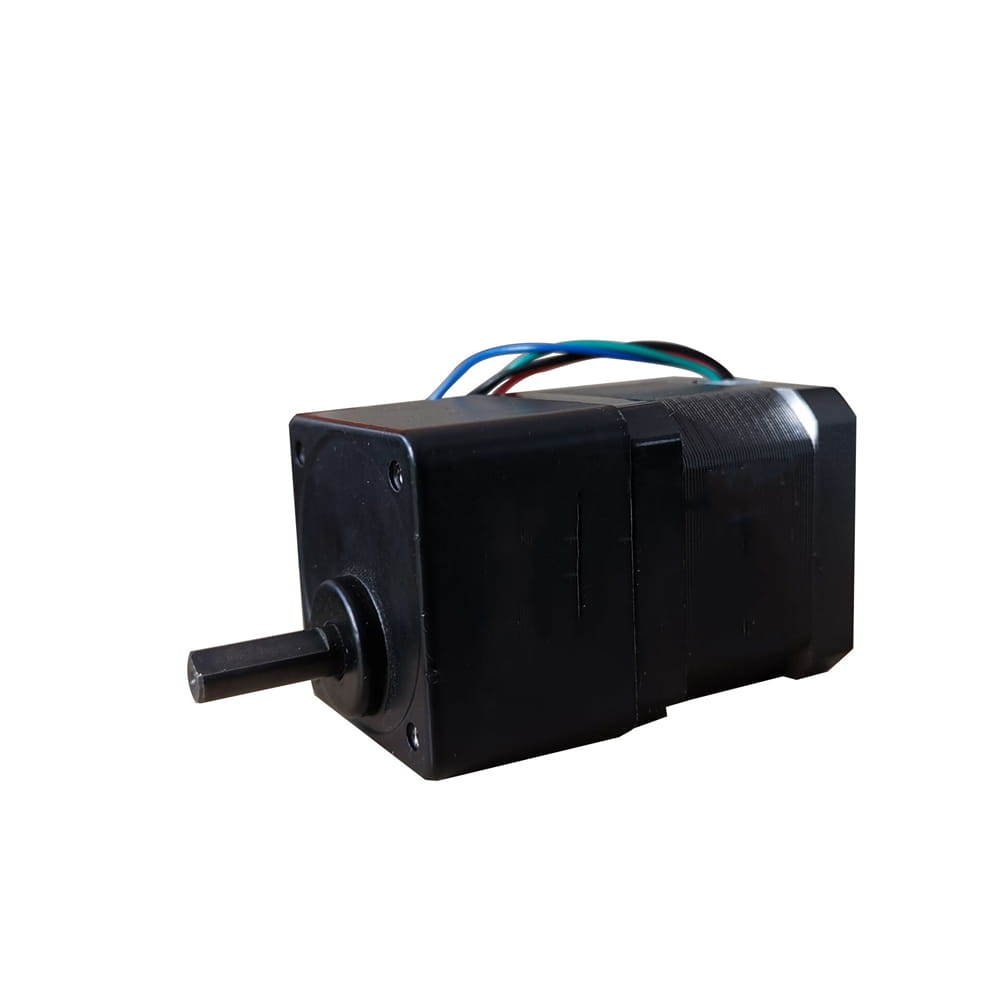

NEMA 17 Stepper Motor L=48mm 1.3A with Gear Ratio 18:1 Eccentric Spur Gearbox
- Part Number: 42HS48-1304S-PX18
- Lead Time: In Stock
- Unit Price: US $65.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This size 42mm NEMA 17 stepper motor has 48mm body and 1.3A rated current, integrated with an eccentric spur gearbox of gear ratio 18:1. It's an ideal solution to the applications that required limited space but low speed or high torque. The eccentric geared stepper drive M322C can be used for controlling this motor.
Motor Specification
- Manufacturer Part Number: 42HS48-1304S-PX18
- Step Angle: 1.8deg without gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 0.5Nm without gearbo
- Rated Current/phase: 1.3A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Motor Length: 48mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Spur
- Gear Ratio: 18:1
- Gearbox Length: 28.5mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 16mm
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42HS48-1304S-PX18 |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.5 |
| Rated Current(A) | 1.3 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Gearbox Specification | |
| Gearbox Type | Eccentric Gearbox |
| Gear Ratio | 18:1 |
| Gearbox Length(mm) | 28.5 |
| Output Shaft Diameter(mm) | 6.35 |
| Output Shaft Length(mm) | 21 |
