NEMA 17 Stepper Motor 0.45Nm 1.68A with Ratio 5.2:1 Economy Planetary Gearbox & 12-40VDC Drive
- Part Number: 42HS40-1684S-IO-PG5
- Lead Time: In Stock
- Unit Price: US $39.90
- Sales: 19
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
NEMA 17 Stepper Motor 0.45Nm 1.68A with Ratio 5.2:1 Economy Planetary Gearbox & 12-40VDC Drive
Motor Specification
- Manufacturer Part Number: 42HS40-1684S-IO-PG5
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.45Nm/63.9oz.in
- Rated Current/phase: 1.68A
- Frame Size: 42x42mm
- Motor Length: 40mm
Drive Specification
- Output Current: 0.2-2.2A
- Input Voltage: 12-40VDC
- Micro-step Resolutions: 200-25,600
- IO Speed Range: 30-720RPM
- Driver Length: 23mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 5.2:1
- Efficiency: 90%
- Backlash at No-load: <=1.0deg
- Gearbox Length: 29.2mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
Contact Us
| Product Details | |
| Model Number | 42HS40-1684S-IO-PG5 |
| Product Type | Stepper Drive Motor with Gearbox |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 40 |
| Gearbox Specification | |
| Gearbox Type | Economy Planetary |
| Gear Ratio | 5.2:1 |
| Gearbox Efficiency | 90% |
| Backlash at No-load | 1.0deg |
| Gearbox Length(mm) | 29.2 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 20 |
| Drive Specification | |
| Input Voltage(VDC) | 12-40 |
| Output Current(A) | 0.2-2.2 |
| Control Mode | Pulse |

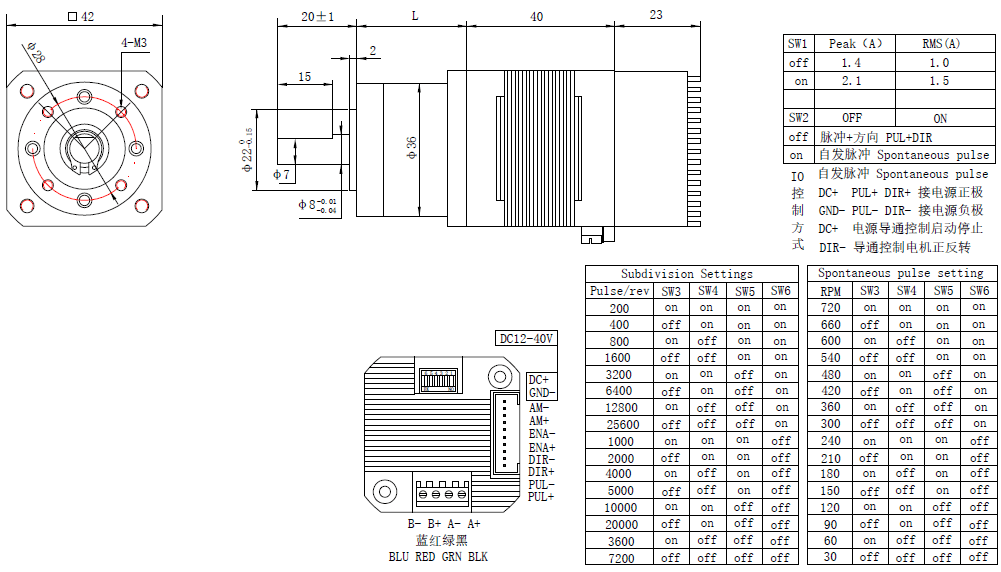

L=29.2mm
